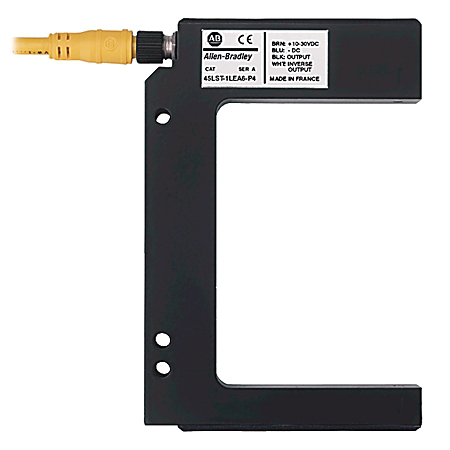

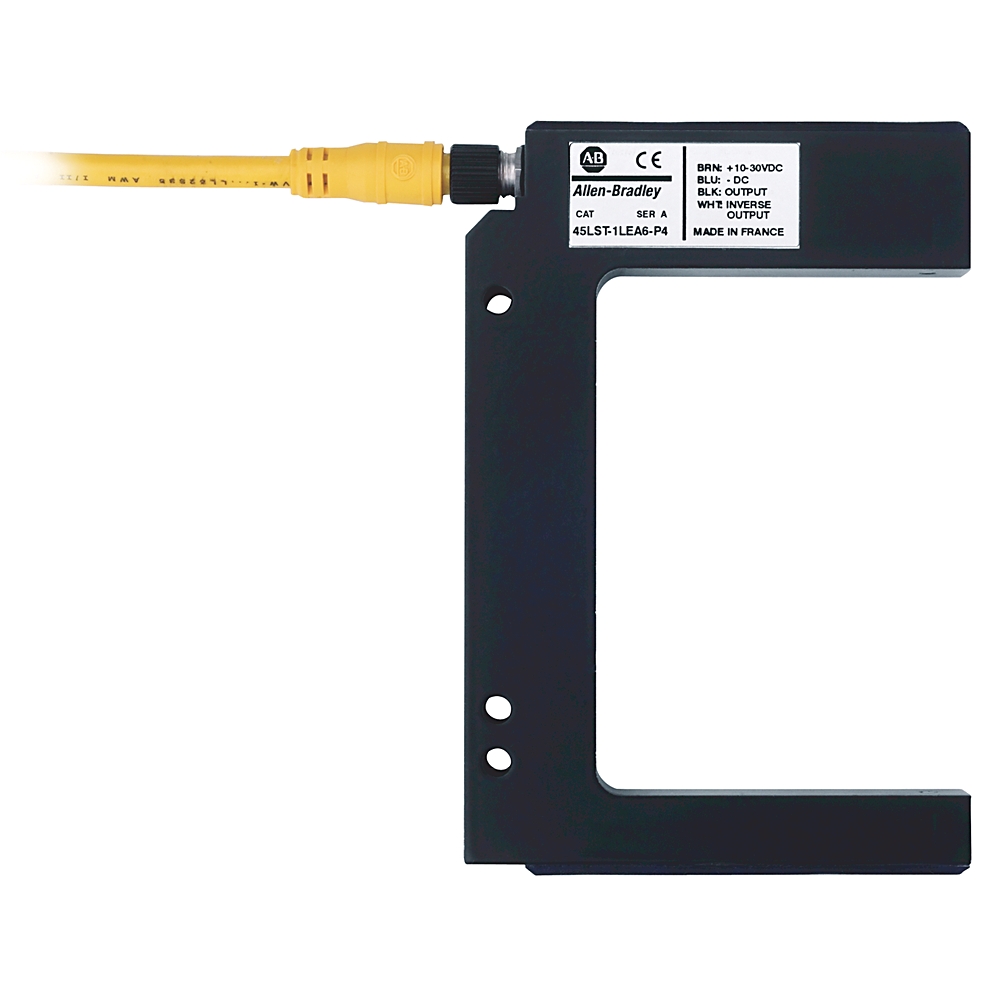

ROCKWELL AUTOMATION 45LST-1LEA4-P4
ROCKWELL AUTOMATION 45LST-1LEA4-P4
ROCKWELL AUTOMATION 45LST-1LEA4-P4
ROCKWELL AUTOMATIONNon disponibile

Fork Sensor, Side Through Hole, Transmitted Beam Pair, Infrared, 50.00 EA , Manually Adjustable, NPN - PNP Selectable Output, DC - LO or DO Selectable, 4 Pin Pico M8 Quick Disconnect

PHOTOSWITCH Photoelectric Sensor, 45LST Optical Fork Sensor, 50mm (1.96in)Sensing Gap, 4-pin Pico QD
Cod. Articolo: 45LST-1LEA4-P4
Cod. Fornitore: 45LST-1LEA4-P4
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Caratteristiche Tecniche
Frame opening lengthwise50 mm
Suitable for safety functionsNo
With reflectorNo
Width sensor80 mm
Height of sensor12 mm
Material housingMetal
Setting procedureManual adjustment
Construction type housingSpecial construction
Housing materialAnodized Aluminium
Response time1 ms
Degree of protection (IP)IP65
Vibration10...55 Hz, 1 mm amplitude, meets or exceeds IEC 600947-5-2
Shock30 g with 1 ms pulse duration, meets or exceeds IEC 600947-5-2
Light sourceNon-modulated (continuous) infrared
Number of protected semiconductor outputs1
Voltage typeDC
With time functionYes
Wavelength of the sensor880 nm
Max. output current100 mA
Type of switch functionOther
Type of switching outputPNP/NPN
Rated control supply voltage at DC10 V
Type of electric connectionConnector M8
Type of lightInfrared light
Sensing modeLight-/dark switching
Current consumption, max40 mA
Power ON delay129 ms
Sensitivity adjustment25-turn potentiometer
Protection typeShort circuit, reverse polarity, false pulse, overload
Leakage current12V supply: 0.78 mA @ 10 mA load, 6.9 mA @ 100 mA load, 24V supply: 0.30 mA @ 10 mA load, 3 mA @ 100 mA load
LED statusGreen LED: power ON/unblocked light path, Red & green LED blink: short circuit mode, Red LED: output energized
Operating temperature-20 °C
