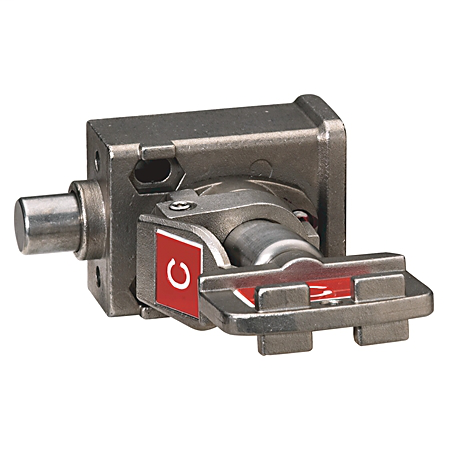

Trapped Key Interlock, Bolt Interlock Single Key, KeyTrapped, RetractBolt 0-14mm, Primary Code, 0G

Bolt Interlock - Single Key Mechanical, Standard Key Code Labeling, Key Trapped, Retracted: 0mm, Extended: 14mm

Cod. Articolo: 440T-MSBLE100G Copia - Copy

Cod. Fornitore: 440T-MSBLE100G Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Specifiche

Descrizione

Caratteristiche Tecniche

Type of accessory/spare part	Mechanical locking
Width	48.5 mm
Height	65.5 mm
Depth	27.4 mm
Type of switch	Bolt interlock, single key
Bolt diameter	15 mm
Operating temperature	-40 Ã°C
Key code 1 position 1	Code 1 position 1 - code 0
Key code 1 position 2	Code 1 position 2 - code G
Mounting	SBL: 2 x M5 counterbored from top or 2 x M5 from underside with M5 nuts
Key condition	Key trapped to retract bolt 0 mm retracted, 14 mm extended
Material	Faceplate: 316L Stainless Steel
Torque to key	14 Nm
Relative humidity	95 %
Shear force to key	15.1 kN
Mechanical life operations	200000

Specifiche

Specifications
Would you like help selecting codes?:No
Key Code 1 Position 1:Code 1 Position 1 - Code 0
Key Code 1 Position 2:Code 1 Position 2 - Code G
Note:Key codes must be different. Matching key codes will be removed when selected.
Bolt Interlock Data
Product Selection:Mechanical
Key Code Labeling:Standard Key Code Labeling
Key Type:Single Key
Trapped Condition:Key Trapped to Bolt Retract
Bolt Retracted:0mm
Bolt Extended:14mm (0.55in)
Code Data
Would you like help entering codes?:No

Descrizione

Trapped Key Interlock, Bolt Interlock Single Key, KeyTrapped, RetractBolt 0-14mm, Primary Code, 0G
