Safety Limit Switches, Large Metal IEC, Full Sw Head & Body, Spring Rod, 4 Circuits, Conduit Entry, Break Before Make, 2 Normally Closed Co ntacts, 2 Normally Open Contacts, Standard Contacts, -25C Low Temp Limit, 65C High Temp Limit, Spring Return, 1/2"

Name: Technology BSA
Address: IT

Safety Limit Switch, 30mm Metal, Spring Rod, 2 N.C., 2 N.O., BBM, 1/2 inch NPT Conduit

Cod. Articolo: 440P-MSRB22E Copia - Copy

Cod. Fornitore: 440P-MSRB22E Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Specifiche

Download

Caratteristiche Tecniche

Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
With status indication	No
Type of electric connection	Other
Utilization category	N600/DC-13
Switching current, min	5 mA @ 5V DC
Auxiliary contacts	1NO (with 2 NC)
Contact current rating (Ie)	6 A @ 120V AC (Ue)
Thermal current (Ith)	10 A
Actuation speed, min	100 mm/min
Actuation speed, max	250 mm/s
Rated impulse withstand voltage	2500 V
Actuation frequency, max	6000 ops/hr
Rated insulation voltage	600V AC
Suitable for safety functions	Yes
Forced opening	Yes
Degree of protection (NEMA)	1
Material housing	Metal
Degree of protection (IP)	IP66
Contact type	Break before make
Enclosure color	Red
Mounting	2 x M5, any position
Body style	30 mm large metal body
Width	40 mm
Height	211 mm
Actuator type	Spring rod
Mechanical life operations	10000000 operations per hour
Housing material	Die-cast alloy
Connection type	1/2 inch NPT conduit
Construction type housing	Cuboid
Depth	43 mm
Actuator material	Various polymers and metals
Operating temperature	-25 Ã°C
Safety contacts	1 NC snap acting, 2 NC, 3 NC or 4 NC slow acting
Pollution degree	3
Shock	IEC 60068-2-7 (30 Gn 3 pulses per axis)
Vibration	IEC 60068-2-6 (10...55 Hz, 0.35 mm amplitude)

Specifiche

Operator Type Selection
Body Style:30mm Large Metal Body
Operator Type:Spring Rod
Position Switch Data
Contacts (Safety/Auxiliary):2 N.C., 2 N.O.
Contact Type:Break Before Make
Connection Type:1/2 inch NPT Conduit

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

440p-in002_-en-p.pdf

Altri prodotti correlati

Di seguito alcuni articoli correlati a quello che stai vedendo

Safety Limit Switches, Large Metal IEC, Full Sw Head & Body, Roller Lever, 2 Circuits, Conduit Entry, Snap Acting, 1 Normally Open Contact , 1 Normally Closed Contact, Standard Contacts, -25C Low Temp Limit, 65C High Temp Limit, Spring Return, M20 Threa
Cod. Articolo: 440P-MSLS11B

Safety Limit Switch, 30mm Metal, Short Lever, 1 N.C., 1 N.O., Snap Acting, M20 Conduit

Scopri di più →

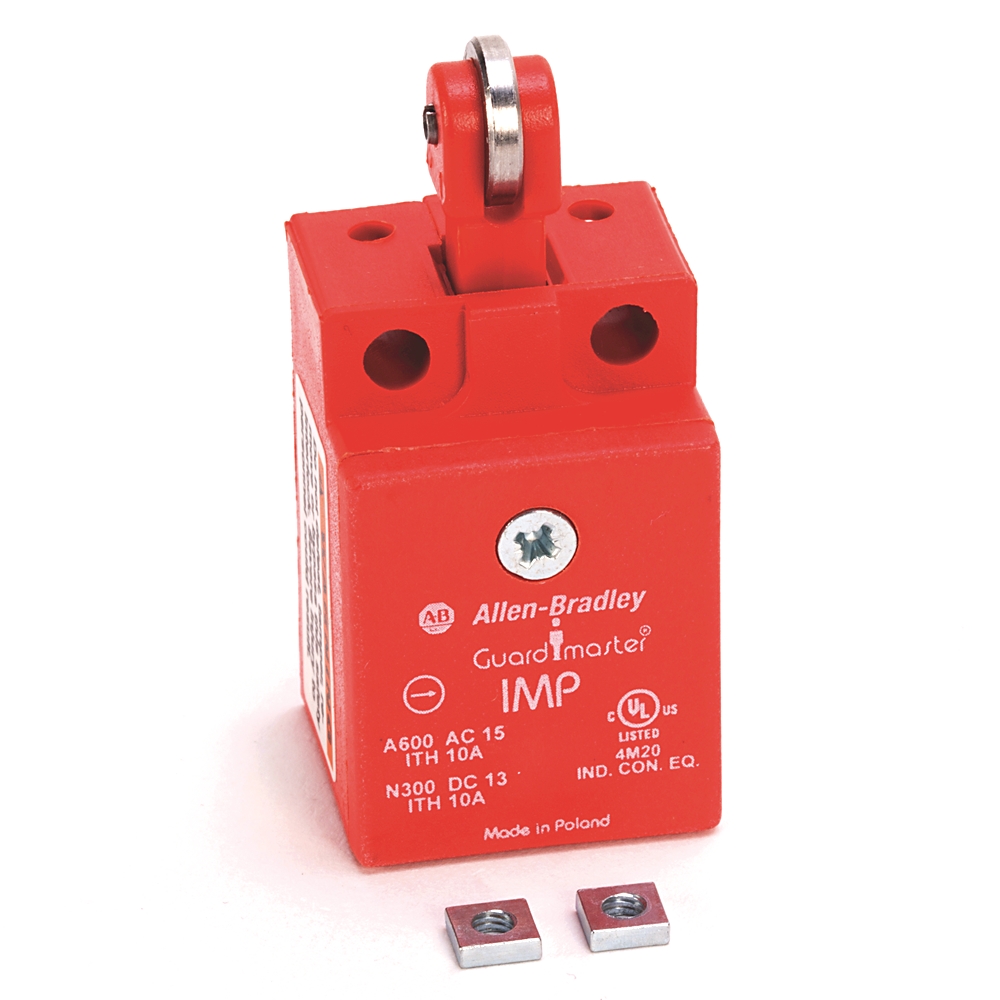

Safety Limit Switches, Miniature Plastic IEC, Full Sw Head & Body, Cross Roller Lever, 2 Circuits, Conduit Entry, Break Before Make, 1 Nor mally Open Contact, 1 Normally Closed Contact, Standard Contacts, -25C Low Temp Limit, 80C High Temp Limit, Spring
