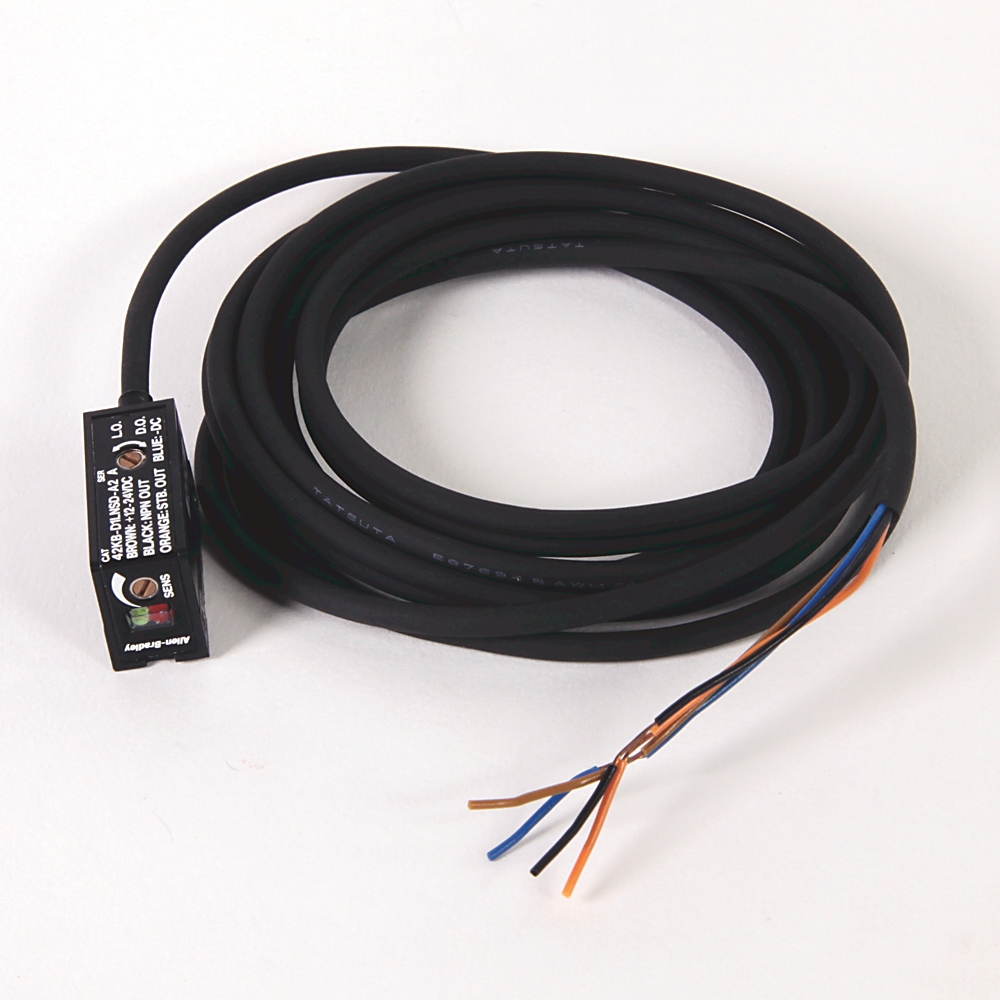

ROCKWELL AUTOMATION 42KB-D1LPEG-A2
ROCKWELL AUTOMATION 42KB-D1LPEG-A2
ROCKWELL AUTOMATIONNon disponibile

Micro Rectangular Sensor, Side Through Hole, Standard Diffuse, Infrared, 125.00 EA , Manually Adjustable, PNP, DC LO or DO Selectable, 2 m (6.5 ft) Cable, Plastic, End View, Side through hole, IP67, NEMA 6P

PHOTOSWITCH Photoelectric Sensor, Micro Rectangular, 200mm (7.9in), Standard Diffuse, Source (PNP), Infred, End View, 2m (6.5ft) cable
Cod. Articolo: 42KB-D1LPEG-A2
Cod. Fornitore: 42KB-D1LPEG-A2
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Degree of protection (NEMA)4
Degree of protection (IP)IP67
Max. switching distance400 mm
Width sensor10 mm
Height of sensor30 mm
Length of sensor15 mm
List of degrees of protection (NEMA)1, 4, 6, 12, 13
Setting procedureManual adjustment
Weight50 g
Wavelength of the sensor700 nm
Max. output current100 mA
Response time0.35 ms
Voltage typeDC
Rated control supply voltage at DC12 V
Type of switching outputPNP
Type of electric connectionCable
Sensing modeLight-/dark switching
Leakage current, max0.5 μA
Supply currentPNP: 25 mA
Operating voltage12...24V DC ±10%
Sensing typeStandard diffuse
Lens materialPolyarylate
Light sourceInfrared
Output typePNP
Optics positionEnd view
Connection type2 m cable
Sensitivity adjustmentPotentiometer
Protection typeReverse polarity, false pulse, transient noise
LED statusRed ON: Output activated (label: OUT)
Suitable for safety functionsNo
With time functionNo
Pre failure noticeNo
With communication interface analogueNo
With communication interface AS-InterfaceNo
With communication interface CANOpenNo
With communication interface DeviceNetNo
With communication interface EthernetNo
With communication interface INTERBUSNo
With communication interface PROFIBUSNo
With communication interface RS-232No
With communication interface RS-422No
With communication interface RS-485No
With communication interface SSDNo
With communication interface SSINo
With reflectorNo
Operating modeDC - light or dark operate selectable
Material housingPlastic
Construction type housingCuboid
Housing materialPolyarylate
Material of optical surfacePlastic
Material of cable sheathPolyvinyl chloride (PVC)
Ambient temperature-25 °F
Relative humidity, max85 %
Field of view20° @ 70 mm sensing distance, 2 m cable, 12° @ All others
