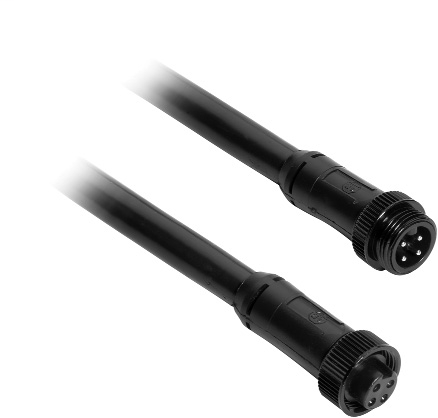

ArmorConnect 3-PH Power Media drop cable

Name: Technology BSA
Address: IT

280 ArmorConnect Three Phase Power Cordsets and Patchcords - Drop Cables, IP67, UL 4/12, NEMA 6P, PWRM22, Straight Male Cordset, 10 m (32.8 ft) , Cordset (Flying leads) , Straight Male

Cod. Articolo: 280-PWRM22G-M10 Copia - Copy

Cod. Fornitore: 280-PWRM22G-M10 Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Specifiche

Descrizione

Download

Caratteristiche Tecniche

DROP CABLE DATAEnclosure Type RatingIP67, UL 4/12, NEMA 6PCord TypePWRM22Female Connector StyleCordset (Flying leads)Male Connector StyleStraight MaleCable Length10 m (32.8 ft)NOTESPin Layout (Female End)Flying Lead Color Codes:Pin Layout (Male End)Pinout:

Specifiche

Specifications
Length:10 m (32.8 ft)
Drop Cable Data
Enclosure Type Rating:IP67, UL 4/12, NEMA 6P
Cord Type:PWRM22
Female Connector Style:Cordset (Flying leads)
Male Connector Style:Straight Male
Cable Length:10 m (32.8 ft)
Notes
Pin Layout (Female End):Flying Lead Color Codes:
Pin Layout (Male End):Pinout:

Descrizione

Power Cable, Drop Cordset Cable, Non-Shielded, M22, 16 AWG, Straight Male, 10 Meter, 4 Pin, 600 Volts, 10 Amp, 3 Phase, IP67- Type 4-12

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

280-um002_-en-p.pdf

280pwr-td001_-en-p.pdf
