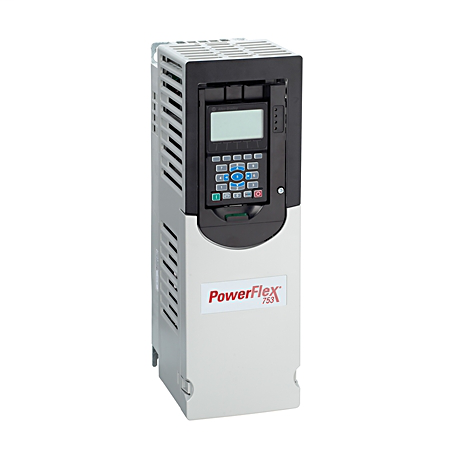

ROCKWELL AUTOMATION 20F1ANF263JA0NNNNN
ROCKWELL AUTOMATION 20F1ANF263JA0NNNNN
ROCKWELL AUTOMATIONNon disponibile

753 AC Packaged Drive, Air Cooled, Open Type, 690 VAC, 3 PH, 263 Amps, 250KW ND, 200KW HD, AC In w/Prchg, no DC Terminals, Frame 7, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM), No Option, No Option, No Option, No Option, No Option, Ca

PowerFlex 753 AC Drive, with Embedded I/O, Standard Protection, Forced Air, AC Input with Precharge, no DC Terminals, Open Type, 263 Amps, 250KW ND, 200KW HD, 690 VAC, 3 PH, Frame 7, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
Cod. Articolo: 20F1ANF263JA0NNNNN
Cod. Fornitore: 20F1ANF263JA0NNNNN
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
Product TypeMiscellaneous Hardware and CablesCatalog NumberSK-R1-PC1DescriptionPF750 Power Interface Cable, Frames 1-7Quantity1
Specifiche
Specifications
Special Features:PowerFlex 753 AC Drive, with Embedded I/O
Voltage Rating:690 VAC, 3 PH
Enclosure:Open Type
Base Drive Information
Bulletin Number:PowerFlex 753 AC Drive, with Embedded I/O
Voltage Class:690 VAC, 3 PH
Output Current:263 Amps, 250KW ND, 200KW HD
Enclosure Type:Open Type
Input Type:AC Input with Precharge, no DC Terminals
Frame Size:Frame 7
EMC Filtering Options:Filtered, CM Jumper Installed
Dynamic Braking:DB Transistor
HIM:Blank (No HIM)
Descrizione
753 AC Drive, Air Cooled, Open Type, 690 VAC, 3 PH, 263 A 250 kW ND 200 kW HD, AC In w/Prchg, no DC Terminals, Frame 7, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM), No Option, No Option, No Option, No Option, No Option, Carton & Documents
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

750-in001_-en-p.pdf

750-td100_-en-p.pdf
