ROCKWELL AUTOMATION 20DM590N0ENNBNCNK
ROCKWELL AUTOMATION 20DM590N0ENNBNCNK
ROCKWELL AUTOMATIONNon disponibile

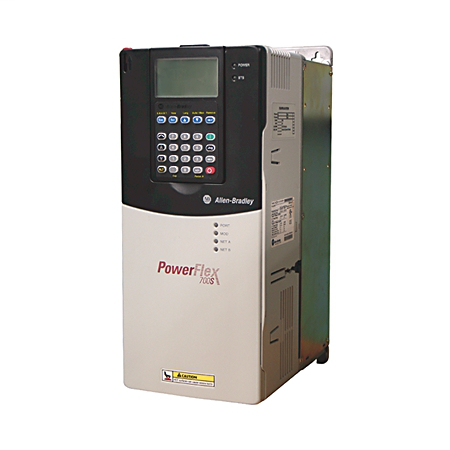

PowerFlex700S AC Drive, 932 VDC, No Pre-Charge, 590 Amps, 560kW Normal Duty, 500kW Heavy Duty, IP00 / Open Type, with conformal coating, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, Common Mode Choke Removed, Second Environme

PowerFlex700S AC Drive, 932 VDC, No Pre-Charge, 590 Amps, 560kW Normal Duty, 500kW Heavy Duty, IP00 / Open Type, with conformal coating, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, Common Mode Choke Removed, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Phase II control with Logix expansion board, Expanded cassette, Standard (Incremental Encoder), Phase II, 5730 DriveLogix, no embedded comm
Cod. Articolo: 20DM590N0ENNBNCNK
Cod. Fornitore: 20DM590N0ENNBNCNK
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Specifiche
Specifiche
Base Drive Information
Input Voltage:932 VDC, No Pre-Charge
Output Current:590 Amps
Enclosure:IP00 / Open Type, with conformal coating
Frame Size:Frame Size 11
Brake IGBT:No Brake IGBT
Brake Resistor:Without Drive Mounted Brake Resistor
EMC Filtering Options:Common Mode Choke Removed, Second Environment Filter per CE EMC directive (89/336/EEC)
Phase II, Control Options:Phase II control with Logix expansion board, Expanded cassette
Feedback Option:Standard (Incremental Encoder)
Additional Configurations:Phase II, 5730 DriveLogix, no embedded comm
Firmware:Standard
Options
Base Plus Options:Factory Assembled
Human Interface Module:No HIM (Blank Plate)
Internal Communication Module:No Communication Module
