ROCKWELL AUTOMATION 20DE011A0EYNANANE
ROCKWELL AUTOMATION 20DE011A0EYNANANE
ROCKWELL AUTOMATION 20DE011A0EYNANANE
ROCKWELL AUTOMATION 20DE011A0EYNANANE
ROCKWELL AUTOMATIONNon disponibile

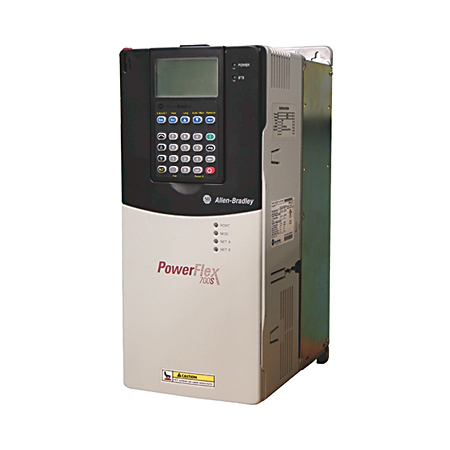

PowerFlex 700S AC Drive 20D

Cod. Articolo: 20DE011A0EYNANANE
Cod. Fornitore: 20DE011A0EYNANANE
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
Features
User function library provides logic functions without a PLC
SynchLink™ fiber optic link for a high level of drive coordination and data transfer
Zero Stacking™ Drives or side-by-side mounting conserves panel space and reduces installation costs
Common bus capability
Optimized global voltage settings allow quick setup anywhere in the world
AC or DC common bus configurations for stand-alone or multiple drive solutions
Pull-apart control terminal blocks allow for easy wiring and quick disconnect
IP20 NEMA/UL Type 1 and IP21 NEMA/UL Type 1
V/Hz control, Vector Control with FORCE™ Technology, and Permanent Magnet Motor Control
Power Ratings
Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
Configuration and programming via optional integral LCD keypad, remote keypad, or software
Specifiche
Specifications
Voltage Rating:600 VAC, 3 PH
Base Drive Information
Input Voltage:600 VAC, 3 PH
Output Current:11 Amps
Enclosure:IP20 / Type 1, with conformal coating
Frame Size:Frame Size 1
Brake IGBT:Brake IGBT Installed
Brake Resistor:Without Drive Mounted Brake Resistor
EMC Filtering Options:Second Environment Filter per CE EMC directive (89/336/EEC)
Phase II, Control Options:Phase II control, Expanded cassette
Feedback Option:Standard (Incremental Encoder)
Additional Configurations:Phase II, No DriveLogix, no embedded comm
Firmware:Standard
Options
Base Plus Options:Base Plus Options Method
Internal Communication Module:No Communication Module
