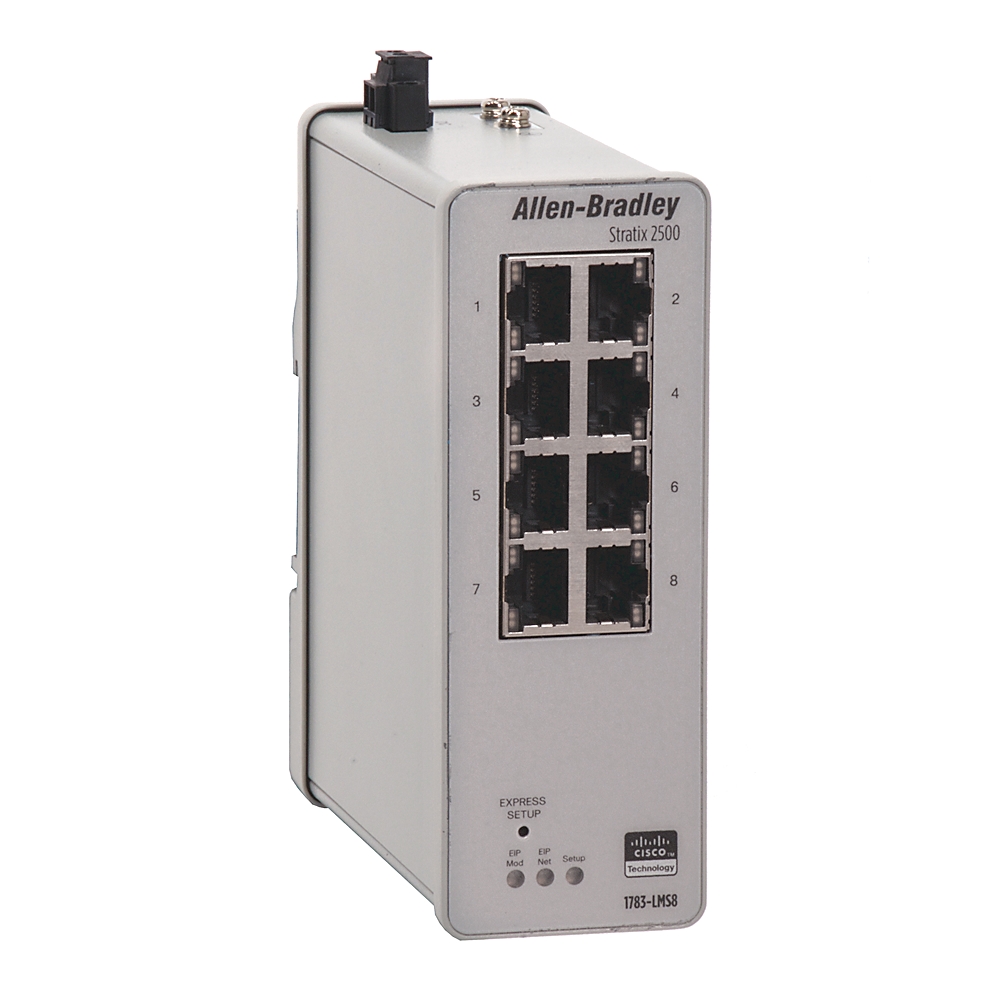

1783-LMS8 ROCKWELL AUTOMATION

Width	45.7 cm
Height	144.8 cm
Depth	115 cm
Torque, functional ground lug screw	0.51 Nm
Torque, power terminal screw	0.19 Nm
Number of ports 10/100 Mbps RJ45	8
Layer 2	No
Layer 3	No
Manageable	Yes
Pulse (digital) output	5.3 W
Power dissipation	5.3 W
Power Input	12 - 24V DC, 0.4 - 0.2 A (SELV)
Total number of ports	8
Wire size, ethernet connection	RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702
Ethernet	Yes
Wire size, DC power connection, solid or stranded copper wire rated at 30 Ã°C, or greater, above the surrounding air temperature	0.82 mmÃ²
Wire size, ground connection, solid or stranded copper wire	3.3 mmÃ²
Wiring category on communication ports	2
Wiring category on power ports	2
Degree of protection (IP)	IP30
Housing base material	Open-style
Nominal position	T4
Delta connected motor power, max	T4
Temperature, surrounding air, maximum	60 Ã°C
EFT/B immunity for IEC 61000-4-4 at 100 kHz on DC power ports	Ã±3 kV
EFT/B immunity for IEC 61000-4-4 at 100 kHz on Ethernet ports	Ã±3 kV
Emissions, CISPR11 (IEC 61000-6-4)	IEC 61000-6-4
ESD immunity, IEC 61000-4-2, air discharges	8 kV
ESD immunity, IEC 61000-4-2, contact discharges	6 kV
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	3 Kg/Km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	10 Kg/Km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 Kg/Km
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-20 Ã°C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-20 Ã°C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-20 Ã°C
Ambient temperature, maximum	60 Ã°C
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 Kg/Km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on communication ports	Ã±2 kV
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports	Ã±2 kV
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports	Ã±1 kV
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 Ã°C
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 Ã°C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 Ã°C
