Caratteristiche Tecniche
Features
Offer direct connection
Offers flexible user memory options
Provide integrated serial port
Provides integrated safety and integrated motion in a single controller
Include high speed input modules
Require SERCOS interface modules for motion
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O⢠to DPI/SCANport⢠and Compact I/O to DSI/Modbus modules
Includes individual point diagnostic status indicators to ease troubleshooting
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Removes the need for lithium batteries with built-in energy storage
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Include contact output modules
Support SIL 3, PLe integrity (L4xS controllers only)
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Include 8â¦32 points per module
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Simplify your system architecture with distributed I/O over EtherNet/IP
Offers a smaller form factor for maximized cabinet space
Include over-range and under-range detection and indication
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Include ability to direct output device operation during an abnormal condition
Offer input filtering
Delivers standard, safety and motion control for On-Machine⢠applications
Provide optical isolation
Offer user memory options ranging 2 MB to 3 MB
Provide dual Ethernet ports for both DLR and linear topologies
Allow control migrations with re-use of existing 1769 I/O
Offer selectable response to a broken input sensor
Offer analog, thermocouple, and RTD modules
Offer a variety of AC and DC voltages
Require a chassis
Offers support for Integrated Motion over EtherNet/IP⢠for maximized scalability
Does not require a chassis
Include autocalibration of inputs
Provides flexibility with DIN rail or panel mounting options
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Provide individually configurable channels
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Provides ability to connect with scaled HMI options from the PanelView⢠Plus portfolio to PanelView 800 graphic terminals for simple features
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Include on-board scaling
Supports up to 2 axes Kinematics for simple articulated robotics
Support seamless bridging with data control and collection over the same network
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Prevents incorrect positioning of module with software keying
Integrate with 1769 Compact I/O⢠modules
Connects as many as three banks of Compact I/O⢠to a controller; requires use of a communication adapter module and power supply
Provides seamless bridging with data control and collection over the same network
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Available with conformal coating
Provide high accuracy ratings
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Integrates with 1769 Compact I/O⢠modules
Supports integrated safety up to SIL 3, PLe CAT 4
Includes a built-in RS-232 serial port on every 1769-L3x controller
Include I/O packet rate of10,000 pps
Specifiche
Specifications
Sub Brand:CompactLogix
Type:Standard Controller
Special Features:Universal Analog Input
Communication:Ethernet , USB
Isolation:30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s
Enclosure:None (open-style)
Display:Status LEDs
Mounting:DIN Rail / Panel mount
Height:118mm, 4.65"
Width:140mm, 5.51"
Depth:105mm, 4.13"
Operating Temperature:0...60 °C (32...140 °F)
Number Of Channels:42
Memory:0.5MB
Local Programming Port:USB/Ethernet
Embedded Network Port:2 Ethernet
Non Volatile Memory Option:Secure Digital
Input Signal:10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance
Output Signal:24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA
Power Supply:24V DC input, Isolated,Class 2/SELV
Controllers

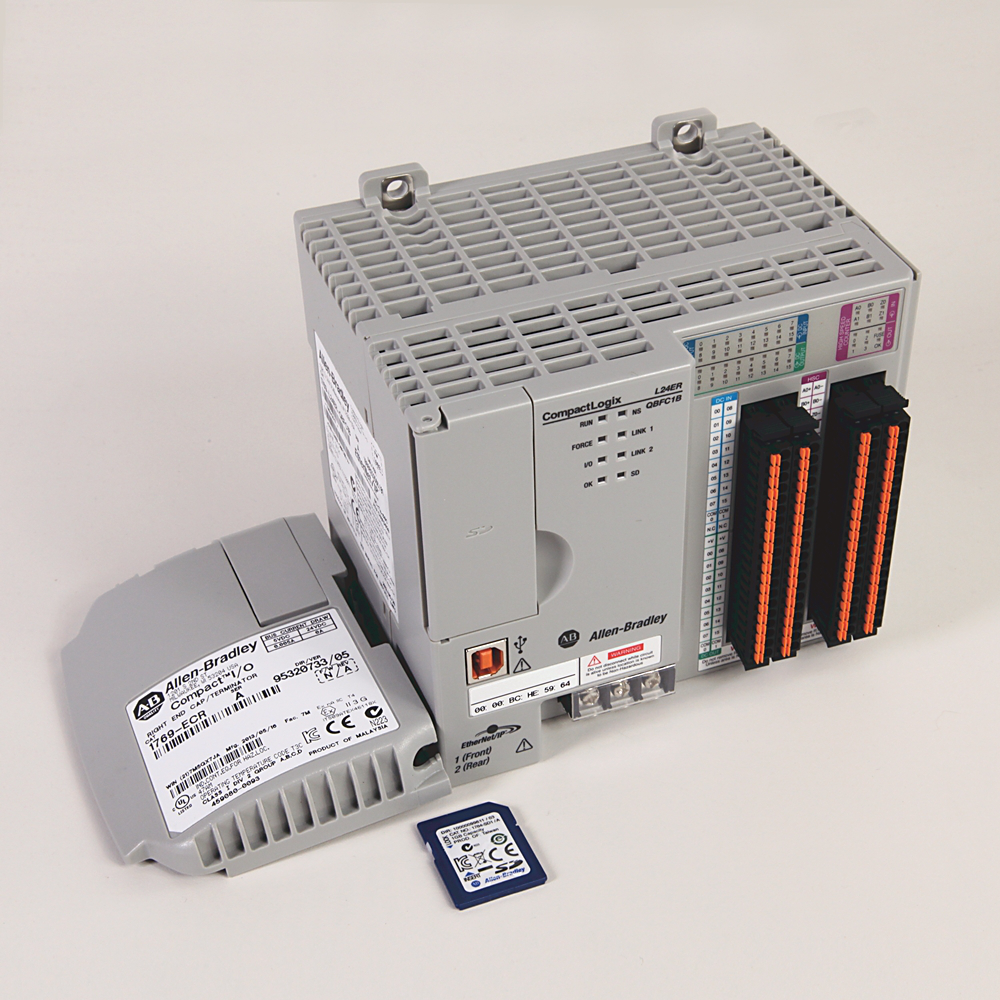

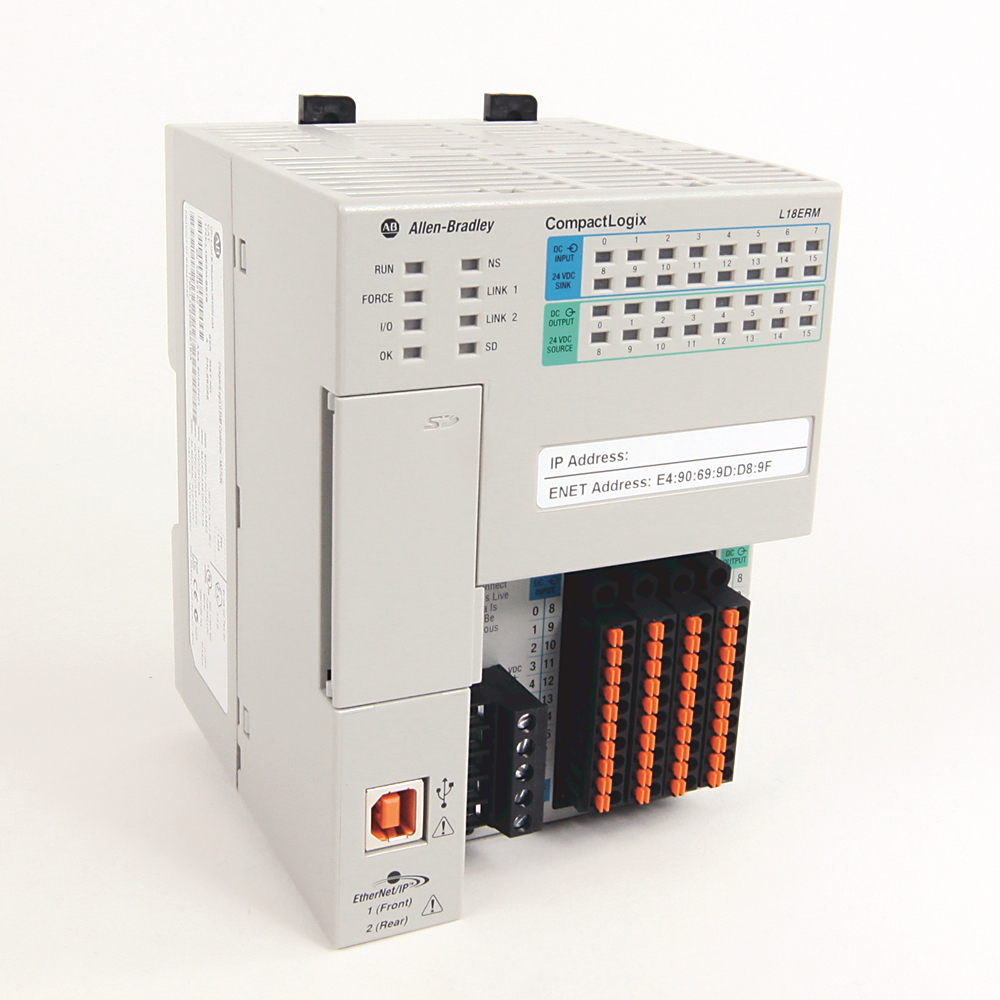

CompactLogix 5370 L2 Controllers:CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports With Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP And 120 TCP Connections, 24V DC Input Embedded Power Supply, With 1GB SD card, Can Support Up To 2GB SD Card, 1 USB Port.
Accessories And Kits
Network Media:Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
Disponibile
