Non disponibile

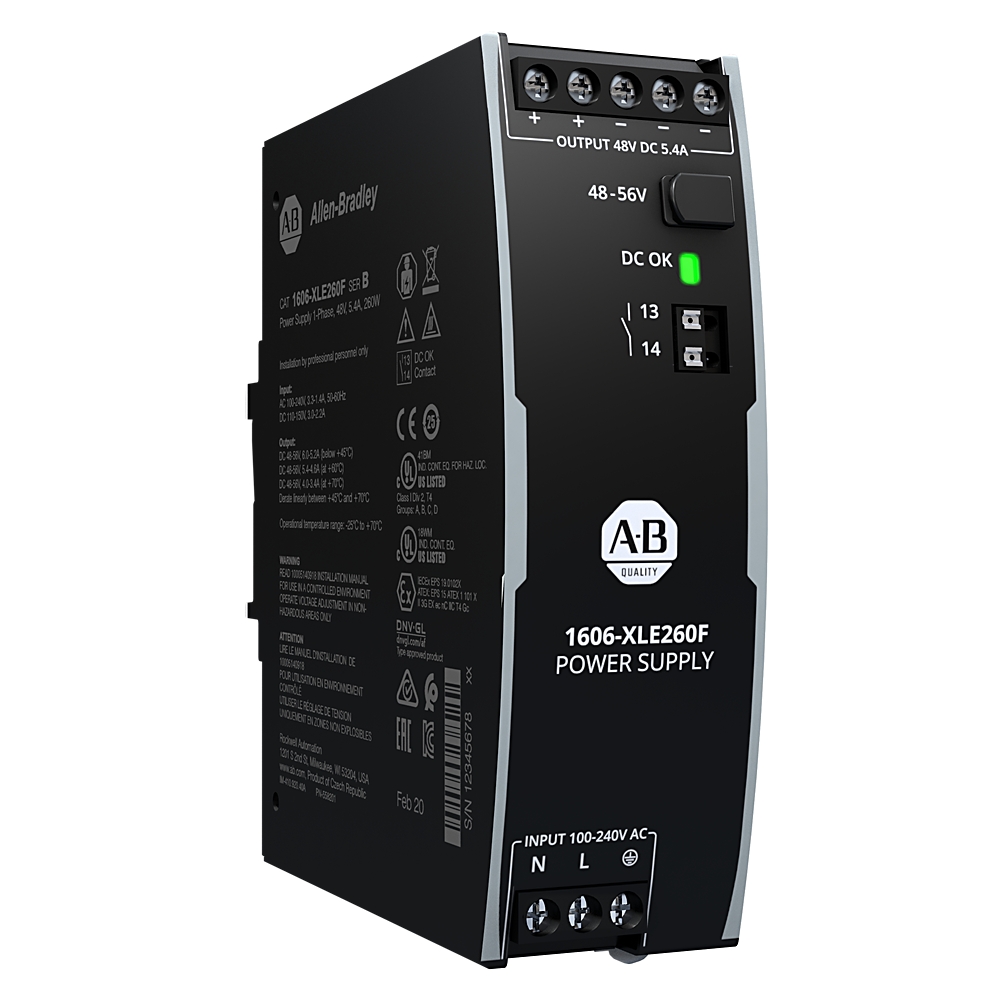

| Nominal value output voltage 1 | 48 V |
| Secondary voltage adjustable | Yes |
| Max. output current 1 | 5.4 A |
| Nominal value output current 1 | 5.4 A |
| Power output | 260 W |
| Voltage type of supply voltage | AC/DC |
| 1st secondary output voltage | 48 V |
| Rated supply voltage at AC 50 Hz | 100 V |
| Rated supply voltage at AC 60 Hz | 100 V |
| Rated supply voltage at DC | 110 V |
| Power reserves | 20 % |
| DC OK relay contact | Yes |
| Power factor | 0.98 typical |
| Output current range | 5.4 to 4.6 A |
| External input fuse, min | B-6 A or C-6 A |
| Power losses | 12.3 W typical |
| Derating | 6.5 W/ðC |
| Efficiency | 95.5 % typical |
| Input inrush current | 6 A/9 A |
| Output voltage stabilized | Yes |
| Rail mounting possible | Yes |
| Stabilized | Yes |
| Height | 124 mm |
| Depth | 117 mm |
| Direct mounting possible | No |
| Width | 39 mm |
| Degree of protection (IP) | IP20 |
| Type of electric connection | Screw connection |
| MTBF | 699 kh (+40 ðC, SN29500) |
| Wall mounting possible | Yes |
| Ripple and noise, max | 50 mV |
| Operating temperature | -25 ðC |
| Lifetime, min | 120 kh (+40 ðC) |
| Weight | 600 g |
