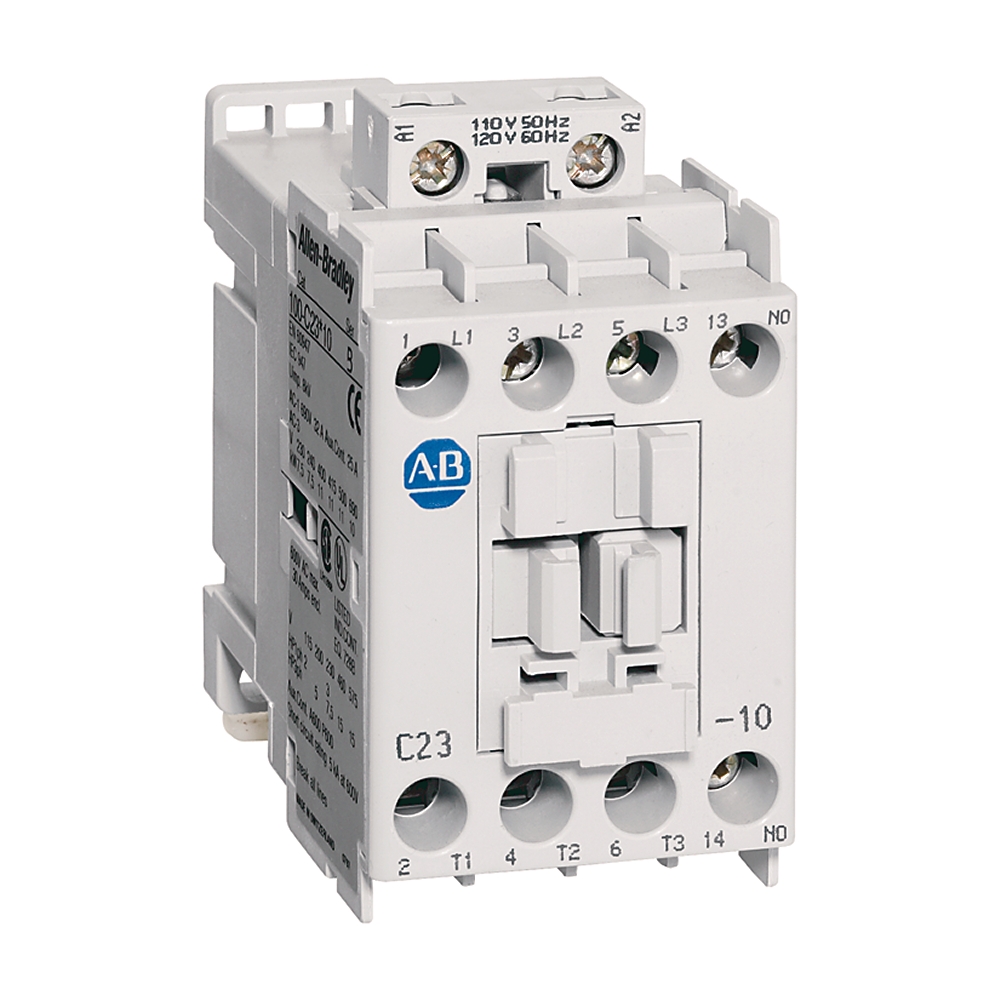

ROCKWELL AUTOMATION 100-C23D400
ROCKWELL AUTOMATION 100-C23D400
ROCKWELL AUTOMATION 100-C23D400
ROCKWELL AUTOMATIONNon disponibile

Contactor, 23 A, 110V 50 Hz / 120V 60 Hz., AC, 4 Normally Open Poles, No Contact Configuration, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load

100-C IEC Contactor, Screw Terminals, Line Side, 23A, 4 N.O. 0 N.C. Main Contact Configuration, Single Pack
Cod. Articolo: 100-C23D400
Cod. Fornitore: 100-C23D400
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
Features
Includes space-saving coil-mounted control modules
Provides IP2X finger protection
Includes reversible coil terminations (line or load side)
Includes built-in surge suppression with DC coils
Meets IEC, UL, and CSA standards requirements
Provides front and side mounting of auxiliary contacts
RoHs compliant
Offers common accessories for all contactor sizes
Includes electronic and pneumatic timing modules
Provides reversible coil terminations (line or load side)
Specifiche
Specifications
Connection:Screw Terminals
Coil Voltage:110V 50Hz / 120V 60Hz
3-Phase kW (50 Hz) 230V Rating:7.5
3-Phase kW (50 Hz) 400V/415V Rating:11
3-Phase kW (50 Hz) 500V Rating:13
3-Phase kW (50 Hz) 690V Rating:10
3-Phase HP (60 Hz) 230V Rating:7.5
3-Phase HP (60 Hz) 460V Rating:15
3-Phase HP (60 Hz) 575V Rating:15
Contactor Data
Terminal Type:Screw Terminals
Rated Operating Current, AC-3:23A
No. of Poles:4 Poles
Coil Termination:Line Side
Contact Configuration:4 N.O. 0 N.C. Main Contact Configuration
Package Quantity:1
Application Data
Electrical Standards:UL
Load Data [Optional]
Utilization Category:AC-3 Squirrel-cage motor starting and stopping
Life Data [Optional]
Actual Life:Actual Life Cannot be Calculated (more information)...
Terminal Marking Positions Used
100-C or 104-C Contactor:None
Front Mounted Auxiliary Contact:None
Left Side Auxiliary Contact:None
Right Side Auxiliary Contact:None
Interlock:None
Descrizione
Contactor, 23 A, 110V 50 Hz / 120V 60 Hz., AC, 4 Normally Open Poles, No Contact Configuration, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load
