| Notes | General Note: For a reliable contact of multi stranded conductors it is recommended to untwist multi stranded conductors. |

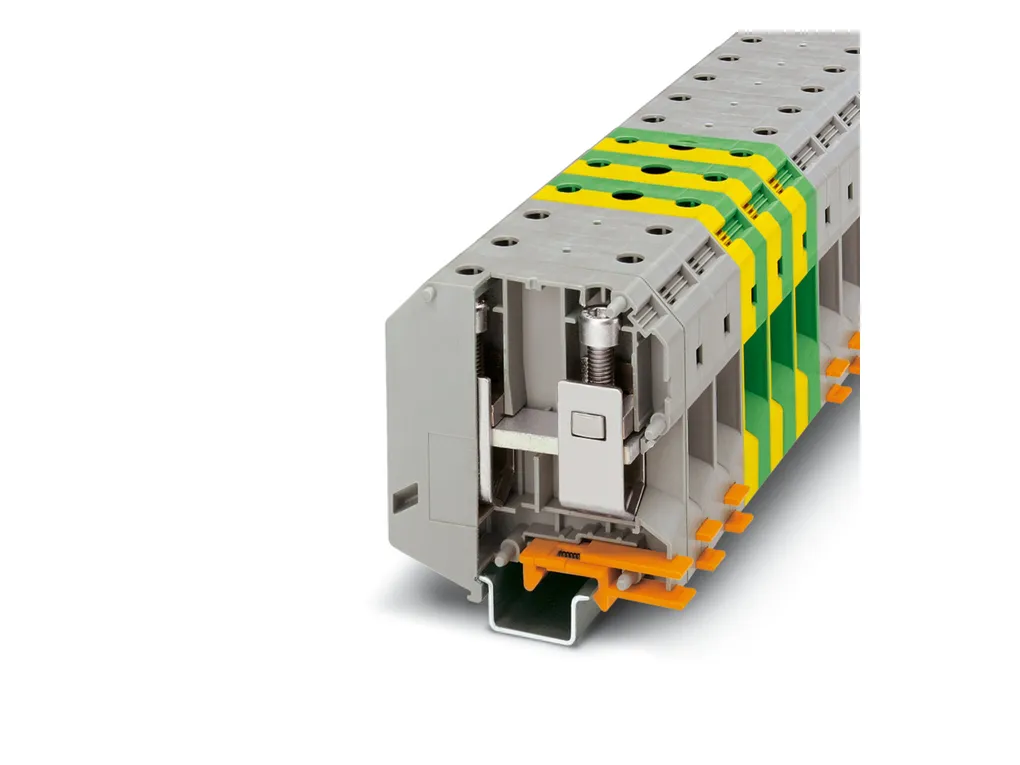

| Product properties | Product type: High current terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 7.54 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 95 mm² Level 1 above 1 below 1 Screw thread: M8 Note: Screws with hexagonal socket Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. Tightening torque: 15 ... 20 Nm Stripping length: 33 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 25 mm² ... 95 mm² Cross section AWG: 2 ... 3/0 (converted acc. to IEC) Conductor cross section flexible: 35 mm² ... 95 mm² Conductor cross section, flexible [AWG]: 1/0 ... 3/0 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 35 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 35 mm² ... 95 mm² Cross-section with insertion bridge, rigid: 95 mm² Cross-section with insertion bridge, flexible: 70 mm² 2 conductors with same cross section, solid: 25 mm² ... 35 mm² 2 conductors with same cross section, flexible: 25 mm² ... 35 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 16 mm² ... 35 mm² Nominal current: 232 A Maximum load current: 232 A Nominal voltage: 1500 VDC 1000 VAC Nominal cross section: 95 mm² |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/613bd8cba534014b8e844ecac711ed08/-S204x204-FJPG Width: 25 mm Height: 85.5 mm Depth: 90 mm Depth on NS32: 95 mm Depth on NS35/15: 97.5 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Electrical tests | Surge voltage test Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature â¤45K Result: Test passed Short-time withstand current 95 mm²: 11.4 kA Power-frequency withstand voltage Test voltage setpoint: 3.82 kV Result: Test passed |
| Mechanical properties | Mechanical data Open side panel: No |
| Mechanical tests | Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NS32/NS35 Result: Test passed Test for conductor damage and slackening Rotation speed: 10rpm Revolutions: 135 Conductor cross section/weight: 25 mm² / 4.5 kg 35 mm² / 6.8 kg 95 mm²/14 kg Result: Test passed |
| Environmental and real-life conditions | Needle-flame test Time of exposure: 30 s Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS35/15 NS32 |
