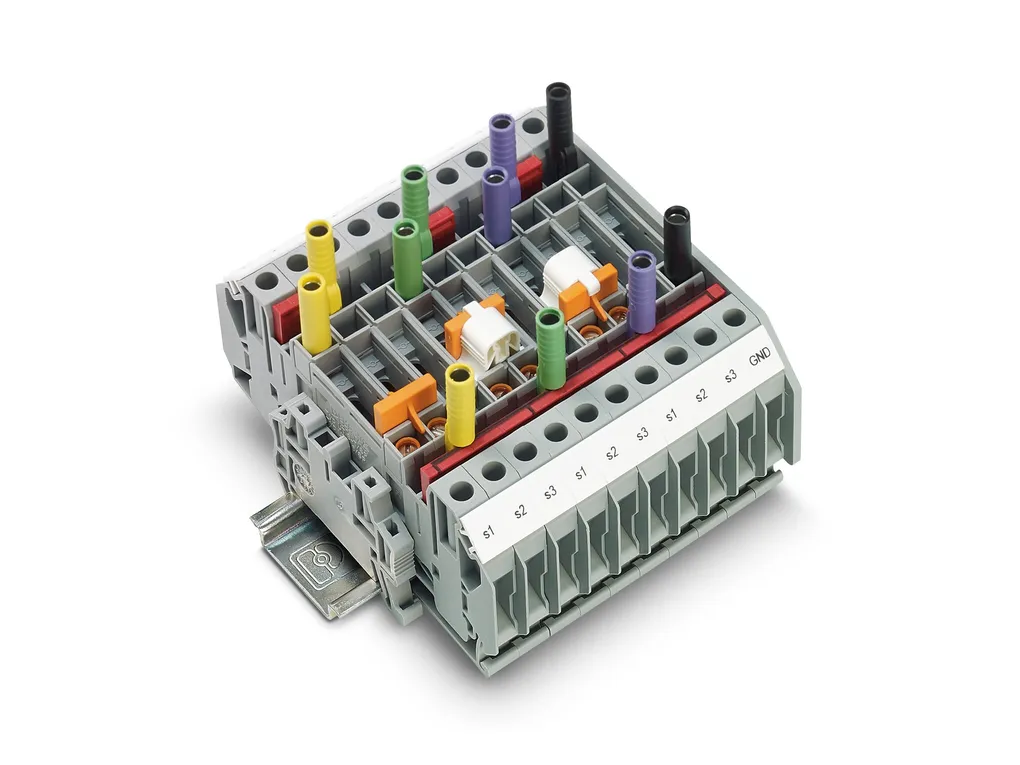

| Product properties | Product type: Disconnect terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.31 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 6 mm² 1 level Screw thread: M4 Tightening torque: 1.5 ... 1.8 Nm Stripping length: 12 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.2 mm² ... 10 mm² Cross section AWG: 24 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 24 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 6 mm² Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.25 mm² ... 4 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² Nominal current: 41 A Maximum load current: 50 A (with 10 mm² conductor cross section) Nominal voltage: 1000 V (The accessories used may reduce the voltage.) Nominal cross section: 6 mm² |
| Dimensions | Width: 8.2 mm End cover width: 2.2 mm Height: 105.2 mm Depth on NS32: 58 mm Depth on NS35/7,5: 53 mm Depth on NS35/15: 60.5 mm |
| Material specifications | Color: red Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 125°C |
| Mechanical properties | Mechanical data Open side panel: Yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C () Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NS35/15 NS32 |
