PHOENIX CONTACT 2924799
PHOENIX CONTACT 2924799
PHOENIX CONTACTNon disponibile

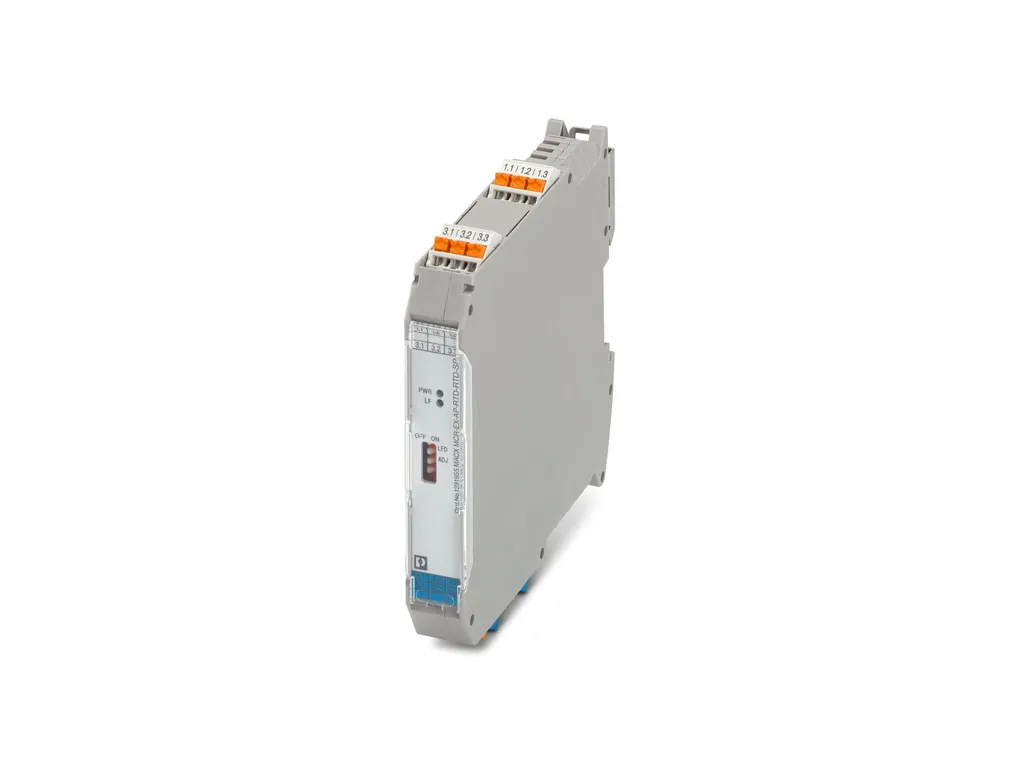

MACX MCR-EX-T-UIREL-UP-SP - Temperature measuring transducer

Programmable temperature transducer with analog output and 3 limit value relays, intrinsically safe signal input, resistance thermometer in 2-, 3-, or 4-conductor technology, thermocouples, electrical isolation, wide-range power supply, Push-in connection, SIL, PL.
Cod. Articolo: 2924799
Cod. Fornitore: 2924799
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesUtilization restriction
EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product propertiesProduct type: Temperature transmitter
Product family: MACX Analog
Type: Ex i signal conditioners with SIL and PL Functional Safety
Configuration: DIP switches
Software
Insulation characteristics
Overvoltage category: II
Pollution degree: 2
Electrical propertiesElectrical isolation: 4-way isolation
Step response (0âۉ€œ99%): ≤ 1.75 s (SILÂon)
1.3 s (SILÂoff)
Maximum temperature coefficient: 0.01 %/K
Maximum transmission error: 0.1 % (e.g. for Pt 100, 300 K span, 4 ... 20 mA)
Electrical isolation Input/output/power supply
Test voltage: 2.5 kV AC (50ÂHz, 60Âs)
Electrical isolation Input/output
Electrical isolation: 375 V (Peak value in accordance with IEC/EN 60079-11)
Electrical isolation Input/power supply
Electrical isolation: 375 V (Peak value in accordance with IEC/EN 60079-11)
Electrical isolation Input/switching output
Electrical isolation: 375 V (Peak value in accordance with IEC/EN 60079-11)
Electrical isolation Output/supply
Rated insulation voltage: 300 Vrms
Insulation: Safe isolation in accordance with IEC/ENÂ61010-1
Supply
Nominal supply voltage range: 24 V AC/DC ... 230 V AC/DC (50/60ÂHz)
Supply voltage range: 19.2 V AC/DC ... 253 V AC/DC (24ÂVÂAC/DCÂ...Â230ÂVÂAC/DC (-20Â%Â...Â+10Â%, 50/60ÂHz))
Typical current consumption: < 100 mA (24ÂVÂDC)
Power consumption: < 2.4 W
Input dataSignal
Number of inputs: 1
Input signal: Temperature
Resistor
Voltage
Measurement
Sensor types (RTD) that can be used: Pt, Ni, Cu sensors: 2, 3, 4-wire
Sensor types that can be used (TC): B, E, J, K, N, R, S, T, L, U, CA, DA, A1G, A2G, A3G, MG, LG
Temperature measuring range: -250°C ... 2500°C (Range depending on the sensor type)
Linear resistance measuring range: 0 Ω ... 50 kΩ
Potentiometer resistance range: 0 Ω ... 50 kΩ
Linear mV signal range: -1000 mV ... 1000 mV
Output dataSwitching: Relay
Configurable/programmable: Yes
Contact switching type: 3 changeover contacts
Contact material: AgSnO2, hard gold-plated
Maximum switching voltage: 250 VÂAC (250ÂVÂDC)
Max. switching current: 2 A (250ÂVÂAC)
0.1 A (250ÂVÂDC)
2 A (28 V DC)
Signal: Current
Number of outputs: 1
Configurable/programmable: Yes
Max. voltage output signal: ± 11 V
Current output signal: 4 mA ... 20 mA (in the case of SIL; further free configuration without SIL)
Max. current output signal: 22 mA
Load/output load voltage output: ≥ 10 kΩ
Load/output load current output: ≤ 600 Ω (20ÂmA)
Behavior in the event of a sensor error: according to NE 43 or freely configurable
Connection dataConnection method: Push-in connection
Stripping length: 8 mm
Conductor cross section rigid: 0.2 mm² ... 1.5 mm²
Conductor cross section flexible: 0.2 mm² ... 1.5 mm²
Conductor cross section AWG: 24 ... 16
Ex dataEx installation (EPL): Gc
Div.Â2
Ex i circuits (EPL): Ga
Da
Ma
Div.Â1
Safety data
Max. internal inductance Li: negligible
Max. internal capacitance Ci: 44 nF
Max. output voltage Uo: 6 VÂDC
Max. output current Io: 7 mA (RTD in 2-conductor technology)
13 mA (RTD in 3-conductor technology)
16 mA (RTD in 4-conductor technology)
13 mA (TC with internal cold junction compensation)
10 mA (TC with external cold junction compensation)
5 mA (mV)
13 mA (Potentiometer)
Max. output power Po: 11 mW (RTD in 2-conductor technology)
20 mW (RTD in 3-conductor technology)
24 mW (RTD in 4-conductor technology)
20 mW (TC with internal cold junction compensation)
15 mW (TC with external cold junction compensation)
7.5 mW (mV)
20 mW (Potentiometer)
Safety-related maximum voltage Um: 253 VÂAC (Terminals 1.1, 1.2)
125 VÂDC (Terminals 1.1, 1.2)
250 VÂAC (Terminals 3.1, 3.2)
120 VÂDC (Terminals 3.1, 3.2)
30 V (Installation in zoneÂ2)
IIC (mixed circuit): Max. external inductivity Lo / Max. external capacitance Co: 100 mH / 600 nF
I/IIB/IIA/IIIC (mixed circuit): Max. external inductivity Lo / Max. external capacitance Co: 100 mH / 1 µF
SignalingStatus display: Green LED (supply voltage)
Red LED, flashing (line, sensor error, ERR)
Red LED (module error, ERR)
Yellow LED (switching output)
DimensionsWidth: 35 mm
Height: 116 mm
Depth: 113.7 mm
Depth NSÂ35/7,5: 114.5 mm (Snapped onto DIN rail NSÂ35/7,5 in accordance with ENÂ60715)
Material specificationsFlammability rating according to UL 94: V0 (Housing)
Housing material: PA 6.6-FR
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20 (not assessed by UL)
Ambient temperature (operation): -20°C ... 65°C
Ambient temperature (storage/transport): -40°C ... 85°C
Permissible humidity (operation): typ. 5 % ... 95 % (non-condensing)
Shock (operation): 15g (IEC 60068-2-27)
Vibration (operation): 5g (IEC 60068-2-6)
Altitude range (≤ 2000 m)
Altitude: ≤ 2000 m (The technical data refers to altitudes ≤2000Âm above mean sea level. For altitudes >2000Âm above mean sea level, refer to the data sheet.)
Altitude range (≤ 3000 m)
Height range: > 2000 m ... 3000 m
Ambient temperature (operation): -20°C ... 55°C
Safety-related maximum voltage Um: 190 VÂAC (Terminals 1.1, 1.2)
110 VÂDC (Terminals 1.1, 1.2)
190 VÂAC (Terminals 3.1, 3.2)
110 VÂDC (Terminals 3.1, 3.2)
30 V (Installation in zoneÂ2)
Altitude range (≤ 4000 m)
Height range: > 3000 m ... 4000 m
Ambient temperature (operation): -20°C ... 50°C
Safety-related maximum voltage Um: 60 V AC/DC (Terminals 1.1, 1.2)
60 V AC/DC (Terminals 3.1, 3.2)
30 V (Installation in zoneÂ2)
Altitude range (≤ 5000 m)
Height range: > 4000 m ... 5000 m
Ambient temperature (operation): -20°C ... 45°C
Safety-related maximum voltage Um: 60 V AC/DC (Terminals 1.1, 1.2)
60 V AC/DC (Terminals 3.1, 3.2)
30 V (Installation in zoneÂ2)
ApprovalsCE
Certificate: CE-compliant
ATEX
Identification: ïÃ‹œ II (1) G [Ex ia Ga] IIC
ïÃ‹œ II (1) D [Ex ia Da] IIIC
ïÃ‹œ II 3 G Ex ec ic nC [ia Ga] IIC T4 Gc
ïÃ‹œ I (M1) [Ex ia Ma] I
Certificate: IBExU 10 ATEX 1044
UKCAÂExÂ(UKEX)
Identification: ïÃ‹œ I (M1) [Ex ia Ma] I
ïÃ‹œ II (1) G [Ex ia Ga] IIC
ïÃ‹œ II (1) D [Ex ia Da] IIIC
ïÃ‹œ II 3 (1) G Ex ec ic nC [ia Ga] IIC T4 Gc
Certificate: CML 22UKEX3529X
IECEx
Identification: [Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec ic nC [ia Ga] IIC T4 Gc
[Ex ia Ma] I
Certificate: IECEx IBE 10.0004 X
UL, USA/Canada
Identification: ULÂ508 Listed
Certificate: ïÃ¢€¢, C.D.-No 83104549
Shipbuilding approval
Certificate: DNV GL TAA000020C
Safety Integrity Level (SIL, IEC 61508)
Identification: 2
Certificate: SEBS-A.150520/17TB
Performance Level (ISOÂ13849)
Identification: d
INMETRO
Identification: [Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec ic nC [ia Ga] IIC T4 Gc
[Ex ia Ma] I
Certificate: DNV 18.0143 X
EACÂEx
Identification: ï˜â€œ [Ex ia Ga] IIC
ï˜â€œ [Ex ia Da] IIIC
Certificate: RU C-DE.AB72.B.00093/19
DNV GL data
Temperature: B
Humidity: B
Vibration: A
EMC: A
Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC dataNoise immunity: EN 61000-6-2
Note: When being exposed to interference, there may be minimal deviations.
Electromagnetic compatibility: Conformance with EMC directive
Noise emission: EN 61000-6-4
Electromagnetic HF field
Designation: Electromagnetic RF field
Standards/regulations: ENÂ61000-4-3
Typical deviation from the measuring range final value: 2 %
Fast transients (burst)
Designation: Fast transients (burst)
Standards/regulations: ENÂ61000-4-4
Typical deviation from the measuring range final value: 2 %
Conducted interference
Designation: Conducted interferences
Standards/regulations: ENÂ61000-4-6
Typical deviation from the measuring range final value: 2 %
Standards and regulationsElectrical isolation: 4-way isolation
MountingMounting type: DIN rail mounting
