| Notes | General: When the PT ...-BE/FM base elements are used, the connections 9/10 (GND) are directly connected to the DIN rail via the metal mounting foot. |
| Product properties | Type: Base element, DIN rail mounting Product type: Base element Product family: PLUGTRAB PT Number of positions: 2 |
| Electrical properties | Indicator/remote signaling Maximum operating voltage Umax. AC: 250 VÃAC Max. operating current Imax: 0.2 A (250ÃVÃAC) 0.2 A (220 VÃDC) 1 A (60 V AC) 1 A (60ÃVÃDC) |
| Connection data | Connection method: Screw connection Screw thread: M3 Tightening torque: 0.8 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |

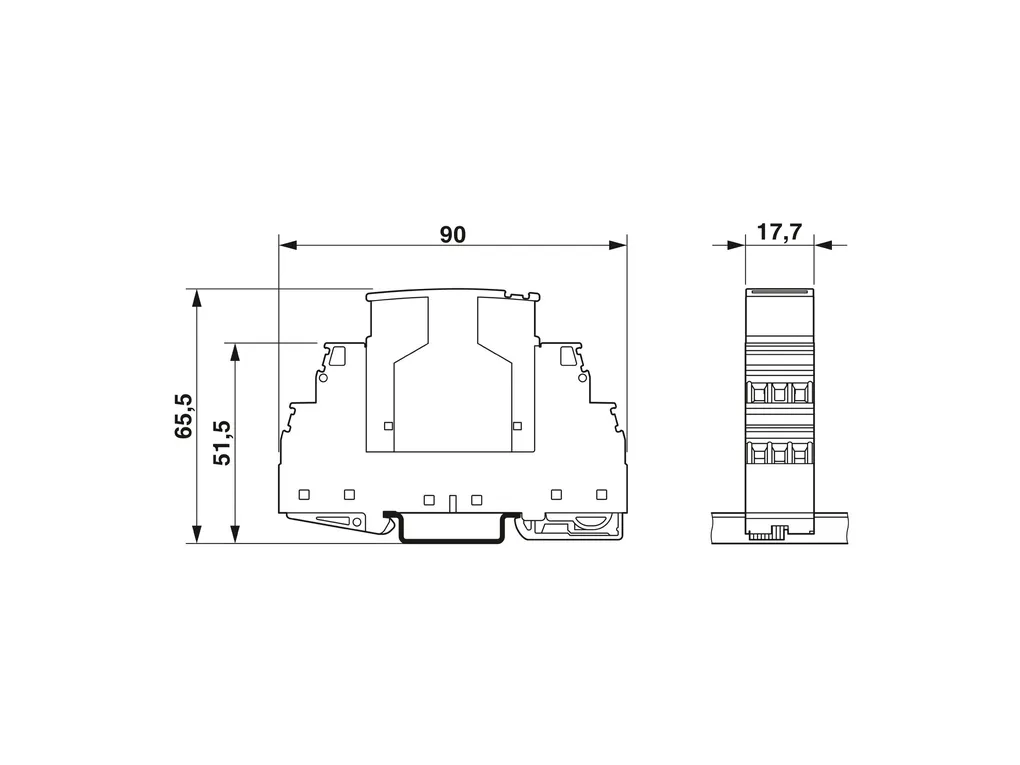

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.5 mm Height: 90 mm Depth: 51.7 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Flammability rating according to UL 94: V-0 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Shield-Earth Ground |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): 40°C ... 85°C |
| Mounting | Mounting type: DIN rail: 35 mm |
