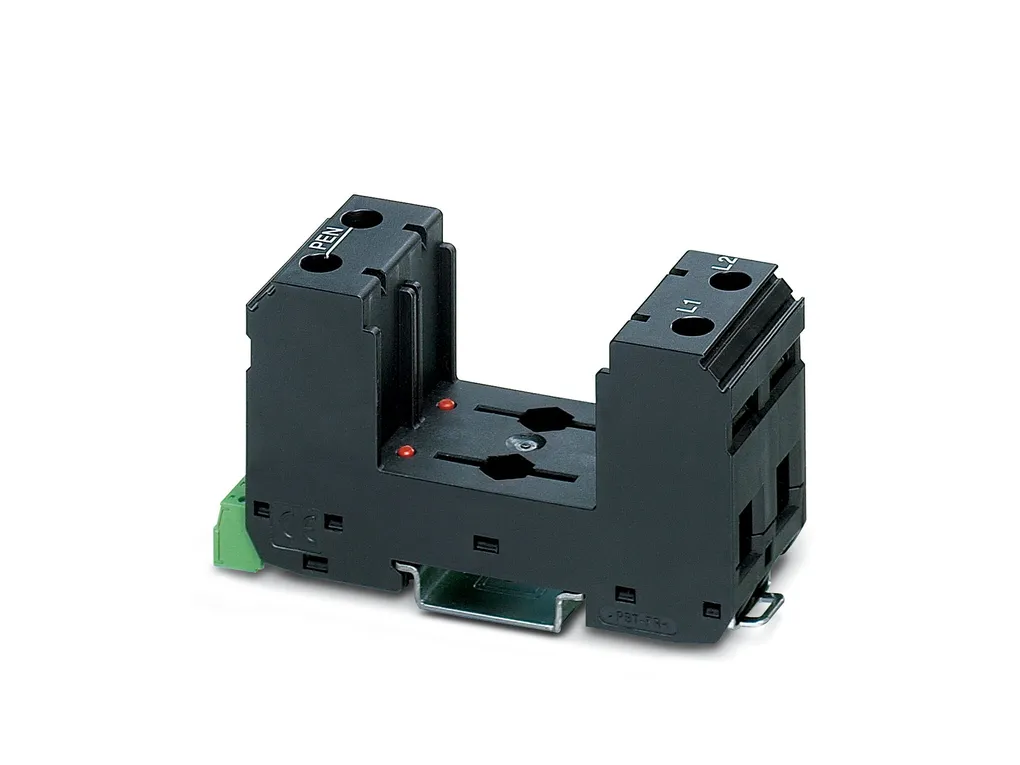

2910385 PHOENIX CONTACT - Technology Bsa

Notes	General Note: Additional information for IT systems as used for 2920256
Product properties	IEC test classification: II T2 EN type: T2 IEC power supply system: TN-C IT Type: DIN rail module, two-section, divisible Distance between live and grounded parts: 5 mm Product type: Surge protection for NEMA power supply units Product family: VALVETRAB US Number of positions: 2 Surge protection fault message: Optical, remote indicator contact Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal frequency f_N: 50 Hz (60ÃHz) Indicator/remote signaling Connection name: Remote fault indicator contact Switching function: Changeover contact Operating voltage: 5 VÃAC ... 250 VÃAC 30 VÃDC Operating current: 5 mA AC ... 1.5 A AC 1 AÃDC
Connection data	Connection method: Screw connection Fork-type cable lug Screw thread: M5 Tightening torque: 3 Nm (1.5Ãmm² ... 16Ãmm²) 4.5 Nm (25Ãmm²Ã...Ã35Ãmm²) Stripping length: 16 mm Conductor cross section flexible: 1.5 mm² ... 25 mm² 1.5 mm² ... 16 mm² Conductor cross section rigid: 1.5 mm² ... 35 mm² Conductor cross section AWG: 15 ... 2 Remote fault indicator contact Connection method: Plug-in/screw connection via COMBICON Screw thread: M2 Tightening torque: 0.25 Nm Stripping length: 7 mm Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16

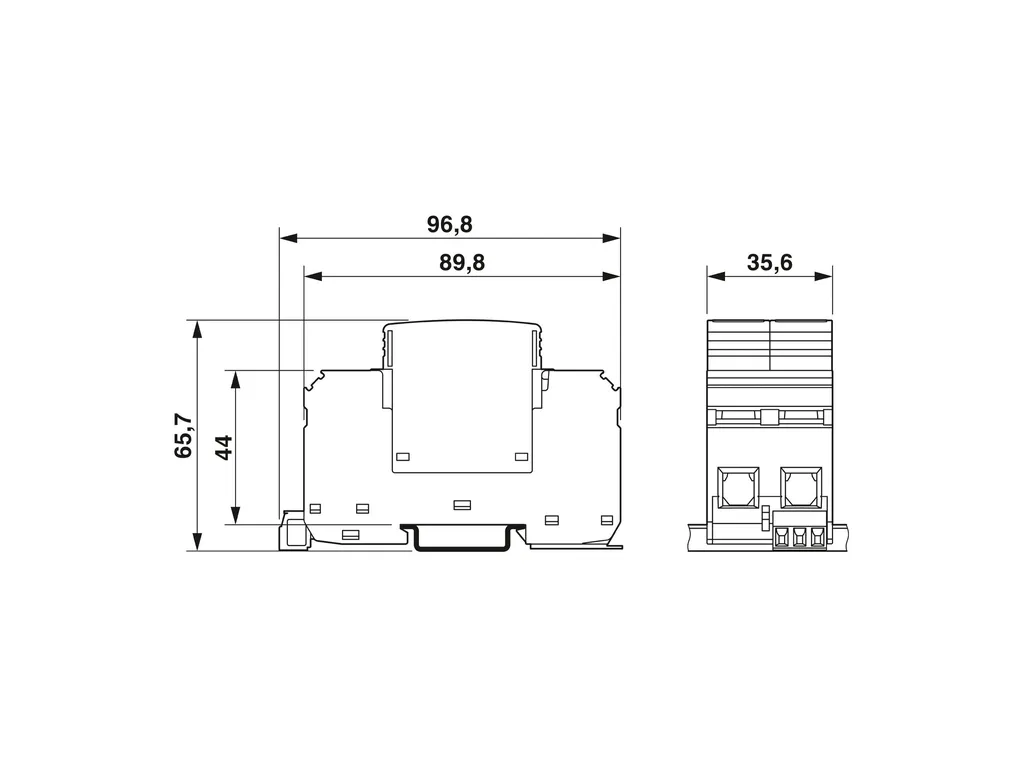

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fc65ce1f4ea29a42bfe5c5c9a62b3f88/-S204x204-FJPG Width: 35.6 mm Height: 96.8 mm Depth: 65.7 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 2 Div.
Material specifications	Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6/PBT Material group: I Housing material: PA 6.6 PBT
Protective circuit	Mode of protection: L-PE Direction of action: 2L-GND Nominal voltage U_N: 480ÃVÃAC (IT) Nominal frequency f_N: 50 Hz (60ÃHz) Maximum continuous voltage U_C: 580 VÃAC Standby power consumption P_C: Ã¢Ã¢°¤ 150 mVA Nominal discharge current I_n (8/20) Ãµs: 15 kA Maximum discharge current I_max (8/20) Ãµs: 30 kA Short-circuit current rating I_SCCR: 25 kA Voltage protection level U_p: Ã¢Ã¢°¤ 2.5 kV Residual voltage U_res: Ã¢Ã¢°¤ 2.5 kV (at I_n) Ã¢Ã¢°¤ 2.3 kV (at 10 kA) Ã¢Ã¢°¤ 2.1 kV (at 5 kA) Ã¢Ã¢°¤ 1.9 kV (at 3ÃkA) TOV behavior at U_T: 690 VÃAC (5Ãs / withstand mode) 762 VÃAC (120Ãmin / withstand mode) Max. backup fuse with branch wiring: 125 A (gG)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 (only when all terminal points are used) Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 25g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
Approvals	UL specifications Maximum continuous operating voltage MCOV (L-L): 750 VÃAC Maximum continuous operating voltage MCOV (L-G): 580 VÃAC Short-circuit current rating (SCCR): 200 kA Voltage protection rating VPR (L-L): 4000 V Voltage protection rating VPR (L-G): 2000 V UL type: type 1 Nominal discharge current I_n: 20 kA Maximum Surge Current per Phase: 30 kA Mode of protection: L-L L-G Nominal voltage: 480ÃVÃAC (3-phase corner-grounded Delta) Power distribution system: Delta Nominal frequency: 50/60 Hz SPD Type: 1 UL indicator/remote signaling Operating voltage: 125 VÃAC AC operating current: 1 A AC UL connection data Tightening torque: 30 lb_f-in. Conductor cross section AWG: 14 ... 2
Standards and regulations	Air clearances and creepage distances Standards/regulations: ENÃ60664-1 / ENÃ61643-11 Standards/specifications: IEC 61643-11 ENÃ61643-11 Note: 2011 2012
Mounting	Mounting type: DIN rail: 35 mm
