2909969 PHOENIX CONTACT - Technology Bsa

Notes	General Note: Usable in all low-voltage systems between L-N or L-PEN. Only usable in IT Systems between L-PE, if the exposed-conductive-parts (bodies) of the equipment of the low-voltage installation is connected to the earthing arrangement of the transformer substation. (interconnected earthing arrangement of the HV-transformer substation with the bodies of the LV-installation. R_E = R_A accordance to IEC 60364-4-442 / VDE 0100-442 Fig. 44D / Example a)

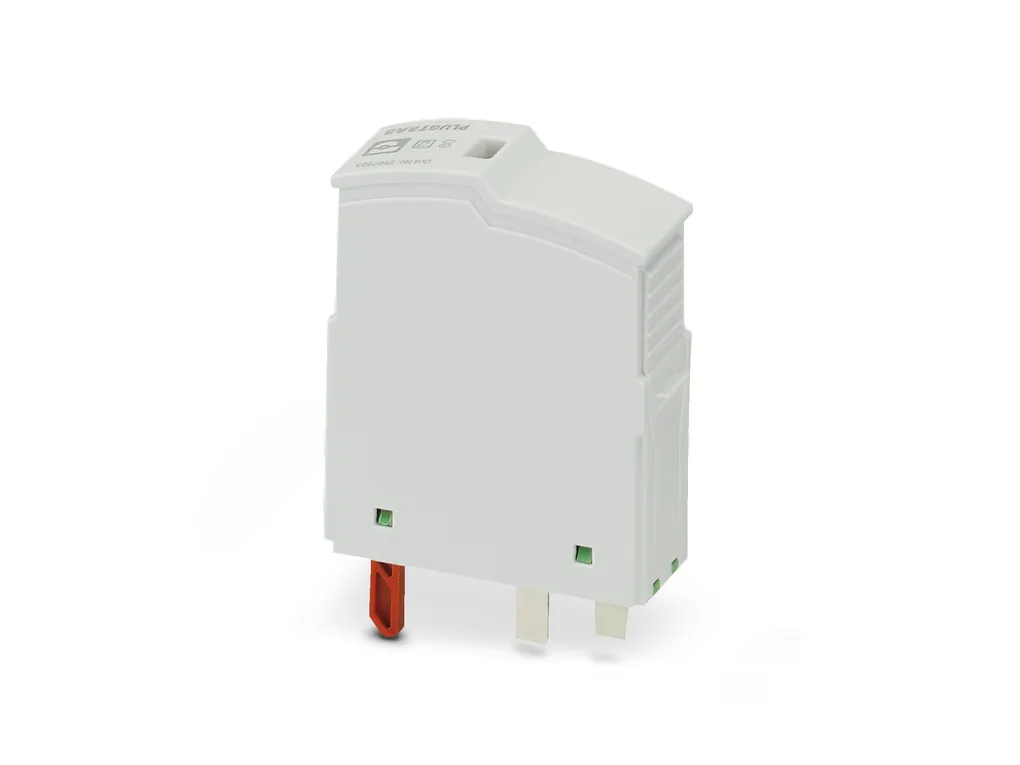

Product properties	IEC test classification: II T2 EN type: T2 IEC power supply system: TN TT IT Type: Male Product type: Replacement plug Product family: SEC Family Number of positions: 1 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal frequency f_N: 50 Hz (60ÃHz)
Connection data	Connection method: pluggable

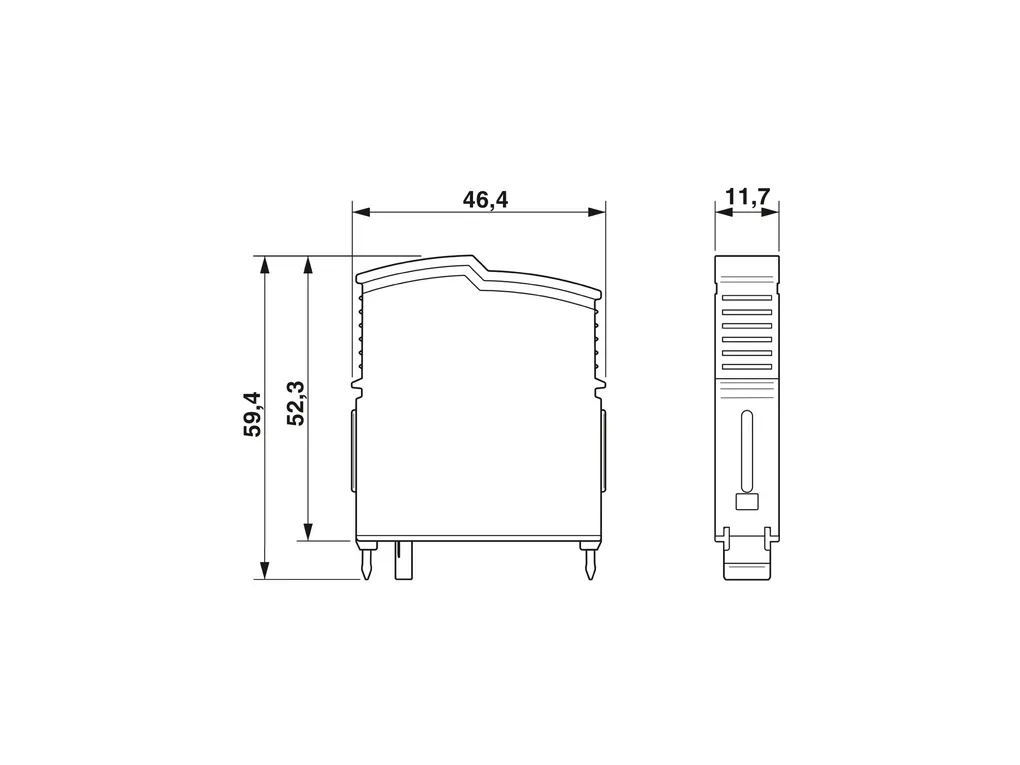

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e7cb446bdeab77498a0d023a1cee84c2/-S204x204-FJPG Width: 11.7 mm Height: 46.4 mm Depth: 59.4 mm Horizontal pitch: 0.6 Div.
Material specifications	Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA6.6-FR 20% GF PBT-FR Material group: I Housing material: PA 6.6-FR 20Ã% GF PBT-FR
Protective circuit	Mode of protection: L-N L-PEN Direction of action: L-N / L-PEN Nominal voltage U_N: 400ÃVÃAC (TN) 400ÃVÃAC (TT) 400ÃVÃAC (IT) Nominal frequency f_N: 50 Hz (60ÃHz) Maximum continuous voltage U_C: 440 VÃAC Standby power consumption P_C: Ã¢Ã¢°¤ 180 mVA Nominal discharge current I_n (8/20) Ãµs: 20 kA Maximum discharge current I_max (8/20) Ãµs: 40 kA Short-circuit current rating I_SCCR: 25 kA (for a backup fuse of up to 315ÃAÃgG) 50 kA (for a backup fuse of up to 200ÃAÃgG) Voltage protection level U_p: Ã¢Ã¢°¤ 1.9 kV Residual voltage U_res: Ã¢Ã¢°¤ 1.9 kV (at I_n) Ã¢Ã¢°¤ 1.65 kV (at 10 kA) Ã¢Ã¢°¤ 1.5 kV (at 5 kA) Ã¢Ã¢°¤ 1.45 kV (at 4 kA) Ã¢Ã¢°¤ 1.35 kV (at 2 kA) TOV behavior at U_T: 581 VÃAC (5Ãs / withstand mode) 762 VÃAC (120Ãmin / safe failure mode) Response time t_A: Ã¢Ã¢°¤ 25 ns Max. backup fuse with branch wiring: 315 A (gG)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
Standards and regulations	Standards/specifications: IEC 61643-11 ENÃ61643-11 Note: 2011 2012
Mounting	Mounting type: on base element
