2907924 PHOENIX CONTACT - Technology Bsa

Product properties	IEC power supply system: TN-S TT Type: DIN rail module, two-section, divisible Product type: Base element Product family: SEC Family Number of positions: 2 Surge protection fault message: Remote indication contact Insulation characteristics Overvoltage category: III Pollution degree: 2 IEC test classification: II / III T2 / T3 EN type: T2 / T3 Number of ports: One
Electrical properties	Indicator/remote signaling Connection name: Remote fault indicator contact Switching function: Changeover contact Operating voltage: 250 VÃAC 125 VÃDC (200 mA DC) Operating current: 0.5 A AC 0.5 AÃDC (75ÃVÃDC)
Connection data	Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12

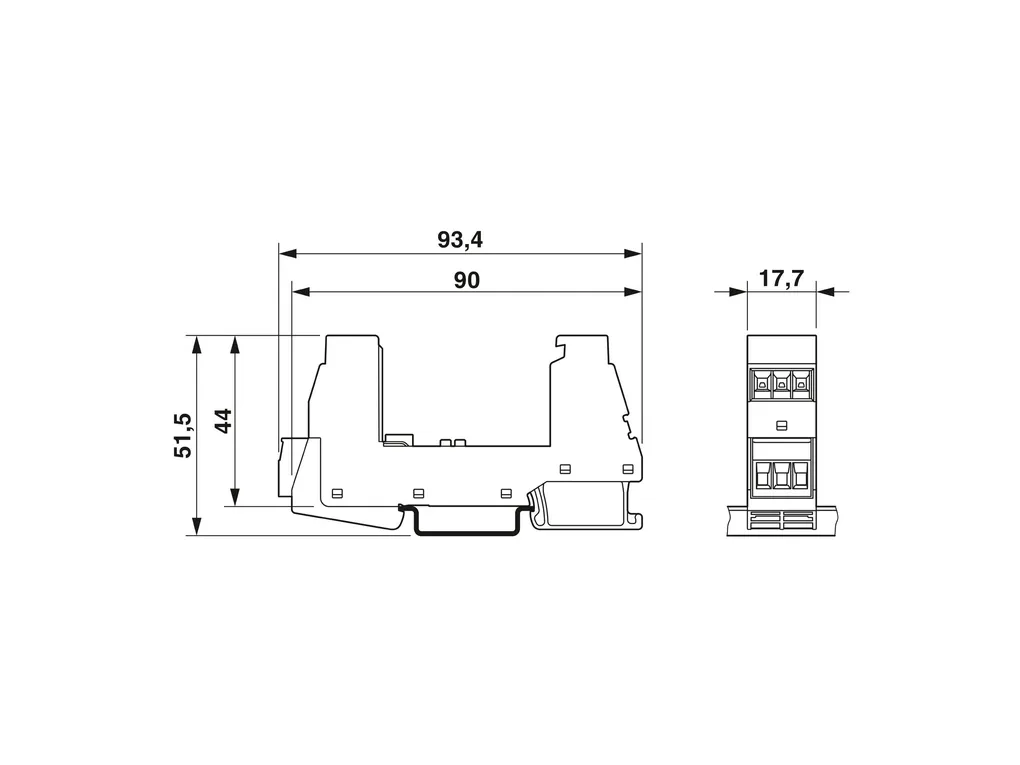

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7bbef8e44094c94e8afcc4872555bcaf/-S204x204-FJPG Width: 17.7 mm Height: 93.4 mm Depth: 51.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div.
Material specifications	Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6-FR 20 % GF PA 6.6-FR Housing material: PA 6.6-FR 20Ã% GF PA 6.6-FR
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: 1L-N & N-PE Nominal voltage U_N: 240ÃVÃACÃ(TN-S) 240ÃVÃACÃ(TT) Nominal frequency f_N: 50 Hz (60ÃHz) Maximum continuous voltage U_C: 264 VÃAC Rated load current I_L: 26 A (at 30Ã°C) Short-circuit current rating I_SCCR: 10 kA AC Max. backup fuse with branch wiring: depends on the plug used Additional technical data Short-circuit current rating I_SCCR: max. 5 kA DC (depends on the plug used) Maximum continuous voltage U_C: 240 VÃDC
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 5g (5Ã...Ã500ÃHz / 2.5Ãh / X, Y, Z)
Approvals	UL specifications Nominal voltage: 240 VÃDC Rated load current I_L: 20 A Power distribution system: Single phase DC Nominal frequency: 50/60 Hz SPD Type: ACC UL indicator/remote signaling Operating voltage: 250 VÃAC (0.5ÃA) DC operating voltage: 12 VÃDC (4ÃA) 24 VÃDC (2ÃA) 48 VÃDC (1ÃA) UL connection data Tightening torque: 4.4 lb_f-in. Conductor cross section AWG: 16 ... 12
Standards and regulations	Standards/specifications: IEC 61643-11 Note: 2011 EN 61643-11 Standards/specifications: ENÃ61643-11 Note: 2012
Mounting	Mounting type: DIN rail: 35 mm
