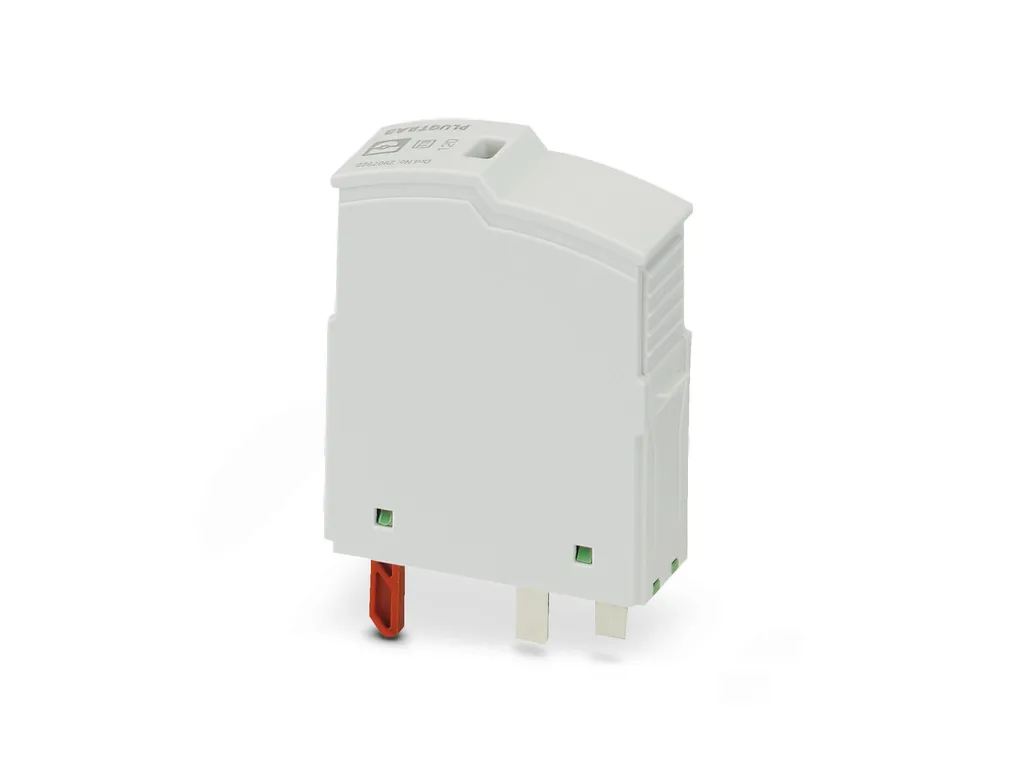

| Product properties | IEC power supply system: TN-S TT Type: Male Product type: Replacement plug Product family: SEC Family Number of positions: 2 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 IEC test classification: II / III T2 / T3 EN type: T2 / T3 Number of ports: One |
| Connection data | Connection method: pluggable |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/25e5299f9f2d3a47963ae1591d8c2c5d/-S204x204-FJPG Width: 17.5 mm Height: 46.7 mm Depth: 65.7 mm Horizontal pitch: 1 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6-FR 20 % GF PA 6.6-FR Housing material: PA 6.6-FR 20Ã% GF PA 6.6-FR |
| Protective circuit | Mode of protection: L-N L-PE N-PE Direction of action: 1L-N & N-PE Nominal voltage UN: 120ÃVÃACÃ(TN-S) 120ÃVÃACÃ(TT) Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 150 VÃAC Residual current IPE: ââ°¤ 5 õA Standby power consumption PC: ââ°¤ 10.6 mVA (at UREF) ââ°¤ 13.5 mVA (at UC) Reference test voltage UREF: 132 VÃAC Nominal discharge current In (8/20) õs: 5 kA Maximum discharge current Imax (8/20) õs: 10 kA Combination wave UOC: 6 kV Voltage protection level Up (L-N): ââ°¤ 0.75 kV (at UOC) ââ°¤ 0.95 kV (at In) Voltage protection level Up (L-PE): ââ°¤ 0.85 kV Voltage protection level Up (N-PE): ââ°¤ 0.85 kV TOV behavior at UT (L-N): 240 VÃAC (5Ãs / withstand mode) 240 VÃAC (120Ãmin / withstand mode) TOV behavior at UT (L-PE): 240 VÃAC (5Ãs / withstand mode) 240 VÃAC (120Ãmin / withstand mode) 1332 VÃAC (200Ãms / safe failure mode) TOV behavior at UT (N-PE): 1200 VÃAC (200Ãms / safe failure mode) Response time tA (L-N): ââ°¤ 25 ns Response time tA (L-PE): ââ°¤ 100 ns Response time tA (N-PE): ââ°¤ 100 ns Short-circuit current rating ISCCR: 10 kA AC Max. backup fuse with branch wiring: 32 A (gG / B / C) Additional technical data Short-circuit current rating ISCCR: 0.25 kA DC (Without additional backup fuse in the DC branch wiring) 5 kA DC (for 20 A gG / B backup fuse) Residual voltage Ures (L-N): ââ°¤ 0.68 kV (at 2 kA) ââ°¤ 0.75 kV (at 3ÃkA) ââ°¤ 0.64 kV (at UOC = 4 kV) Residual voltage Ures (L-PE): ââ°¤ 0.58 kV (at 2 kA) ââ°¤ 0.65 kV (at 3ÃkA) ââ°¤ 0.75 kV (at UOC = 4 kV) Residual voltage Ures (N-PE): ââ°¤ 0.58 kV (at 2 kA) ââ°¤ 0.65 kV (at 3ÃkA) ââ°¤ 0.75 kV (at UOC = 4 kV) Maximum continuous voltage UC: 150 VÃDC Mode of protection: (DC+) - (DC-) (DC+/DC-) - PE IEC test classification (in accordance with IEC 61643-21): D1 Impulse durability (wire-wire): D1 - 500ÃA Impulse durability (line-earth): D1 - 500ÃA Pulse discharge current Iimp (10/350)Ãõs (line-line): 0.5 kA Pulse discharge current Iimp (10/350)Ãõs (line-earth): 0.5 kA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 6000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (5Ã...Ã500ÃHz / 2.5Ãh / X, Y, Z) |
| Approvals | UL specifications Maximum continuous operating voltage MCOV: 150 VÃAC 150 VÃDC Short-circuit current rating (SCCR): 10 kA AC 5 kA DC Voltage protection rating VPR (L-N): 800 V Voltage protection rating VPR (L-G): 900 V Voltage protection rating VPR (N-G): 900 V Voltage protection rating VPR (DC+) - (DC-): 700 V Voltage protection rating VPR (DC+) - G: 900 V Voltage protection rating VPR (DC-) - G: 900 V Nominal discharge current In: 5 kA Mode of protection: L-N L-G N-G (DC+) - (DC-) (DC+) - G (DC-) - G Nominal voltage: 150 VÃDC Rated load current IL: 20 A Power distribution system: Single phase DC Nominal frequency: 50/60 Hz SPD Type: 2CA |
| Standards and regulations | Standards/specifications: IEC 61643-11 Note: 2011 EN 61643-11 Standards/specifications: ENÃ61643-11 Note: 2012 |
| Mounting | Mounting type: on base element |
