| Product properties | IEC test classification: I / II T1 / T2 EN type: T1 / T2 IEC power supply system: TN TT Type: Male Product type: Replacement plug Product family: SEC Family Number of positions: 1 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal frequency fN: 50 Hz (60ÃHz) |
| Connection data | Connection method: pluggable |

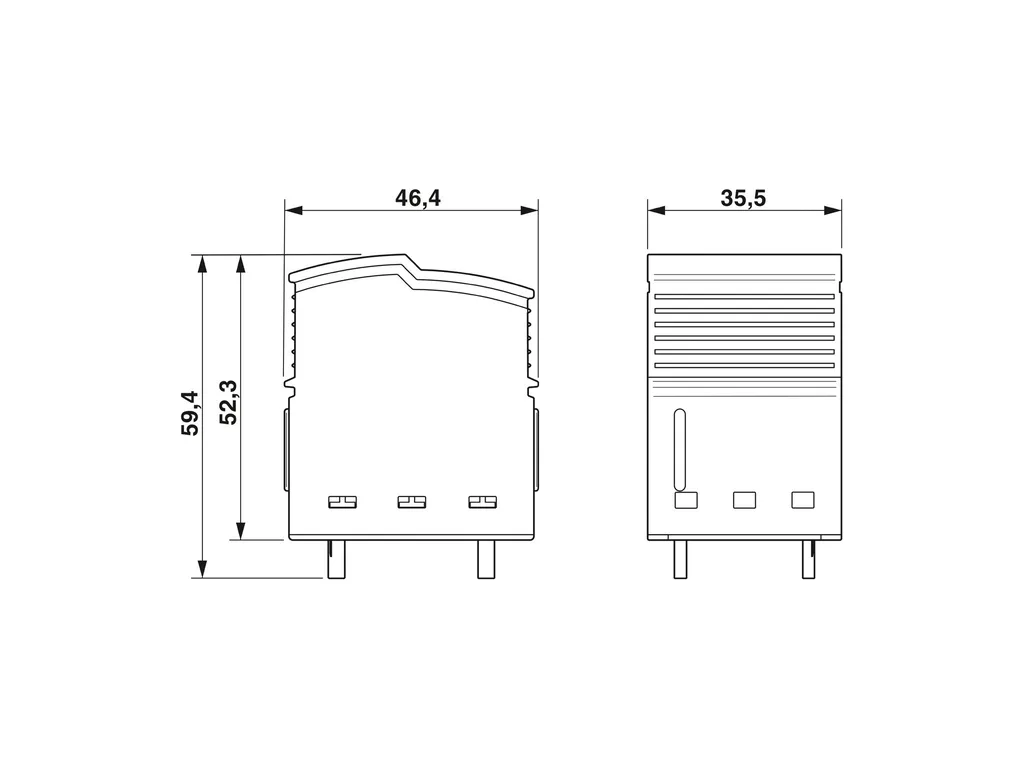

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1a58f52621b8da488117a8b18f8d2431/-S204x204-FJPG Width: 35.5 mm Height: 46.6 mm Depth: 59.4 mm Horizontal pitch: 2 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA6.6-FR 20% GF PBT-FR Material group: I Housing material: PA 6.6-FR 20Ã% GF PBT-FR |
| Protective circuit | Mode of protection: L-N L-PEN Direction of action: L-N / L-PEN Nominal voltage UN: 240ÃVÃAC (TN) 240ÃVÃAC (TT) Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 264 VÃAC Nominal discharge current In (8/20) õs: 50 kA Maximum discharge current Imax (8/20) õs: 100 kA Impulse discharge current (10/350)Ãõs, charge: 25 As Impulse discharge current (10/350)Ãõs, specific energy: 625 kJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 50 kA Follow current interrupt rating Ifi: 50 kA Short-circuit current rating ISCCR: 50 kA Voltage protection level Up: ââ°¤ 2.5 kV Residual voltage Ures: ââ°¤ 2.5 kV (at In) Front of wave sparkover voltage at 6 kV (1.2/50) õs: ââ°¤ 2.5 kV TOV behavior at UT: 415 VÃAC (5Ãs / withstand mode) 760 VÃAC (120Ãmin / withstand mode) Response time tA: ââ°¤ 100 ns Max. backup fuse with branch wiring: 500 A (gG) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (5 - 500 Hz/2.5 h/X, Y, Z) |
| Approvals | UL specifications Maximum continuous operating voltage MCOV: 264 VÃAC Short-circuit current rating (SCCR): 50 kA Voltage protection rating VPR: 1500 V Nominal discharge current In: 20 kA Mode of protection: L-N L-G Nominal voltage: 240ÃVÃAC Power distribution system: Single phase Nominal frequency: 50/60 Hz SPD Type: 1CA |
| Standards and regulations | Standards/specifications: IEC 61643-11 Note: 2011 EN 61643-11 Standards/specifications: ENÃ61643-11 Note: 2012 |
| Mounting | Mounting type: on base element |
