2906807 PHOENIX CONTACT - Technology Bsa

Product properties	IEC test classification: C1 C2 C3 Type: DIN rail module, one-piece Product type: Surge protection for MCR technology Product family: TERMITRAB complete Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 12 VÃDC
Connection data	Connection method: Push-in connection Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12

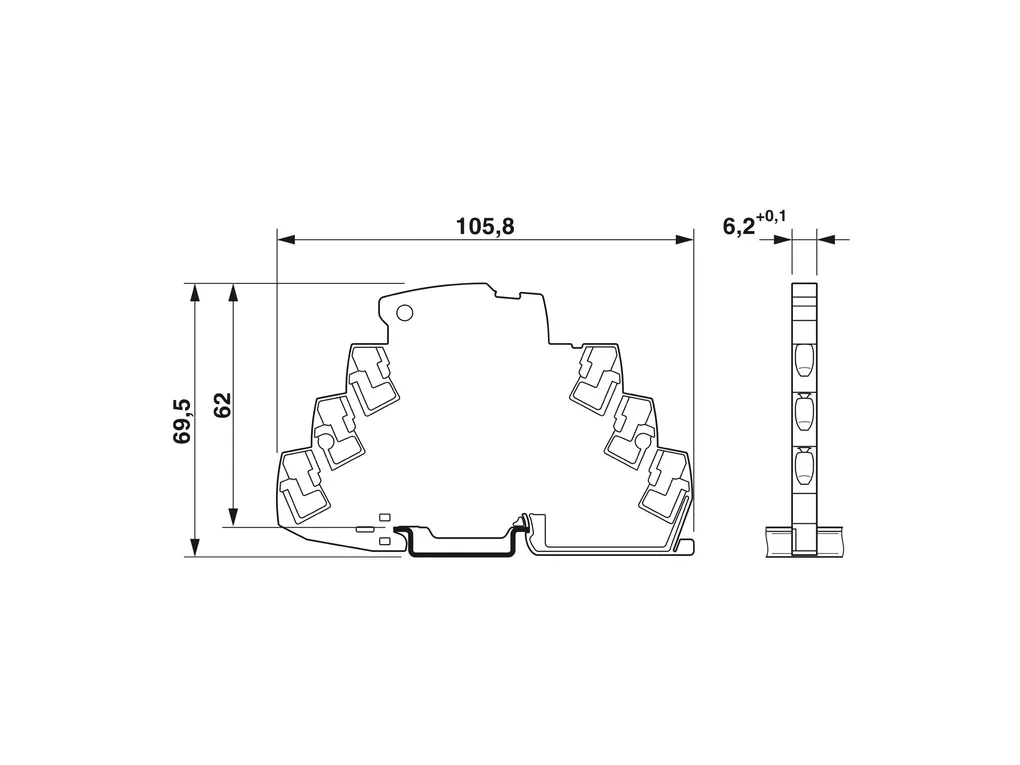

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/08a8d5d69369e344ae6343008a3a9f34/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 105.8 mm Depth: 69.5 mm (incl. DIN rail 7.5Ãmm)
Material specifications	Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Earth Ground Maximum continuous voltage U_C: 15 VÃDC 10 VÃAC Rated current: 6 A (55Ã°C) Residual current I_PE: Ã¢Ã¢°¤ 200 ÃµA Nominal discharge current I_n (8/20) Ãµs (line-ground): 0.5 kA Total discharge current I_total (8/20)ÃÃµs: 2 kA Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 35 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 40 V (C2 - 2 kV/1 kA) Ã¢Ã¢°¤ 25 V (C3 - 25ÃA) Ã¢Ã¢°¤ 25 V (C3 - 100ÃA) Response time t_A (line-earth): Ã¢Ã¢°¤ 1 ns Input attenuation aE, asym.: typ. 0.3 dB (Ã¢Ã¢°¤ 130 kHz/150 Ã©) Cut-off frequency fg (3ÃdB), asym. (PE) in 150ÃÃ© system: typ. 420 kHz Capacity (Core-Earth): typ. 5.2 nF Resistance per path: Ã¢Ã¢°¤ 100 mÃ© Surge protection fault message: none Max. required back-up fuse: 6.3 A (FF) Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 2ÃkV / 1ÃkA C3 - 100ÃA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 %
Standards and regulations	Standards/specifications: IEC 61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 EN 61643-21 Standards/specifications: ENÃ61643-21 Note: 2001 + A1:2009 + A2:2013
Mounting	Mounting type: DIN rail: TH 35 - 7.5 mm
