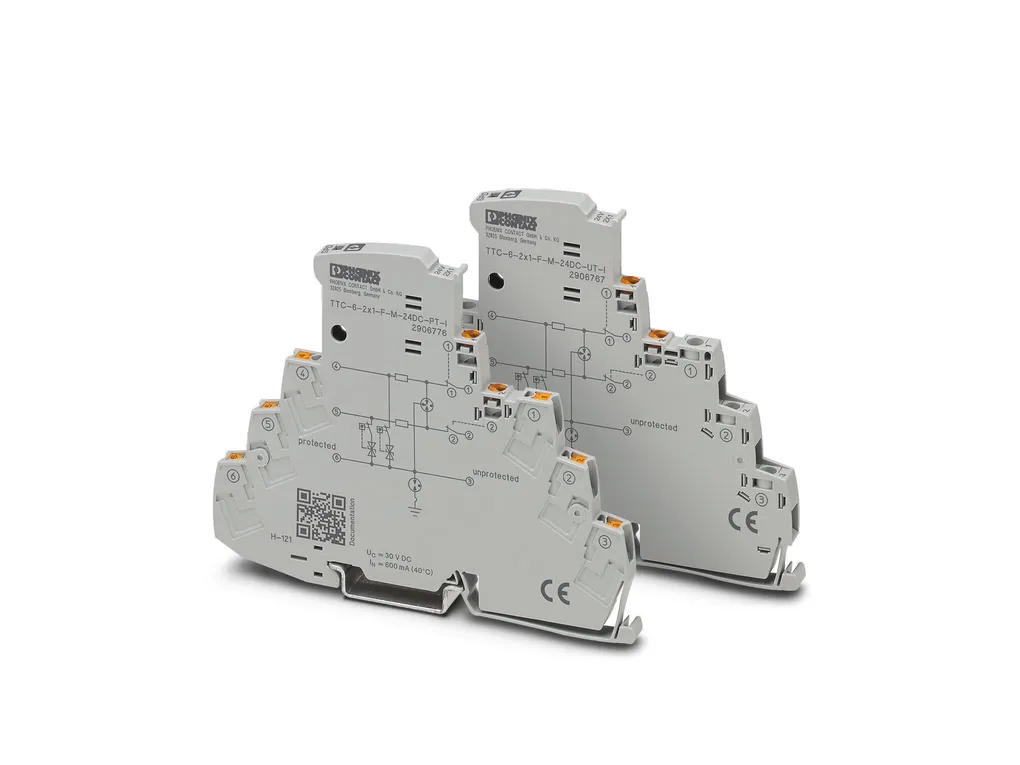

TTC-6-2X1-F-M-24DC-PT-I - Surge protection device

Surge protection with integrated status indicator and disconnect knife for two signal wires with common reference potential. Indirect grounding via gas-filled surge arrester, e.g., Digital IN/OUT.

Cod. Articolo: 2906776 Copia - Copy

Cod. Fornitore: 2906776 Copia - Copy

PHOENIX CONTACT

Product properties	IEC test classification: C1 C2 C3 D1 Type: DIN rail module, one-piece Product type: Surge protection for MCR technology Product family: TERMITRAB complete Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 24 VÃDC
Connection data	Connection method: Push-in connection Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7ab1192fe1594940a57f86a20b455dc8/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 105.8 mm Depth: 83.5 mm (incl. DIN rail 7.5Ãmm)
Material specifications	Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage U_C: 30 VÃDC 21 VÃAC Rated current: 600 mA (40Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 5 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 1 ÃµA Nominal discharge current I_n (8/20) Ãµs (line-ground): 5 kA Nominal discharge current I_n (8/20) Ãµs (line-signal ground): 5 kA Pulse discharge current I_imp (10/350)ÃÃµs (line-earth): 0.5 kA Pulse discharge current I_imp (10/350)ÃÃµs (line-signalground): 0.5 kA Total discharge current I_total (8/20)ÃÃµs: 10 kA Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 750 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 750 V (C2 - 10 kV / 5 kA) Ã¢Ã¢°¤ 1.1 kV (C3 - 25ÃA) Ã¢Ã¢°¤ 1.15 kV (C3 - 100ÃA) Voltage protection level U_p (line-signalground): Ã¢Ã¢°¤ 140 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 130 V (C2 - 10 kV / 5 kA) Ã¢Ã¢°¤ 45 V (C3 - 25ÃA) Ã¢Ã¢°¤ 50 V (C3 - 100ÃA) Voltage protection level U_p static (line-earth): Ã¢Ã¢°¤ 750 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 750 V (C2 - 10 kV / 5 kA) Voltage protection level U_p static (line-signalground): Ã¢Ã¢°¤ 55 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 80 V (C2 - 10 kV / 5 kA) Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Response time t_A (line-signalground): Ã¢Ã¢°¤ 1 ns Input attenuation aE, asym.: typ. 0.3 dB (Ã¢Ã¢°¤ 270 kHz/150 Ã©) Cut-off frequency fg (3ÃdB), asym. (signal ground) in 150ÃÃ© system: typ. 960 kHz Capacity (line-signalground): typ. 2.2 nF Resistance per path: 1.65 Ã© Ã±20Ã% Surge protection fault message: optical Max. required back-up fuse: 630 mA (FF) Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100ÃA D1 - 500ÃA Impulse durability (line-signalground): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100 A D1 - 500ÃA Pulse reset time (line-earth): Ã¢Ã¢°¤ 30Ãms Pulse reset time (line-signalground): Ã¢Ã¢°¤ 300Ãms Additional technical data Max. total discharge current I _{total max} (8/20)ÃÃµs: 20 kA (1x)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 %
Standards and regulations	Standards/specifications: IEC 61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 EN 61643-21 Standards/specifications: ENÃ61643-21 Note: 2001 + A1:2009 + A2:2013
Mounting	Mounting type: DIN rail: TH 35 - 7.5 mm
