2882718 PHOENIX CONTACT - Technology Bsa

Product properties	IEC test classification: II T2 EN type: T2 IEC power supply system: TN TT Type: DIN rail module, two-section, divisible Product type: Replacement plug Number of positions: 1 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal frequency f_N: 50 Hz (60ÃHz)
Connection data	Connection method: pluggable
Dimensions	Width: 11.7 mm Height: 44.8 mm Depth: 56.4 mm Horizontal pitch: 0.6 Div.
Material specifications	Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PBT-FR Material group: I Housing material: PBT-FR

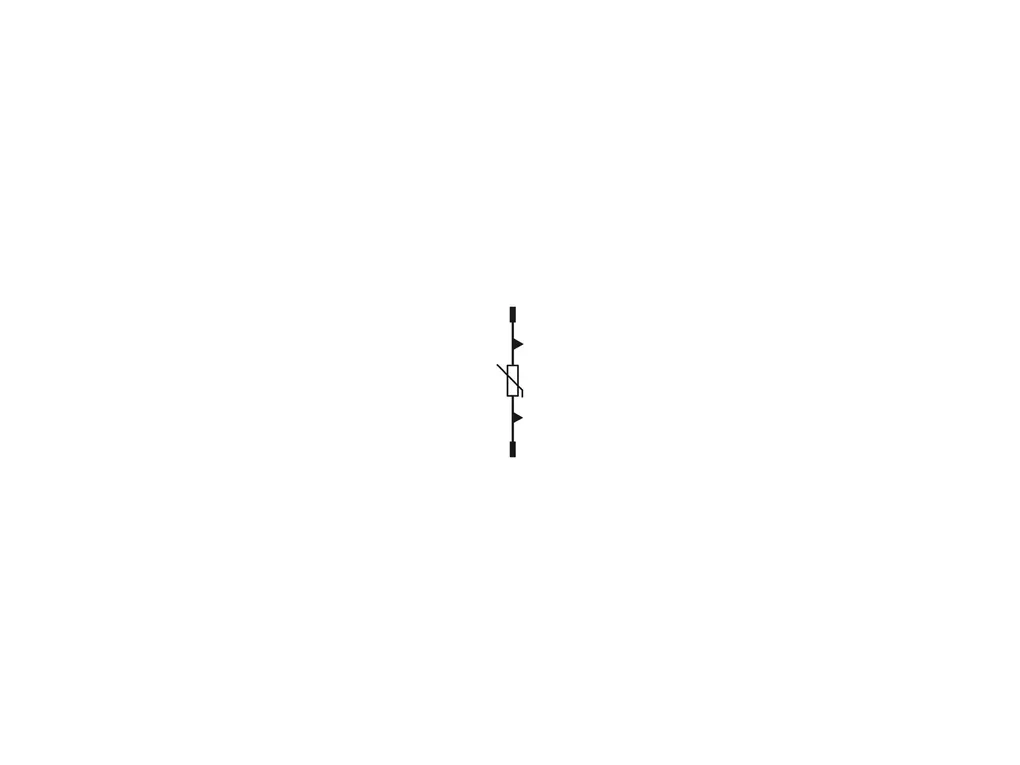

Protective circuit	Mode of protection: L-N L-PEN Direction of action: L-N / L-PEN Nominal voltage U_N: 240ÃVÃAC (TN) 240ÃVÃAC (TT) Nominal frequency f_N: 50 Hz (60ÃHz) Maximum continuous voltage U_C: 350 VÃAC Nominal discharge current I_n (8/20) Ãµs: 20 kA Maximum discharge current I_max (8/20) Ãµs: 30 kA Short-circuit current rating I_SCCR: 25 kA Voltage protection level U_p: Ã¢Ã¢°¤ 1.5 kV Residual voltage U_res: Ã¢Ã¢°¤ 1.5 kV (at I_n) Ã¢Ã¢°¤ 1.3 kV (at 10 kA) Ã¢Ã¢°¤ 1.2 kV (at 5 kA) Ã¢Ã¢°¤ 1.1 kV (at 4 kA) Ã¢Ã¢°¤ 1 kV (at 2 kA) TOV behavior at U_T: 415 VÃAC (5Ãs / withstand mode) 457 VÃAC (120Ãmin / safe failure mode) Response time t_A: Ã¢Ã¢°¤ 25 ns Max. backup fuse with branch wiring: 315 A AC (gG)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
Standards and regulations	Air clearances and creepage distances Standards/regulations: DINÃVDEÃ0110-1 / IEC 60664-1 / IEC 61643-1 Standards/specifications: IEC 61643-11 ENÃ61643-11 Note: 2011 2012
Mounting	Mounting type: on base element
