| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 48.8 mm Height: 140.5 mm Depth: 71.5 mm Note on dimensions: Housing dimensions |
| Notes | Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China. |
| Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps |
| System properties | Module ID code (dec.): 190 ID code (hex): BE Length code (hex): 01 Length code (dec): 01 Process data channel: 16 bit Input address area: 2 Byte Output address area: 0 Byte Register length: 16 bit Required parameter data: 1 Byte Required configuration data: 4 Byte |
| Input data | Digital Input name: Digital inputs Description of the input: EN 61131-2 type 1 Number of inputs: 16 Connection method: Spring-cage connection Connection technology: 3-conductor Input voltage: 24 VÃDC Input voltage range "0" signal: -3 VÃDC ... 5 VÃDC Input voltage range "1" signal: 15 VÃDC ... 30 VÃDC Nominal input voltage UIN: 24 VÃDC Nominal input current at UIN: min. 3 mA (at nominal voltage) Sensor current per channel: max. 250 mA Typical response time: < 1 ms Delay at signal change from 0 to 1: 1 ms Delay at signal change from 1 to 0: 1 ms |

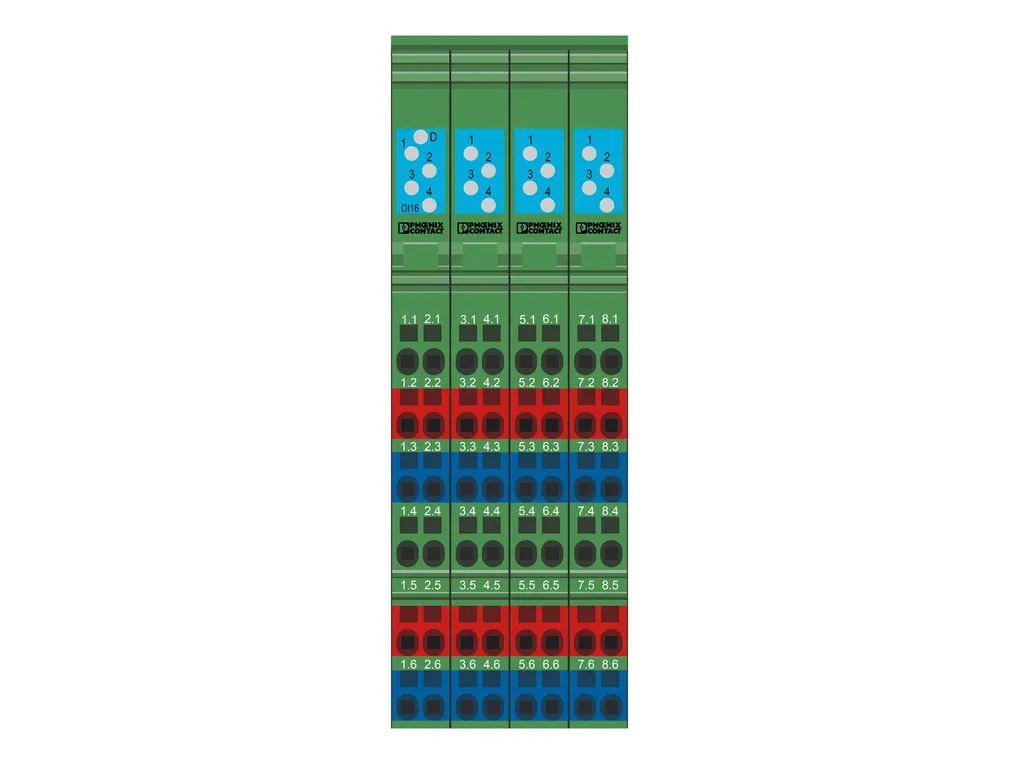

| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields No. of channels: 16 Operating mode: Process data mode with one word Insulation characteristics Overvoltage category: II (IEC 60664-1, ENÃ60664-1) Pollution degree: 2 (IEC 60664-1, ENÃ60664-1) |
| Electrical properties | No. of channels: 16 Maximum power dissipation for nominal condition: 14.5 W Potentials: Communications power (U Supply voltage: 7.5 VÃDC (via voltage jumper) Current draw: max. 60 mA Power consumption: max. 0.45 W Potentials: Segment circuit supply (U Supply voltage: 24 VÃDC (via voltage jumper) Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 4 A 0 A (without sensors) Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O): 500 VÃAC, 50 Hz, 1 min. Test voltage: 24ÃV supply (I/O) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: 7.5ÃV supply (bus logic)/functional ground: 500 VÃAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1) |
| Mounting | Mounting type: DIN rail mounting |
