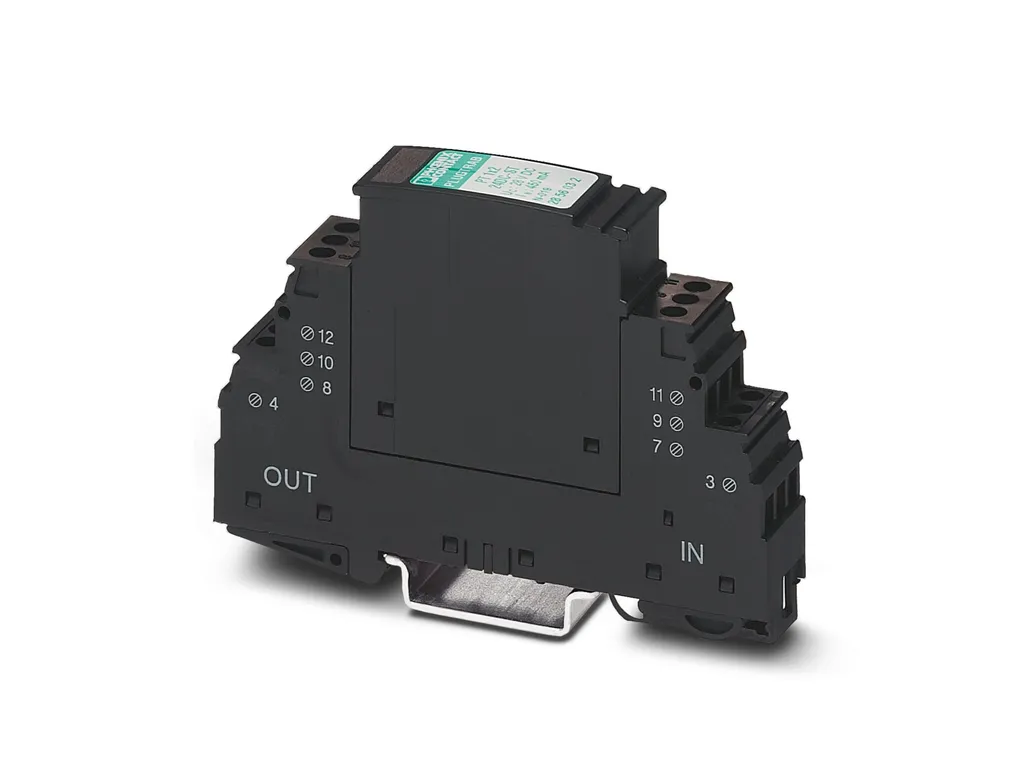

2856029 PHOENIX CONTACT - Technology Bsa

Notes	General Note: Technical data is valid in association with the following specified base elements: PT 1X2+F-BE 2856126 PT 1X2-BE 2856113
Product properties	IEC test classification: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Surge protection fault message: none Arrester can be tested with CHECKMASTER from software version:: From SW rev. 1.00 Wire pairs per module: 1 Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 12 VÃDC
Connection data	Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 52 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm
Material specifications	Color: Copper Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage U_C: 13 VÃDC 9 VÃAC Rated current: 450 mA (45Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 5 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 1 ÃµA (with PT 1X2+F-BE) Ã¢Ã¢°¤ 2 ÃµA (with PT 1X2-BE) Nominal discharge current I_n (8/20) Ãµs (line-line): 10 kA Nominal discharge current I_n (8/20) Ãµs (line-ground): 10 kA Pulse discharge current I_imp (10/350)ÃÃµs: 2.5 kA Total discharge current I_total (8/20)ÃÃµs: 20 kA Max. discharge current I_max (8/20) Ãµs maximum (line-line): 10 kA Max. discharge current I_max (8/20) Ãµs maximum (line-earth): 10 kA Nominal pulse current Ian (10/1000) Ãµs (line-line): 67 A Output voltage limitation at 1 kV/Ãµs (line-line) spike: Ã¢Ã¢°¤ 20 V Output voltage limitation at 1 kV/Ãµs (line-earth) spike: Ã¢Ã¢°¤ 450 V (with PT 1X2-BE) Ã¢Ã¢°¤ 1 kV (with PT 1X2+F-BE) Output voltage limitation at 1 kV/Ãµs (line-line) static: Ã¢Ã¢°¤ 18 V Output voltage limitation at 1 kV/Ãµs (line-earth) static: Ã¢Ã¢°¤ 25 V (with PT 1X2-BE) Ã¢Ã¢°¤ 50 V (with PT 1X2+F-BE) Residual voltage at I_n (conductor-conductor): Ã¢Ã¢°¤ 18 V Residual voltage with Ian (10/1000) Ãµs (line-line): Ã¢Ã¢°¤ 23 V Voltage protection level U_p (line-line): Ã¢Ã¢°¤ 50 V (C2 - 10 kV / 5 kA) Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 450 V (C1 - 1ÃkV / 500ÃA with PT 1X2-BE) Ã¢Ã¢°¤ 1000 V (C2 - 10ÃkV / 5ÃkA with PT 1X2+F-BE) Voltage protection level U_p static (line-line): Ã¢Ã¢°¤ 18 V (C2 - 10 kV / 5 kA) Voltage protection level U_p static (line-earth): Ã¢Ã¢°¤ 50 V (C2 - 10ÃkV / 5ÃkA with PT 1X2-BE) Ã¢Ã¢°¤ 100 V (C2 - 10ÃkV / 5ÃkA with PT 1X2+F-BE) Response time t_A (line-line): Ã¢Ã¢°¤ 1 ns Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Input attenuation aE, sym.: typ. 0.5 dB (Ã¢Ã¢°¤ 600 kHz / 50 Ã©) typ. 0.2 dB (Ã¢Ã¢°¤ 200 kHz / 150 Ã©) typ. 0.1 dB (Ã¢Ã¢°¤Ã50ÃkHzÃ/Ã600ÃÃ©) Cut-off frequency fg (3ÃdB), sym. in 50ÃÃ© system: typ. 3 MHz Cut-off frequency fg (3ÃdB), sym. in 150ÃÃ© system: typ. 1 MHz Cut-off frequency fg (3ÃdB), sym. in 600ÃÃ© system: typ. 300 kHz Capacity (Core-Core): typ. 3 nF Capacity (Core-Earth): typ. 4 pF (with PT 1X2-BE) typ. 2 pF (with PT 1X2+F-BE) Resistance per path: 2.2 Ã© Ã±10Ã% Surge protection fault message: none Max. required back-up fuse: 500 mA (T) Impulse durability (line-line): C2 - 10ÃkV / 5ÃkA C3 - 67ÃA Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA D1 - 2.5ÃkA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl)
Standards and regulations	Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013
Mounting	Mounting type: on base element
