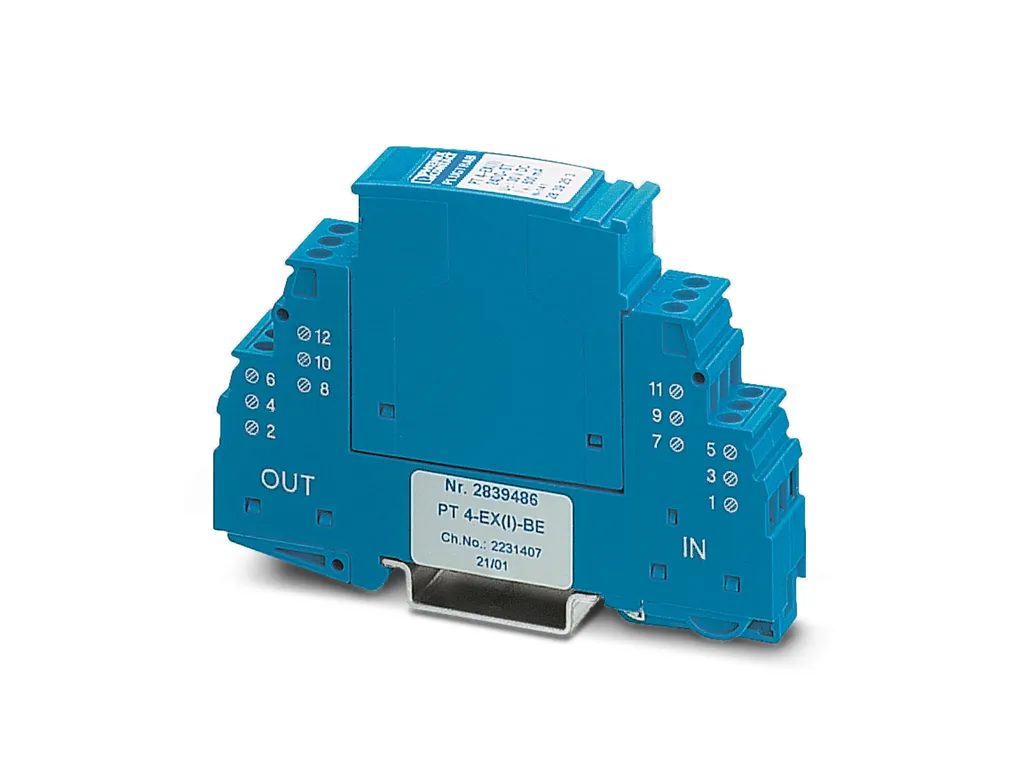

| Product properties | IEC test classification: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Number of positions: 4 Arrester can be tested with CHECKMASTER from software version:: From SW rev. 1.00 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 24 VÃDC |
| Connection data | Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Ex data | Maximum inner capacitance Ci: 1.1 nF Max. internal inductance Li: 1 õH Max. input current Ii: 500 mA (T4 / ââ°¤ 80°C) 500 mA (T5 / ââ°¤ 55°C) 500 mA (T6 / ââ°¤Ã40ðC) Max. input voltage Ui: 30 VÃDC max. input power Pi: 850 mW (T4 / ââ°¤ 80°C) 700 mW (T5 / ââ°¤ 55°C) 700 mW (T6 / ââ°¤Ã40ðC) Maximum inner time factor (Ri/Li): ââ°¤ 10 õs Ambient temperature (operation): -40°C ... 80°C (T4) -40°C ... 55°C (T5) -40°C ... 40°C (T6) |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.7 mm Height: 44.8 mm Depth: 51.7 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Signal Ground/Shield & Signal Ground/Shield-Earth Ground Maximum continuous voltage UC: 30 VÃDC 21 VÃAC Rated current: 500 mA (40ðC) Operating effective current IC at UC: ââ°¤ 5 õA Residual current IPE: ââ°¤ 4 õA Nominal discharge current In (8/20) õs (line-line): 308 A Nominal discharge current In (8/20) õs (line-ground): 10 kA Pulse discharge current Iimp (10/350)Ãõs (line-earth): 1 kA 2 kA (in total) Total discharge current Itotal (8/20)Ãõs: 20 kA Total discharge current Itotal (10/350)Ãõs: 2 kA Max. discharge current Imax (8/20) õs maximum (line-line): 308 A Max. discharge current Imax (8/20) õs maximum (line-earth): 20 kA (in total) Nominal pulse current Ian (10/1000) õs (line-line): 59 A Output voltage limitation at 1 kV/õs (line-line) spike: ââ°¤ 45 V Output voltage limitation at 1 kV/õs (line-earth) spike: ââ°¤ 1 kV Output voltage limitation at 1 kV/õs (line-line) static: ââ°¤ 45 V Output voltage limitation at 1 kV/õs (line-earth) static: ââ°¤ 1 kV Residual voltage at In (conductor-conductor): ââ°¤ 70 V Residual voltage with Ian (10/1000) õs (line-line): ââ°¤ 65 V Voltage protection level Up (line-line): ââ°¤ 60 V (C1 - 500ÃV / 250ÃA) ââ°¤ 50 V (C3 - 10ÃA) ââ°¤ 50 V (C3 - 25ÃA) Voltage protection level Up (line-earth): ââ°¤ 1 kV (C1 - 1ÃkV / 500ÃA) ââ°¤ 1 kV (C2 - 2 kV/1 kA) ââ°¤ 1 kV (C2 - 10 kV / 5 kA) ââ°¤ 1 kV (D1 - 1 kA) Response time tA (line-line): ââ°¤ 1 ns Response time tA (line-earth): ââ°¤ 100 ns Input attenuation aE, sym.: typ. 0.1 dB (ââ°¤ 1 MHz / 50 é) typ. 0.1 dB (ââ°¤ 500 kHz / 150 é) typ. 0.1 dB (ââ°¤ 100 kHz / 600 é) Cut-off frequency fg (3ÃdB), sym. in 50Ãé system: typ. 7 MHz Cut-off frequency fg (3ÃdB), sym. in 150Ãé system: typ. 2.5 MHz Cut-off frequency fg (3ÃdB), sym. in 600Ãé system: typ. 600 kHz Resistance per path: 0 é Surge protection fault message: none Max. required back-up fuse: 500 mA (T) Impulse durability (line-line): C1 - 0.5ÃkV / 250ÃA C3 - 10ÃA C3 - 25ÃA Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 2ÃkV / 1ÃkA C2 - 10ÃkV / 5ÃkA D1 - 1ÃkA Alternating current carrying capacity (line-earth): 5 A - 1 s |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) |
| Approvals | Conformity/Approvals ATEX: ïà II 1G Ex ia IIC T4...T6 Ga ïà II 1D Ex ia IIIC T135°C...T85°C Da IECEx: Ex ia IIC T4...T6 Ga Ex ia IIIC T135°C...T85°C Da |
| Standards and regulations | Standards/specifications: ENÃ61643-21 ENÃ60079-0 ENÃ60079-11 IEC 61643-21 IEC 60079-0 IEC 60079-11 Note: A2:2013 2018 2012 A2:2012 2017 2011 |
| Mounting | Mounting type: on base element |
