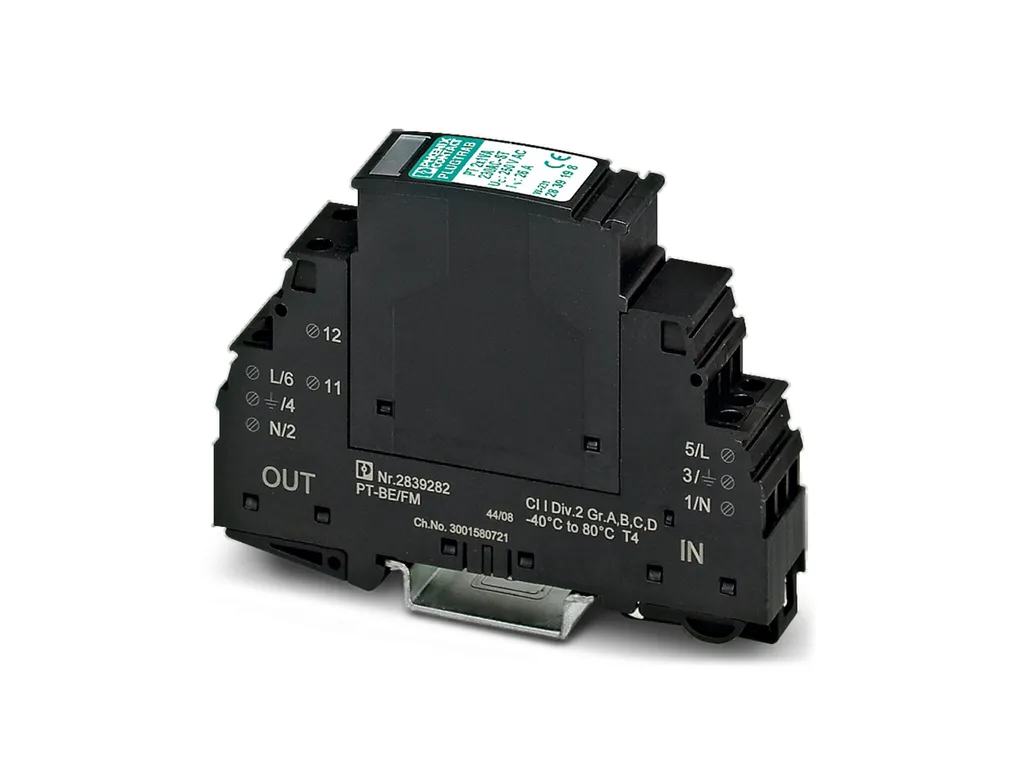

| Notes | General Note: Technical data is valid in association with the following specified base elements: PT -BE/ FM 2839282 |
| Product properties | IEC test classification: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Arrester can be tested with CHECKMASTER from software version:: From SW rev. 1.00 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 230 VÃAC (50/60ÃHz) Indicator/remote signaling Switching function: N/C contact |
| Connection data | Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/40032efc4a305a41a7ebbdfd90d81bc4/-S204x204-FJPG Width: 17.5 mm Height: 44.8 mm Depth: 51.7 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Color: Copper Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage UC: 275 VÃDC 275 VÃAC (50/60ÃHz) Rated current: 26 A AC (30ðC) 1 AÃDC (82ðC) Operating effective current IC at UC: ââ°¤ 1.5 mA AC ââ°¤ 2 mA DC Residual current IPE: ââ°¤ 3 mA AC ââ°¤ 4 mA DC Nominal discharge current In (8/20) õs (line-ground): 2.5 kA Pulse discharge current Iimp (10/350)Ãõs: 500 A Total discharge current Itotal (8/20)Ãõs: 5 kA Output voltage limitation at 1 kV/õs (line-earth) spike: ââ°¤ 650 V Output voltage limitation at 1 kV/õs (line-earth) static: ââ°¤ 650 V Voltage protection level Up (line-earth): ââ°¤ 750 V (C1 - 1.4 kV / 0.7 kA) ââ°¤ 900 V (C2 - 5 kV/2,5 kA) ââ°¤ 750 V (C3 - 100ÃA) Response time tA (line-earth): ââ°¤ 25 ns Input attenuation aE, asym.: typ. 0.3 dB (ââ°¤ 650 kHz / 150 é) Cut-off frequency fg (3ÃdB), asym. (signal ground) in 150Ãé system: typ. 2.2 MHz Capacity (Core-Earth): typ. 1 nF Surge protection fault message: optical Max. required back-up fuse: 25 A AC (gL/gG) 1 AÃDC (T) Impulse durability (line-earth): C1 - 1,4 kV / 0,7 kA C2 - 5ÃkV / 2.5ÃkA C3 - 100ÃA D1 - 500ÃA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) |
| Standards and regulations | Standards/specifications: IEC 61643 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013 |
| Mounting | Mounting type: on base element |
