| Notes | General Note: 100 % lightning impulse sparkover voltage (1.2/50) õs ââ°¤ 4.0 kV |
| Product properties | IEC test classification: I T1 EN type: T1 IEC power supply system: TT TN-S Type: DIN rail module, one-piece Product type: Combination type Number of positions: 1 Surge protection fault message: none Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal frequency fN: 50 Hz (60ÃHz) Nominal voltage UN: 230 VÃAC (400ÃVÃAC) |
| Connection data | Connection method: Screw connection Screw thread: M6 Tightening torque: 8 Nm Stripping length: 14.5 mm Conductor cross section flexible: 16 mm² ... 35 mm² Conductor cross section rigid: 10 mm² ... 50 mm² Conductor cross section AWG: 6 ... 1 |

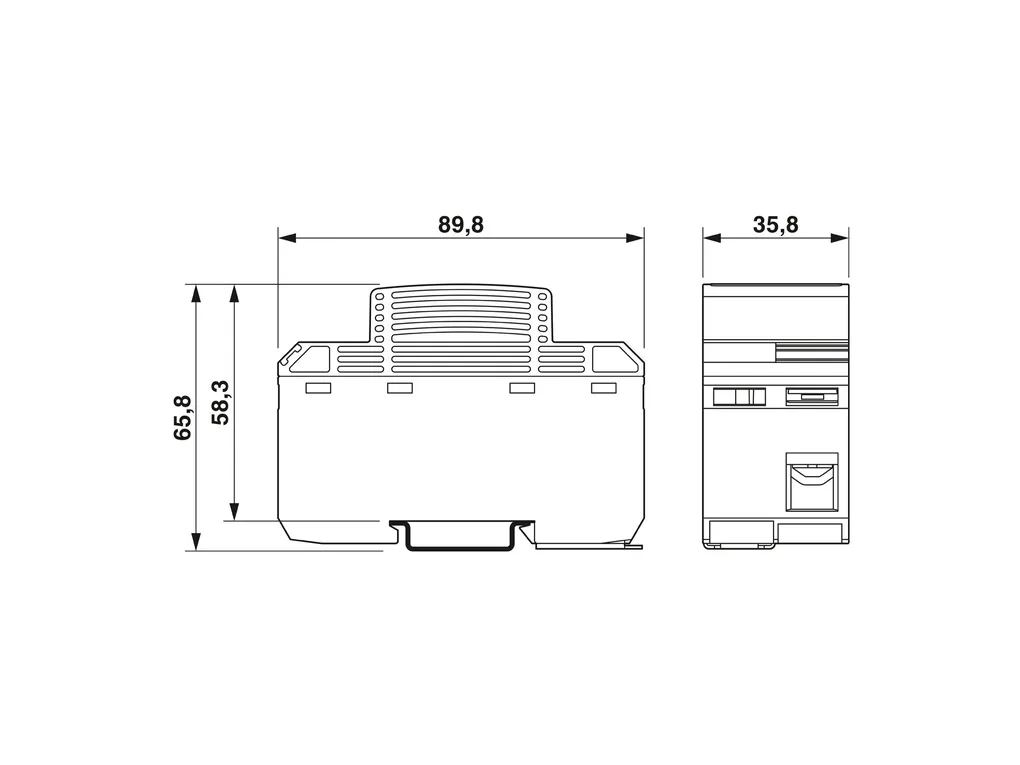

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3fc3e8408653964ab5978ac207232c2e/-S204x204-FJPG Width: 35.8 mm Height: 89.8 mm Depth: 65.8 mm Horizontal pitch: 2 Div. |
| Material specifications | Color: Copper Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PBT Material group: I Housing material: PBT |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Mode of protection: N-PE Direction of action: N-PE Nominal voltage UN: 230/400ÃVÃAC (TN - only N-PE) 230/400ÃVÃAC (TT - only N-PE) Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 260 VÃAC Rated load current IL: 80 A Residual current IPE: ââ°¤ 0.1 mA Standby power consumption PC: ââ°¤ 26 mVA Nominal discharge current In (8/20) õs: 100 kA Impulse discharge current (10/350)Ãõs, charge: 50 As Impulse discharge current (10/350)Ãõs, specific energy: 2.5 MJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 100 kA Follow current interrupt rating Ifi: 100 A (260 V AC) Voltage protection level Up: ââ°¤ 5.5 kV Front of wave sparkover voltage at 6 kV (1.2/50) õs: ââ°¤ 5.5 kV TOV behavior at UT: 1200 VÃAC (200Ãms / withstand mode) Response time tA: ââ°¤ 100 ns |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (only when all terminal points are used) Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: ENÃ60664-1 / ENÃ61643-11 Standards/specifications: IEC 61643-11 ENÃ61643-11 Note: 2011 2012 |
| Mounting | Mounting type: DIN rail: 35 mm |
