2804649 PHOENIX CONTACT - Technology Bsa

Product properties	IEC test classification: C1 C2 C3 D1 Type: DIN rail module, one-piece Product type: Surge protection for MCR technology Product family: LINETRAB Surge protection fault message: none Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 24 VÃDC
Connection data	Connection method: Screw connection Screw thread: M3 Tightening torque: 0.8 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14

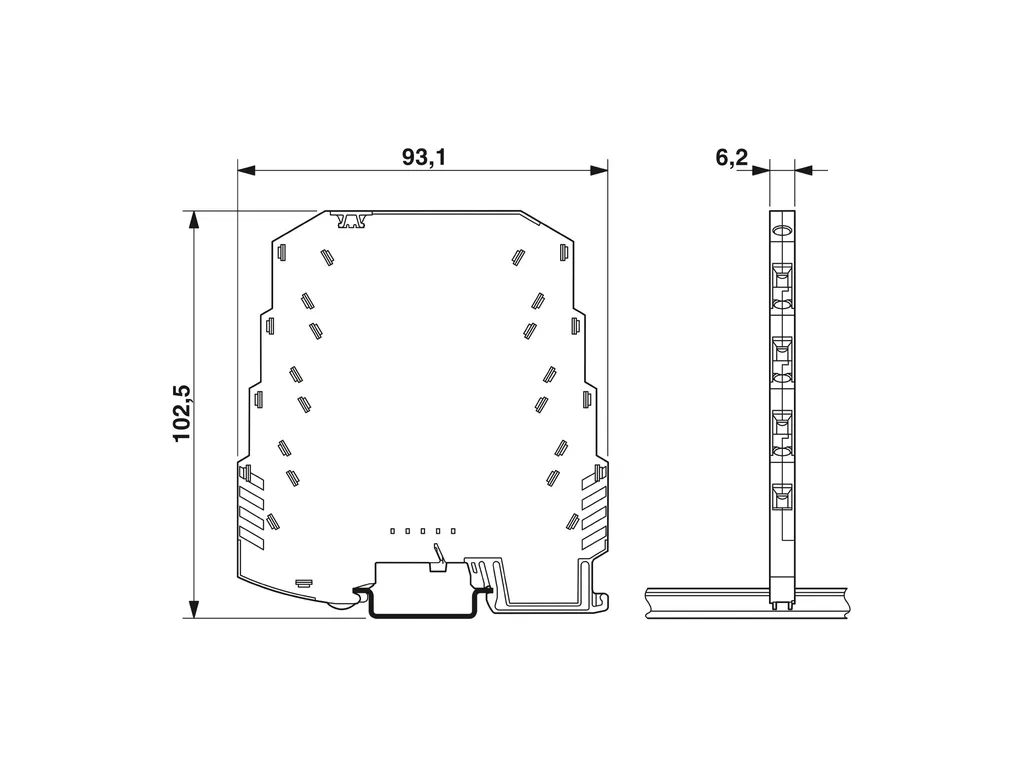

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8b094a2420d51643a9451cfc2d222666/-S204x204-FJPG Width: 6.2 mm Height: 93.1 mm Depth: 102.5 mm (incl. DIN rail 7.5Ãmm)
Material specifications	Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Earth Ground Maximum continuous voltage U_C: 36 VÃDC 25 VÃAC Rated current: 350 mA (40Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 2 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 8 ÃµA Nominal discharge current I_n (8/20) Ãµs (line-ground): 5 kA Pulse discharge current I_imp (10/350)ÃÃµs (line-earth): 500 A 2 kA (in total) Total discharge current I_total (8/20)ÃÃµs: 20 kA Max. discharge current I_max (8/20) Ãµs maximum (line-earth): 10 kA 20 kA (in total) Nominal pulse current Ian (10/1000) Ãµs (line-earth): 50 A 200 A (in total) Output voltage limitation at 1 kV/Ãµs (line-earth) spike: Ã¢Ã¢°¤ 60 V Residual voltage at I_n (conductor-ground): Ã¢Ã¢°¤ 50 V Residual voltage with Ian (10/1000) Ãµs (line-earth): Ã¢Ã¢°¤ 60 V Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 60 V (C1 - 500ÃV / 250ÃA) Ã¢Ã¢°¤ 95 V (C2 - 10 kV / 5 kA) Ã¢Ã¢°¤ 55 V (C3 - 10ÃA) Ã¢Ã¢°¤ 55 V (C3 - 50ÃA) Ã¢Ã¢°¤ 250 V (D1 - 500ÃA) Response time t_A (line-earth): Ã¢Ã¢°¤ 1 ns Input attenuation aE, asym.: typ. 0.3 dB (1ÃMHz/50ÃÃ©) typ. 0.2 dB (350 kHz / 150 Ã©) Cut-off frequency fg (3ÃdB), asym. (PE) in 50ÃÃ© system: typ. 6 MHz Cut-off frequency fg (3ÃdB), asym. (PE) in 150ÃÃ© system: typ. 2 MHz Capacity: Ã¢Ã¢°¤ 1.3 nF (per channel) Resistance per path: 3.3 Ã© Ã±20Ã% Surge protection fault message: none Max. required back-up fuse: 315 mA (T) Impulse durability (line-earth): C1 - 500ÃV / 250ÃA C2 - 10ÃkV / 5ÃkA C3 - 50ÃA D1 - 500ÃA Alternating current carrying capacity (line-earth): 5 A - 1 s
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl)
Standards and regulations	Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: A2:2012 2001 + A1:2009 + A2:2013
Mounting	Mounting type: DIN rail: 35 mm
