| Notes | General Note: Remote signaling as well as the power supply are established by inserting the connector into the base element. |

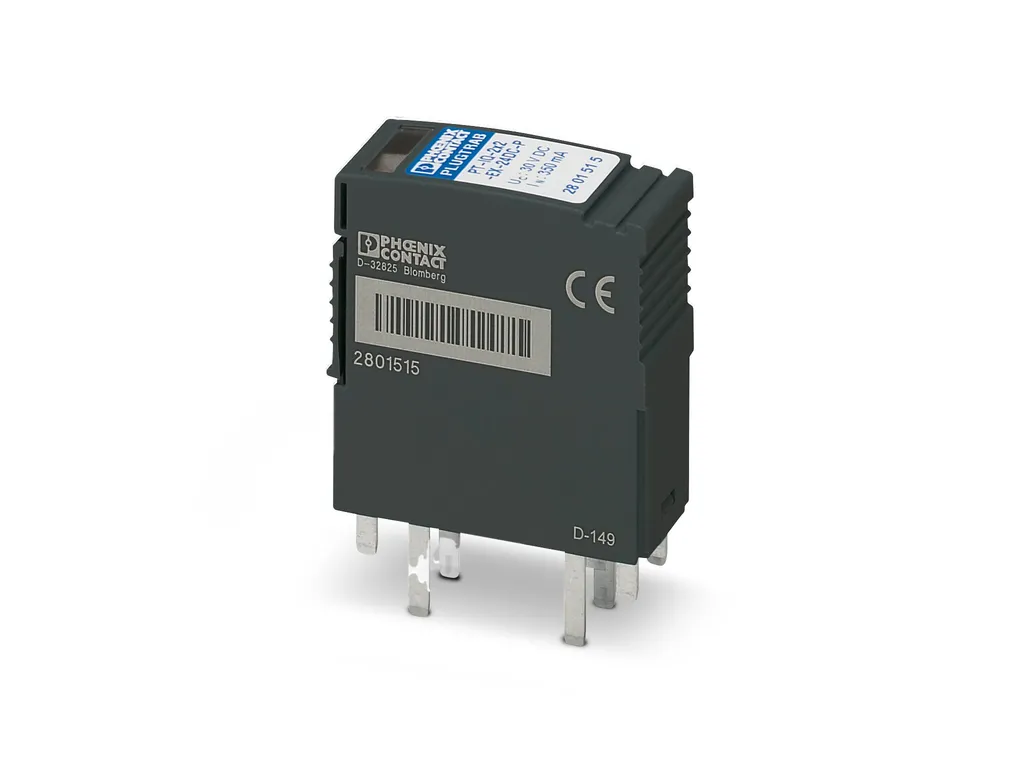

| Product properties | Type: Male Product type: Replacement plug Product family: PLUGTRAB IQ Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 24 VÃDC |
| Connection data | Connection method: pluggable |

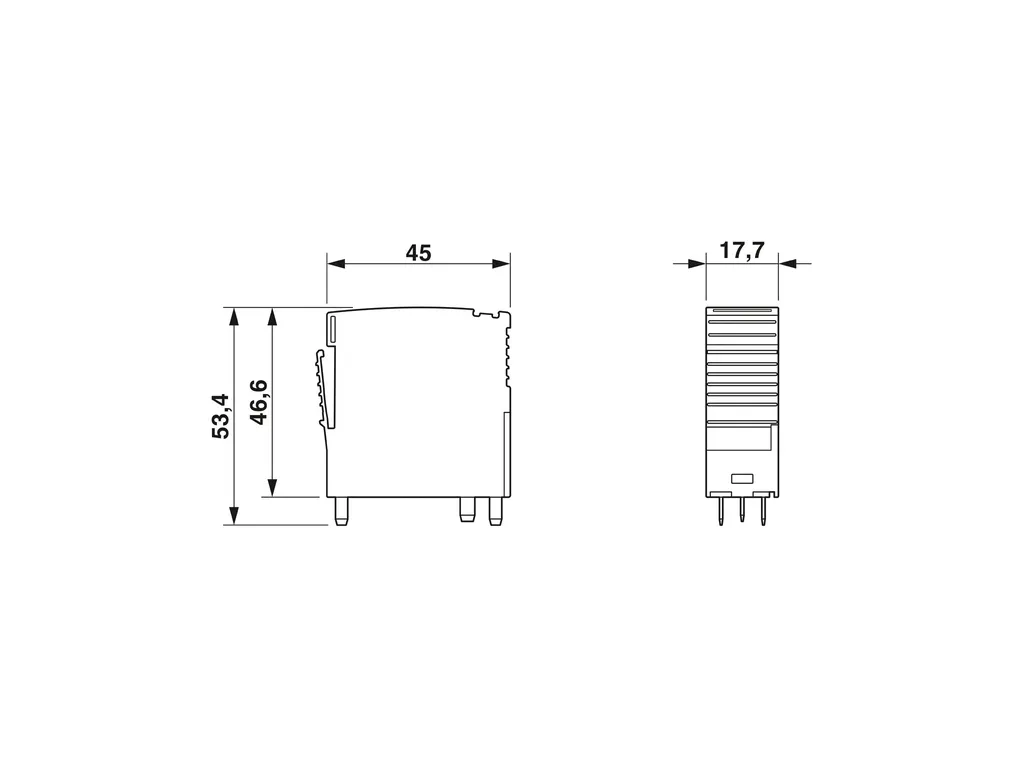

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b5446f667583404eaa1a059846ff2429/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 53.4 mm Horizontal pitch: 1 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Protective circuit | Maximum continuous voltage UC: 30 VÃDC 21 VÃAC Rated current: 350 mA Surge protection fault message: Optical, multi-stage |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) |
| Standards and regulations | Standards/specifications: ENÃ61643-21 IEC 61643-21 ENÃ60079-0 ENÃ60079-11 ENÃ60079-15 IEC 60079-0 IEC 60079-11 IEC 60079-15 Note: A2:2013 A2:2012 2018 2012 2010 2017 2011 2010 |
| Mounting | Mounting type: on base element |
