PT-IQ-5-HF+F-12DC-PT - Surge protection device

Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for five signal wires. For HF applications and telecommunications interfaces without supply voltage (up to 90 Mbps).

Cod. Articolo: 2801295 Copia - Copy

Cod. Fornitore: 2801295 Copia - Copy

PHOENIX CONTACT

Notes	General Note: Remote signaling as well as the power supply of the DIN rail connector are established by snapping the module into place on the DIN rail connector.
Product properties	IEC test classification: C1 C2 C3 D1 Type: DIN rail module, two-section, divisible Product type: Surge protection for information technology Product family: PLUGTRAB IQ Surge protection fault message: Optical, multi-stage Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 12 VÃDC
Connection data	Connection method: Push-in connection Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12
Interfaces	Transmission speed: 90 Mpbs

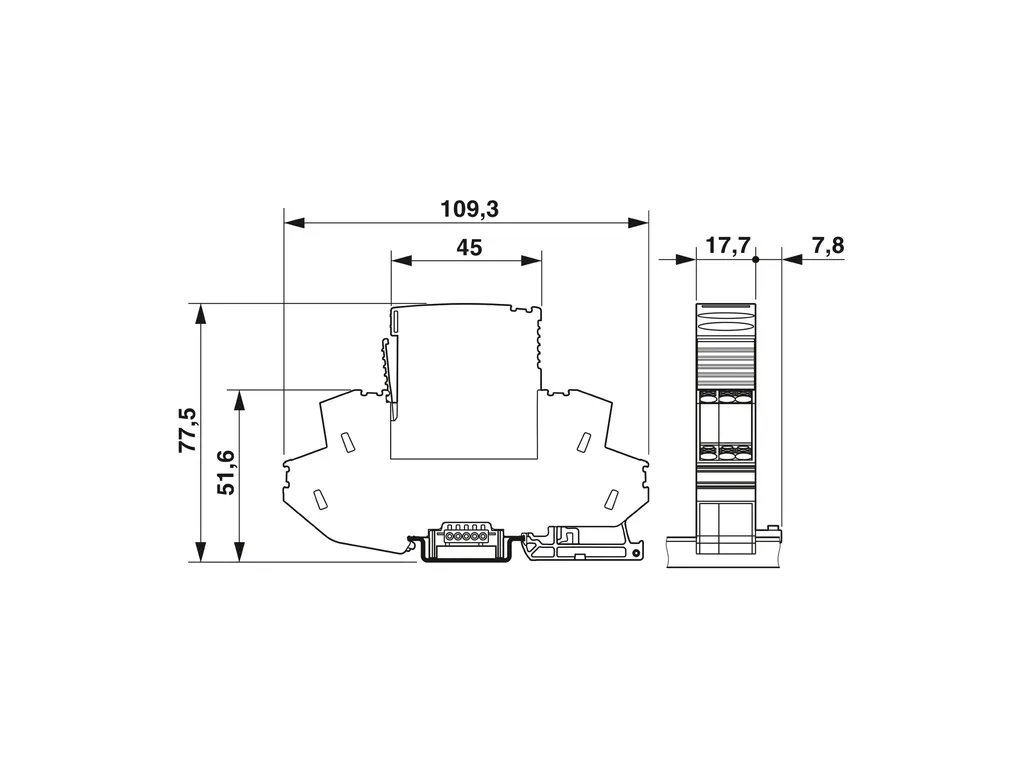

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fec67ec3dcbbe64eb7bc973ba4b86189/-S204x204-FJPG Width: 17.7 mm Height: 109.3 mm Depth: 77.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div.
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage U_C: 15 VÃDC 10 VÃAC Rated current: 600 mA (40Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 100 ÃµA (per path) Residual current I_PE: Ã¢Ã¢°¤ 10 ÃµA (per path) Nominal discharge current I_n (8/20) Ãµs (line-line): 10 kA Nominal discharge current I_n (8/20) Ãµs (line-ground): 10 kA Nominal discharge current I_n (8/20) Ãµs (line-signal ground): 10 kA Pulse discharge current I_imp (10/350)ÃÃµs (line-earth): 2.5 kA Total discharge current I_total (8/20)ÃÃµs: 20 kA Voltage protection level U_p (line-line): Ã¢Ã¢°¤ 90 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 40 V (C3 - 25ÃA) Ã¢Ã¢°¤ 40 V (C3 - 50ÃA) Ã¢Ã¢°¤ 145 V (C2 - 10 kV / 5 kA) Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 730 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 900 V (C2 - 10 kV / 5 kA) Ã¢Ã¢°¤ 900 V (C3 - 25ÃA) Ã¢Ã¢°¤ 900 V (C3 - 50ÃA) Voltage protection level U_p (line-signalground): Ã¢Ã¢°¤ 90 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 40 V (C3 - 25ÃA) Ã¢Ã¢°¤ 40 V (C3 - 50ÃA) Ã¢Ã¢°¤ 145 V (C2 - 10 kV / 5 kA) Voltage protection level U_p static (line-line): Ã¢Ã¢°¤ 55 V (C1 - 1ÃkV / 500ÃA) Voltage protection level U_p static (line-signalground): Ã¢Ã¢°¤ 55 V (C1 - 1ÃkV / 500ÃA) Response time t_A (line-line): Ã¢Ã¢°¤ 1 ns Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Response time t_A (line-signalground): Ã¢Ã¢°¤ 1 ns Input attenuation aE, sym.: typ. 0.3 dB (Ã¢Ã¢°¤ 10 MHz/150 Ã©) Input attenuation aE, asym.: typ. 0.3 dB (Ã¢Ã¢°¤ 10 MHz/150 Ã©) Cut-off frequency fg (3ÃdB), sym. in 150ÃÃ© system: typ. 60 MHz Cut-off frequency fg (3ÃdB), asym. (signal ground) in 150ÃÃ© system: typ. 60 MHz Capacity (Core-Core): typ. 30 pF Capacity (line-signalground): typ. 30 pF Resistance per path: 1.2 Ã© Ã±5Ã% Surge protection fault message: Optical, multi-stage Max. required back-up fuse: 600 mA (FF) Impulse durability (line-line): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C2 - 10ÃkA C3 - 25ÃA C3 - 50ÃA Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C2 - 10ÃkA C3 - 25ÃA C3 - 50ÃA D1 - 2.5ÃkA Impulse durability (line-signalground): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C2 - 10ÃkA C3 - 25ÃA C3 - 50ÃA Pulse reset time (line-line): Ã¢Ã¢°¤ 15Ãms Pulse reset time (line-earth): Ã¢Ã¢°¤ 15Ãms Pulse reset time (line-signalground): Ã¢Ã¢°¤ 15Ãms
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl)
Standards and regulations	Standards/specifications: IEC 61643-21 ENÃ61643-21 ENÃ61000-6-2 ENÃ61000-6-3 Note: 2000 + A1:2008 + A2:2012 2001 + A1:2009 + A2:2013 2005 2007 + A1:2011
Mounting	Mounting type: DIN rail: 35 mm
