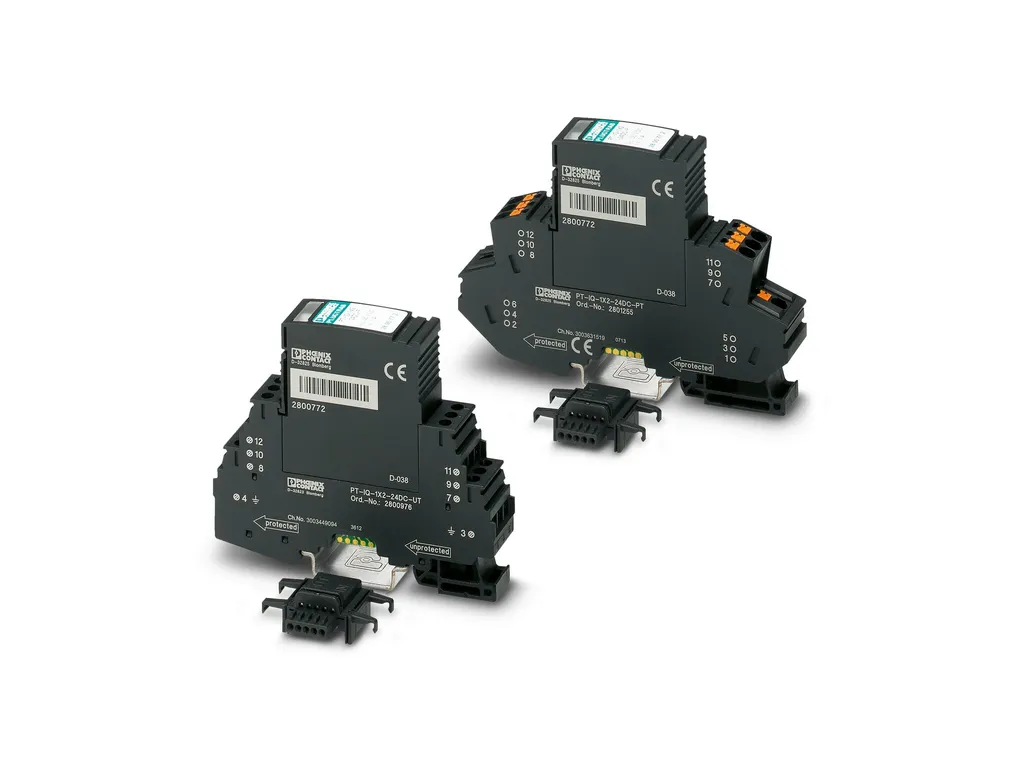

PT-IQ-1X2-TELE-PT - Surge protection device

Surge protective device, consisting of plug and base element, with integrated multi-stage status indicator on the module, for protecting a double wire for analog and digital telecommunications interfaces (VDSL up to 50 Mbps, on short paths (< 300 m) up to 100 Mbps).

Cod. Articolo: 2801290 Copia - Copy

Cod. Fornitore: 2801290 Copia - Copy

PHOENIX CONTACT

Notes	General Note: Remote signaling as well as the power supply of the DIN rail connector are established by snapping the module into place on the DIN rail connector.
Product properties	IEC test classification: B2 C1 C2 C3 D1 VDE requirement class: B2 C1 C2 C3 D1 Type: DIN rail module, two-section, divisible Product type: Surge protection for information technology Product family: PLUGTRAB IQ Surge protection fault message: Optical, multi-stage Wire pairs per module: 1 Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 180 VÃDC
Connection data	Connection method: Push-in connection Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fec67ec3dcbbe64eb7bc973ba4b86189/-S204x204-FJPG Width: 17.7 mm Height: 109.3 mm Depth: 77.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div.
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage U_C: 180 VÃDC Rated current: 150 mA (25Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 1 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 1 ÃµA Nominal discharge current I_n (8/20) Ãµs (line-line): 10 kA Nominal discharge current I_n (8/20) Ãµs (line-ground): 10 kA Pulse discharge current I_imp (10/350)ÃÃµs (line-earth): 2.5 kA Total discharge current I_total (8/20)ÃÃµs: 20 kA Voltage protection level U_p (line-line): Ã¢Ã¢°¤ 290 V (B2 - 100 A) Ã¢Ã¢°¤ 290 V (C1 - 1 kV) Ã¢Ã¢°¤ 290 V (C2 - 10 kV) Ã¢Ã¢°¤ 300 V (C2 - 10ÃkA) Ã¢Ã¢°¤ 290 V (C3 - 50ÃA) Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 500 V (B2 - 100 A) Ã¢Ã¢°¤ 600 V (C1 - 1 kV) Ã¢Ã¢°¤ 600 V (C2 - 10 kV) Ã¢Ã¢°¤ 650 V (C2 - 10ÃkA) Ã¢Ã¢°¤ 700 V (C3 - 50ÃA) Response time t_A (line-line): Ã¢Ã¢°¤ 1 ns Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Input attenuation aE, sym.: typ. 0.3 dB (Ã¢Ã¢°¤ 5 MHz / 150 Ã©) Cut-off frequency fg (3ÃdB), sym. in 150ÃÃ© system: typ. 25 MHz Capacity (Core-Core): typ. 60 pF Resistance per path: 1.2 Ã© Ã±5Ã% Surge protection fault message: Optical, multi-stage Max. required back-up fuse: 150 mA (slow-blow) Impulse durability (line-line): C1 - 500ÃA C2 - 10ÃkA C3 - 50ÃA B2 - 100ÃA Impulse durability (line-earth): C1 - 500 A C2 - 10ÃkA C3 - 50ÃA B2 - 100ÃA D1 - 2.5ÃkA Pulse reset time (line-line): Ã¢Ã¢°¤Ã30Ãms
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl)
Standards and regulations	VDE requirement class: B2 C1 C2 C3 D1 Standards/specifications: IEC 61643-21 ENÃ61643-21 ENÃ61000-6-2 ENÃ61000-6-3 Note: 2000 + A1:2008 + A2:2012 2001 + A1:2009 + A2:2013 2005 2007 + A1:2011
Mounting	Mounting type: DIN rail: 35 mm
