| Product properties | IEC test classification: PV I / II PV T1 / T2 EN type: T1 / T2 IEC power supply system: DC Type: Male Product type: Replacement plug Product family: VALVETRAB MS Number of positions: 1 Installation location: Interior Installation location of the disconnect device: Internal Accessibility: Accessible SPD failure behavior: OCFM (Open-Circuit Failure Mode) Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Connection data | Connection method: pluggable |

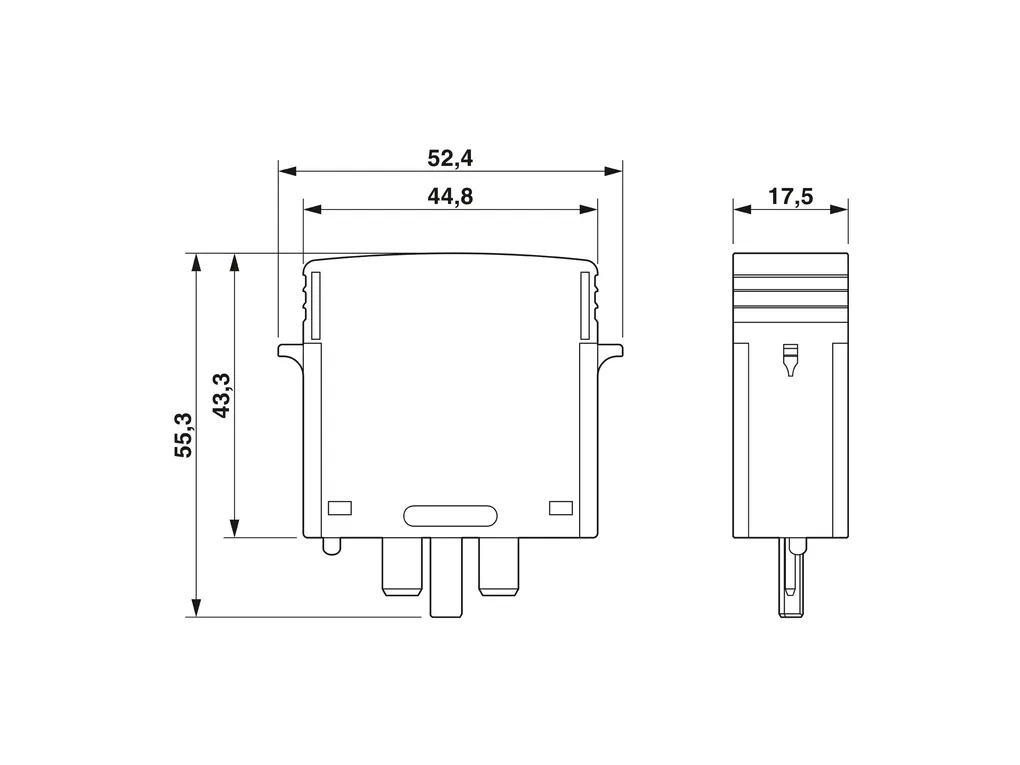

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3e02d9b64ee0a341a2e312513f1ad825/-S204x204-FJPG Width: 17.5 mm Height: 52.4 mm Depth: 55.3 mm Horizontal pitch: 1 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6-FR Material group: I Housing material: PA 6.6-FR |
| Protective circuit | Direction of action: (L+)-PE & (L-)-PE & (L+)-(L-) Standby power consumption PC: ââ°¤ 25 mVA Nominal discharge current In (8/20) õs: 15 kA Maximum discharge current Imax (8/20) õs: 40 kA Impulse discharge current (10/350)Ãõs, charge: 2.5 As Impulse discharge current (10/350)Ãõs, specific energy: 6.25 kJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 5 kA Voltage protection level Up: ââ°¤ 1.8 kV Residual voltage Ures: ââ°¤ 1.8 kV (at In) ââ°¤ 1.5 kV (at 5 kA) ââ°¤ 1.7 kV (at 10 kA) ââ°¤ 1.9 kV (at 20 kA) ââ°¤ 2.2 kV (at 30 kA) ââ°¤ 2.4 kV (at 40 kA) Response time tA: ââ°¤ 25 ns Protective circuit DC voltage side (DC) Open circuit voltage UOCSTC: ââ°¤ 487.5 VÃDC Maximum discharge current Imax (8/20) õs: 40 kA Response time tA: ââ°¤ 25 ns Impulse discharge current (10/350)Ãõs, charge: 2.5 As Impulse discharge current (10/350)Ãõs, specific energy: 6.25 kJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 5 kA Insulation resistance Riso: > 5 Gé (at 500 V DC) Nominal discharge current In (8/20) õs: 15 kA Continuous operating current ICPV: < 20 õA Maximum continuous operating voltage UCPV: 585 VÃDC Short-circuit current rating ISCPV: 2000 A Residual voltage Ures: ââ°¤ 1.8 kV (at In) ââ°¤ 1.5 kV (at 5 kA) ââ°¤ 1.7 kV (at 10 kA) ââ°¤ 1.9 kV (at 20 kA) ââ°¤ 2.2 kV (at 30 kA) ââ°¤ 2.4 kV (at 40 kA) Voltage protection level Up: ââ°¤ 1.8 kV Standby power consumption PC: ââ°¤ 25 mVA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 60g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 7.5g (5-500 Hz/2.5 h/XYZ) |
| Approvals | UL specifications Maximum continuous operating voltage MCOV: 1170 VÃDC Short-circuit current rating (SCCR): 50 kA Voltage protection rating VPR: 3 kV Nominal discharge current In: 10 kA Mode of protection: (L+) - (L-) (L+) - G (L-) - G Nominal voltage: 1170 VÃDC Power distribution system: DCÃPV SPD Type: 1CA |
| Standards and regulations | Standards/specifications: ENÃ61643-31 IEC 61643-31 Note: 2019 2018 |
| Mounting | Mounting type: on base element |
