| Notes | General: This product is a replacement plug. Generalââ¬Ã¢¹ Note: Remote signaling as well as the power supply are established by inserting the connector into the base element. |
| Product properties | Type: Male Product type: Replacement plug Product family: PLUGTRAB IQ Surge protection fault message: Optical, multi-stage |
| Electrical properties | Nominal voltage UN: 24 VÃDC |
| Connection data | Connection method: pluggable |

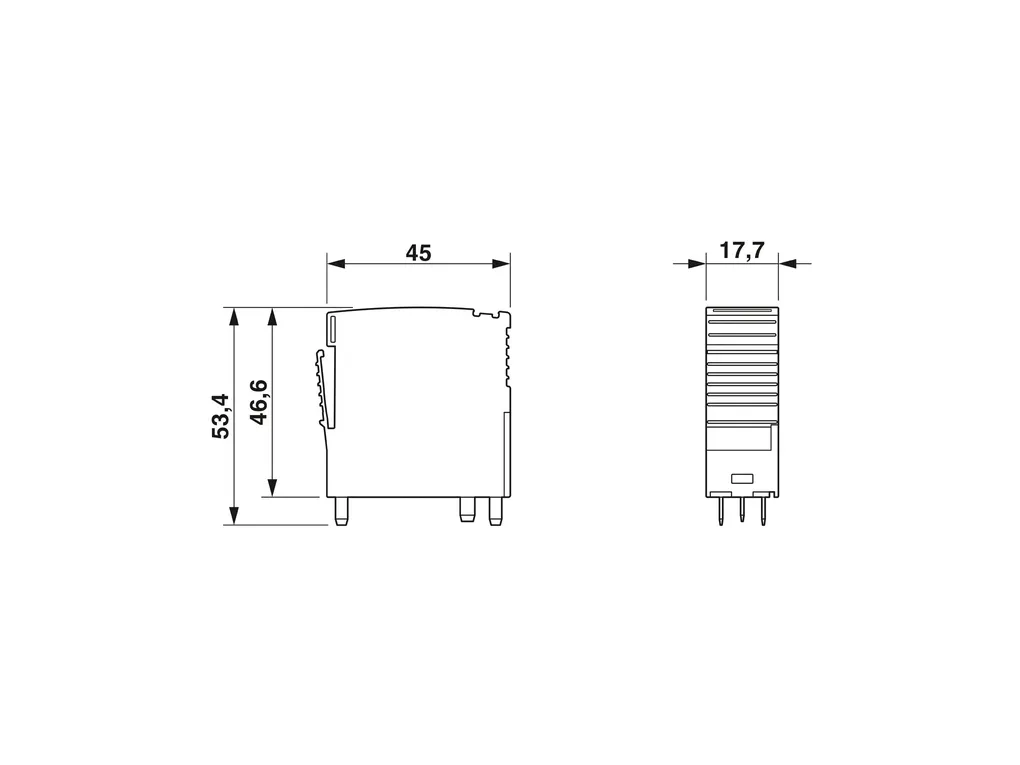

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b5446f667583404eaa1a059846ff2429/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 46.6 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 91.1 mm Complete module depth: 77.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 Housing material: PA 6.6 |
| Protective circuit | Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage UC: 30 VÃDC 21 VÃAC Rated current: 700 mA (45ðC) Total discharge current Itotal (8/20)Ãõs: 20 kA Surge protection fault message: Optical, multi-stage |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % |
| Standards and regulations | Standards/specifications: ENÃ61643-21/A1 Note: 2009 |
| Mounting | Mounting type: on base element |
