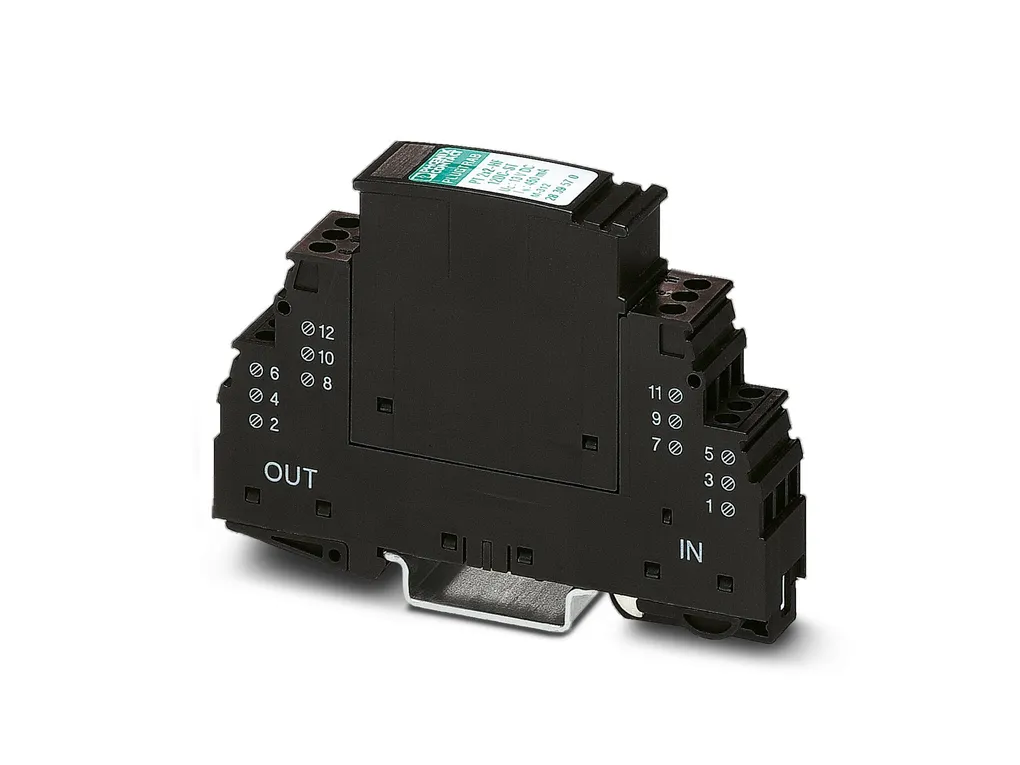

2800755 PHOENIX CONTACT - Technology Bsa

Product properties	IEC test classification: C1 C2 C3 D1 VDE requirement class: C1 C2 C3 D1 Type: Male Product type: Surge protection for information technology Product family: PLUGTRAB PT Number of positions: 5 Surge protection fault message: none Wire pairs per module: 2 Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 32 VÃDC
Connection data	Connection method: Screw connection (in connection with the base element)
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 52 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm
Material specifications	Flammability rating according to UL 94: V0 Housing material: PA
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage U_C: 36 VÃDC Rated current: 1.6 A Operating effective current I_C at U_C: Ã¢Ã¢°¤ 5 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 5 ÃµA (with PT 4-BE) Nominal discharge current I_n (8/20) Ãµs (line-line): 100 A Nominal discharge current I_n (8/20) Ãµs (line-ground): 10 kA Pulse discharge current I_imp (10/350)ÃÃµs: 1 kA Max. discharge current I_max (8/20) Ãµs maximum (line-line): 100 A Max. discharge current I_max (8/20) Ãµs maximum (line-earth): 10 kA Nominal pulse current Ian (10/1000) Ãµs (line-line): 23 A Output voltage limitation at 1 kV/Ãµs (line-line) spike: Ã¢Ã¢°¤ 75 V Output voltage limitation at 1 kV/Ãµs (line-earth) spike: Ã¢Ã¢°¤ 1.3 kV (with PT 4-BE) Output voltage limitation at 1 kV/Ãµs (line-line) static: Ã¢Ã¢°¤ 75 V Voltage protection level U_p (line-line): Ã¢Ã¢°¤ 75 V (C3 - 25ÃA) Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 1.3 kV (C1 - 1.5 kV) Ã¢Ã¢°¤ 1.3 kV (C2 - 9 kV) Ã¢Ã¢°¤ 1.3 kV (D1 - 500ÃA) Response time t_A (line-line): Ã¢Ã¢°¤ 1 ns Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Resistance per path: Ã¢Ã¢°¤ 1 Ã© Surge protection fault message: none Impulse durability (line-line): C3 - 25ÃA Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA D1 - 500ÃA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl)
Standards and regulations	VDE requirement class: C1 C2 C3 D1 Air clearances and creepage distances Standards/regulations: DINÃVDEÃ0110-1 / IEC 60664-1 Standards/specifications: ENÃ61643-21/A1 Note: 2009
Mounting	Mounting type: on base element
