2800055 PHOENIX CONTACT - Technology Bsa

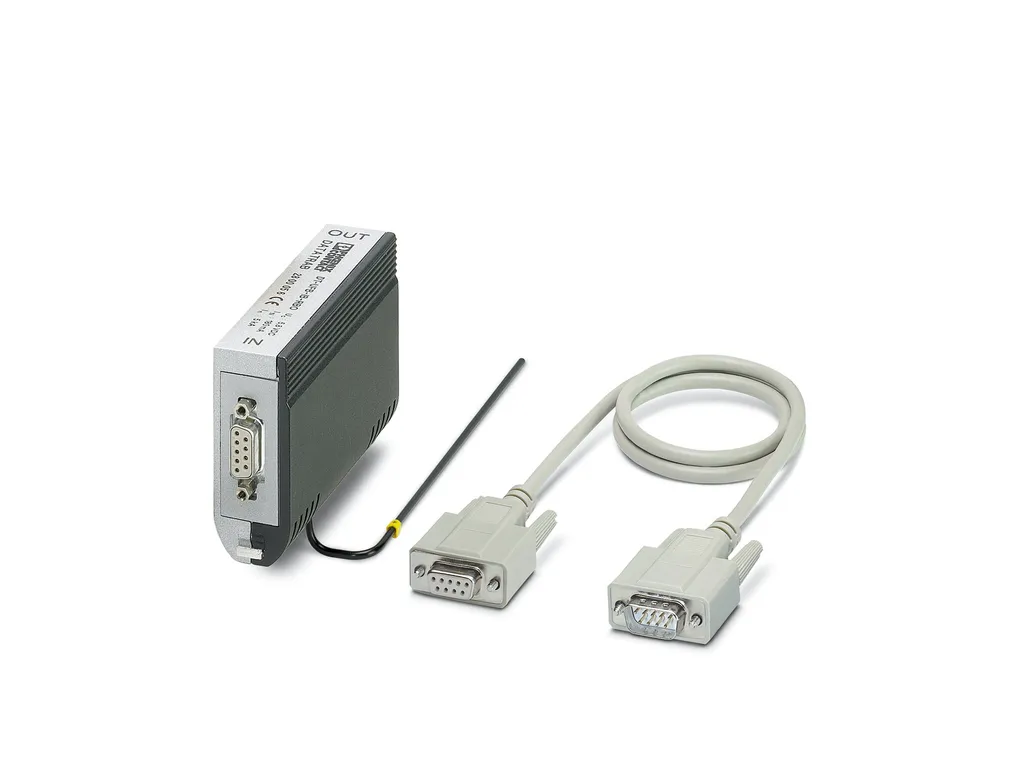

DT-UFB-IB-RBI - Surge protection device

Attachment plug with surge protection for 5-conductor remote bus input. Connection: 9-pos. D-SUB plug - socket. Can alternatively be snapped onto DIN rails. Incl. 1 m cable with 9-pos. D-SUB connection.

Cod. Articolo: 2800055 Copia - Copy

Cod. Fornitore: 2800055 Copia - Copy

PHOENIX CONTACT

Product properties	IEC test classification: B2 C1 C2 C3 D1 VDE requirement class: B2 C1 C2 C3 D1 Type: Attachment plug for DIN rail mounting Product type: Surge protection for information technology Product family: DATATRAB Number of positions: 5 Wire pairs per module: 2 Insulation characteristics Overvoltage category: II
Connection data	Connection method: D-SUB-9

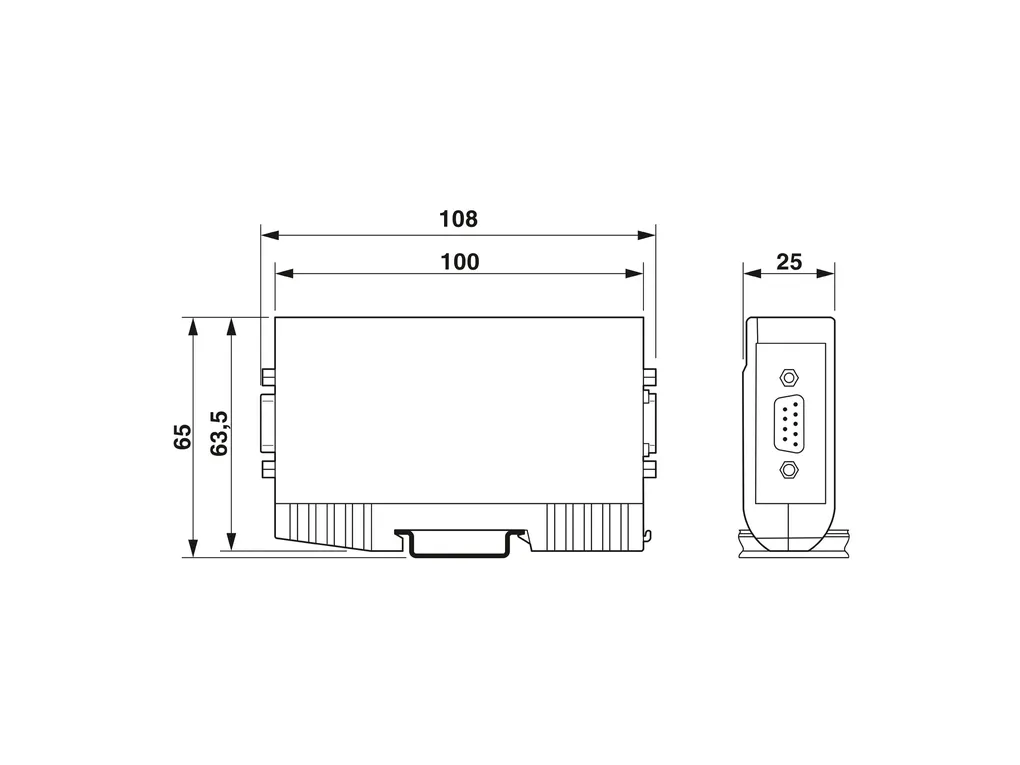

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c76deaab859f324aa9c239be226c30d4/-S204x204-FJPG Width: 25 mm Height: 110 mm Depth: 63 mm
Material specifications	Color: Silver Housing material: Zinc die-cast
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Ground/Shield Maximum continuous voltage U_C: 5.8 VÃDC Rated current: Ã¢Ã¢°¤ 180 mA (25Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 1 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 5 ÃµA Nominal discharge current I_n (8/20) Ãµs (line-line): Ã¢Ã¢°¤ 5 kA Nominal discharge current I_n (8/20) Ãµs (line-ground): Ã¢Ã¢°¤ 5 kA Total discharge current I_total (8/20)ÃÃµs: 10 kA Output voltage limitation at 1 kV/Ãµs (line-earth) spike: Ã¢Ã¢°¤ 700 V Output voltage limitation at 1 kV/Ãµs (line-line) static: Ã¢Ã¢°¤ 15 V Output voltage limitation at 1 kV/Ãµs (line-earth) static: Ã¢Ã¢°¤ 700 V Output voltage limitation at 1 kV/Ãµs (line-signalground) static: Ã¢Ã¢°¤ 15 V Residual voltage at I_n (conductor-conductor): Ã¢Ã¢°¤ 25 V Residual voltage at I_n (conductor-ground): Ã¢Ã¢°¤ 55 V Residual voltage at I_n (line-signalground): Ã¢Ã¢°¤ 25 V Voltage protection level U_p (line-line): Ã¢Ã¢°¤ 16 V (B2 - 100 A) Ã¢Ã¢°¤ 20 V (C1 - 500 A) Ã¢Ã¢°¤ 20 V (C2 - 1 kA) Ã¢Ã¢°¤ 60 V (C2 - 5 kA) Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 700 V (B2 - 100 A) Ã¢Ã¢°¤ 700 V (C1 - 500 A) Ã¢Ã¢°¤ 700 V (C2 - 5 kA) Response time t_A (line-line): Ã¢Ã¢°¤ 1 ns Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Input attenuation aE, sym.: typ. 0.5 dB (Ã¢Ã¢°¤ 5 MHz / 150 Ã©) typ. 0.6 dB (Ã¢Ã¢°¤ 10 MHz / 100/150 Ã©) Cut-off frequency fg (3ÃdB), sym. in 100ÃÃ© system: Ã¢Ã¢°¥ 100 MHz Cut-off frequency fg (3ÃdB), sym. in 150ÃÃ© system: Ã¢Ã¢°¥ 100 MHz Capacity (Core-Core): typ. 20 pF Resistance per path: typ. 7 Ã© Surge protection fault message: none Impulse durability (line-line): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA B2 - 4ÃkV / 100ÃA Impulse durability (line-earth): B2 - 4ÃkV / 100ÃA C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA D1 - 1ÃkA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C
Standards and regulations	VDE requirement class: B2 C1 C2 C3 D1 Air clearances and creepage distances Standards/regulations: IEC 60664-1 / VDEÃ0110-1 Standards Information technology specification Standards/regulations: IEC 61643-21 DINÃENÃ61643-21 IEC 61643-21 DINÃENÃ61643-21 Standards/specifications: DINÃENÃ61643-21 IEC 61643-21 Note: 2002 2000
Mounting	Mounting type: Connection-specific attachment plug and DIN rail, 35 mm
