| Notes | General Note: The nominal cross section for rated load current is 35 mm². |
| Product properties | Type: DIN rail module, one-piece Product type: Feed-through terminal block Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Rated voltage (III/3): 500 V AC/DC |
| Connection data | Screw thread: M5 Tightening torque: ... 4.5 Nm Stripping length: 14.5 mm Conductor cross section rigid: 0.5 mm² ... 35 mm² Cross section AWG: 20 ... 2 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 25 mm² Nominal current: 125 A (30ðC) Nominal voltage: 500 VÃAC 500 VÃDC Nominal cross section: 25 mm² |

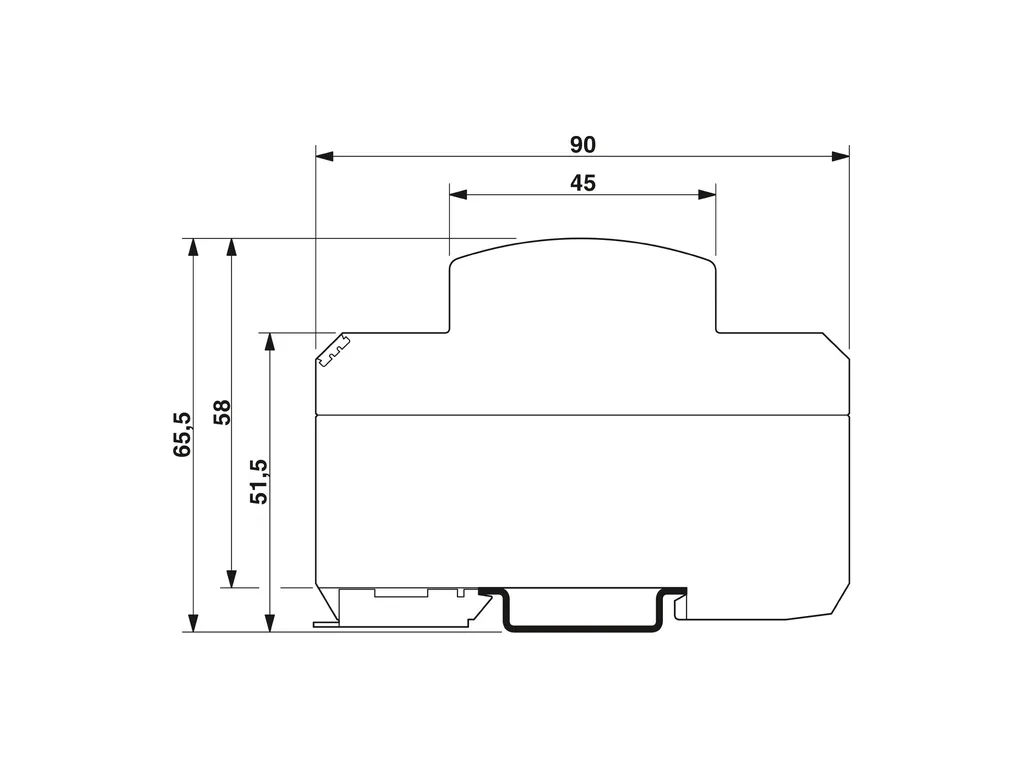

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/947d4bfaa209fc479cdc5ae37737a6d8/-S204x204-FJPG Width: 17.7 mm Height: 89.8 mm Depth: 65.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 Housing material: PA 6.6-FR |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Maximum continuous voltage UC: 500 VÃAC 500 VÃDC Impulse discharge current (10/350)Ãõs, charge: 50 As Impulse discharge current (10/350)Ãõs, specific energy: 2.5 MJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 100 kA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: DINÃVDEÃ0110-1 / IEC 60664-1 Standards/specifications: ENÃ60947-7-1 IEC 61643-11 ENÃ61643-11 Note: 2009 2011 2012 |
| Mounting | Mounting type: DIN rail: 35 mm |
