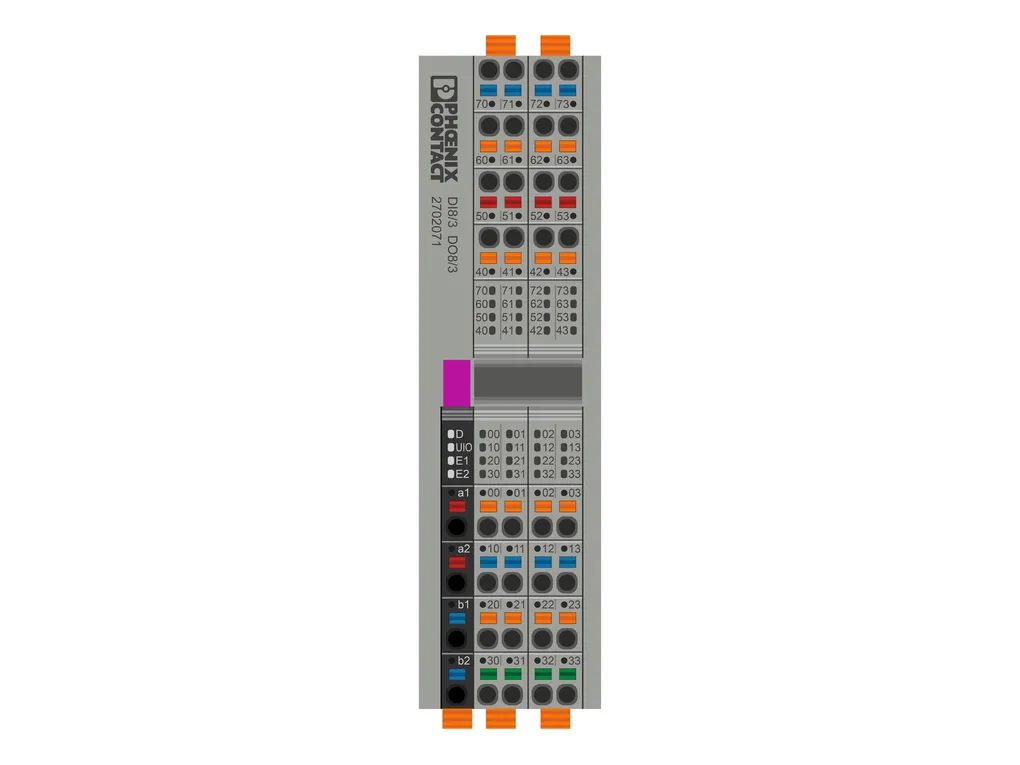

AXL F DI8/3 DO8/3 2H - Digital module

AxiolineF, Digital I/O module, Digital inputs: 8, 24 VDC, connection technology: 3-conductor, Digital outputs:8, 24 VDC, 500 mA, connection technology:3-conductor, transmission speed in the local bus:100 Mbps, degree of protection: IP20, including bus base module and AxiolineF connectors

Cod. Articolo: 2702071 Copia - Copy

Cod. Fornitore: 2702071 Copia - Copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/97375d412c926547bb2e1a41b7a47993/-S204x204-FJPG Width: 35 mm Height: 129.9 mm Depth: 54 mm Note on dimensions: The depth applies when a THÃ35-7.5 DIN rail is used (in accordance with ENÃ60715).
Interfaces	AxiolineÃFÃlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps
System properties	Module ID code (hex): none Input address area: 1 Byte Output address area: 1 Byte Required parameter data: 3 Byte Required configuration data: 7 Byte
Input data	Digital Input name: Digital inputs Description of the input: EN 61131-2 types 1 and 3 Number of inputs: 8 Connection method: Push-in connection Connection technology: 3-conductor Input voltage range "0" signal: -3 VÃDC ... 5 VÃDC Input voltage range "1" signal: 11 VÃDC ... 30 VÃDC Nominal input voltage U_IN: 24 VÃDC Nominal input current at U_IN: 2.4 mA Input filter time: 3000 Ãµs (Default) 1000 Ãµs < 100 Ãµs Protective circuit: Polarity reversal protection of the inputs; parallel diode (30ÃV, 5Ãs)
Output data	Digital Output name: Digital outputs Connection method: Push-in connection Connection technology: 3-conductor Number of outputs: 8 Protective circuit: Short-circuit protection, overload protection of the outputs; electronic Output voltage: 24 VÃDC Limitation of the voltage induced on circuit interruption: -25.8 V ... -15 V Maximum output current per module: max. 8 A (provide external protection) Nominal output voltage: 24 VÃDC Load min.: 10 kÃ© Output voltage when switched off: max. 1 V Output current when switched off: max. 300 ÃµA Nominal load, inductive: max. 12 VA (1.2 H, 48 Ã©, with nominal voltage) Nominal load, lamp: max. 12 W (at nominal voltage) Nominal load, ohmic: max. 12 W (48 Ã©, with nominal voltage) Switching frequency: max. 10000 per second (with at least 50ÃmA load current) max. 1 per second (with inductive load) max. 16 per second (with nominal lamp load) Reverse voltage resistance to short pulses: limited protection up to 0.5 A for 1 s Behavior with overload: Shutdown with automatic restart Behavior with inductive overload: Output can be destroyed Signal delay: max. 100 Ãµs (when switched on) max. 100 Ãµs (when switched off, with at least 50 mA load current) Overcurrent shut-down: as of 0.7 A Output current with ground connection interrupt when switched off: < 1 mA
Product properties	Type: block modular Product type: I/O component Product family: AxiolineÃF Mounting position: any (no temperature derating) Scope of delivery: including bus base module and AxiolineÃF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, ENÃ60664-1) Pollution degree: 2 (IEC 60664-1, ENÃ60664-1)
Electrical properties	Potentials: AxiolineÃF local bus supply (U Supply voltage: 5 VÃDC (via bus base module) Current draw: max. 120 mA (up to HWÃ01) max. 60 mA (from HWÃ02) Power consumption: max. 600 mW (up to HWÃ01) max. 300 mW (from HWÃ02) Potentials: Supply for digital input and output modules (U Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 6 A (provide external protection) Power consumption: max. 180 W (of which 1.24ÃW internal losses) Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; parallel diode; with external 5ÃA fuse (only for commissioning) Supply: Sensor supply (US) Designation: Sensor supply (U_S) Supply voltage: 24 VÃDC (from U_IO) Electrical isolation/isolation of the voltage ranges Test voltage: 5ÃV supply of the local bus (U_Bus) / 24ÃV supply (I/Os): 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (U_Bus) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24ÃV supply (I/O) / functional ground: 500 VÃAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: AxiolineÃF connector Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineÃF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Mounting	Mounting type: DIN rail mounting Mounting position: any (no temperature derating)
