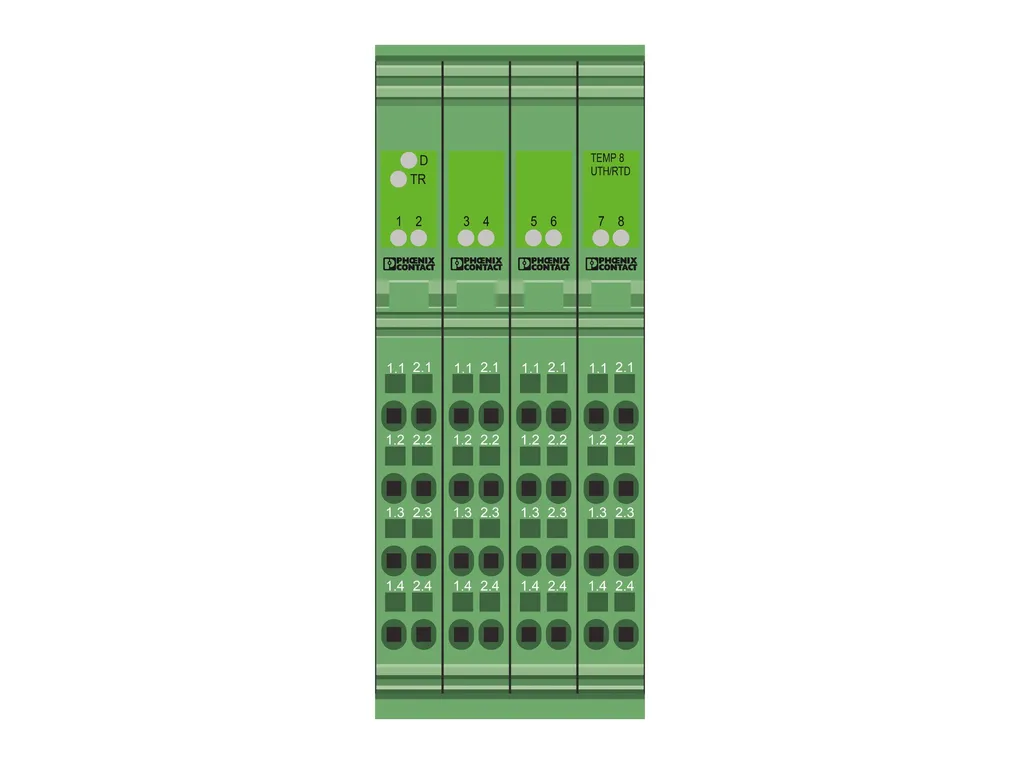

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 48.8 mm Height: 119.8 mm Depth: 71.5 mm |
| Interfaces | Inline local bus Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper |
| System properties | Module ID code (dec.): 220 ID code (hex): DC Length code (hex): 0A Length code (dec): 10 Process data channel: 160 bit Input address area: 20 Byte Output address area: 20 Byte Register length: 192 bit Required parameter data: 25 Byte Required configuration data: 5 Byte |
| Input data | Analog Input name: Analog RTD inputs Description of the input: Temperature sensor inputs Number of inputs: 8 Connection method: Spring-cage connection Connection technology: 2-, 3-conductor A/D converter resolution: 16 bit Sensor types (RTD) that can be used: Pt, Ni sensors, linear resistors Sensor types that can be used (TC): B, C, E, J, K, L, N, R, S, T, U, mV input Data formats: IB IL, S7-compatible Measuring principle: Successive approximation Measured value representation: 16 bits (15 bits + sign bit) Process data update: 20 ms (with filter time of 20Ãms or 100Ãms) 100 ms (with filter time of 400Ãms or 1600Ãms) |
| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields Operating mode: Process data mode with 10 words, PCP with 2 words |
| Electrical properties | Potentials Power consumption: typ. 1.15 W Potentials: Communications power (U Supply voltage: 7.5 VÃDC (via voltage jumper) Current draw: max. 100 mA typ. 90 mA Potentials: Supply of analog modules (U Supply voltage: 24 VÃDC (via voltage jumper) Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: typ. 24 mA Electrical isolation/isolation of the voltage ranges Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics): 500 VÃAC, 50 Hz, 1 min. Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics): 500 VÃAC, 50 Hz, 1 min. Test voltage: 7.5 V supply (bus logic), 24 V supply UANA / I/O: 500 VÃAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1) |
| Mounting | Mounting type: DIN rail mounting |
