PHOENIX CONTACT 2201797
PHOENIX CONTACT 2201797
PHOENIX CONTACTNon disponibile

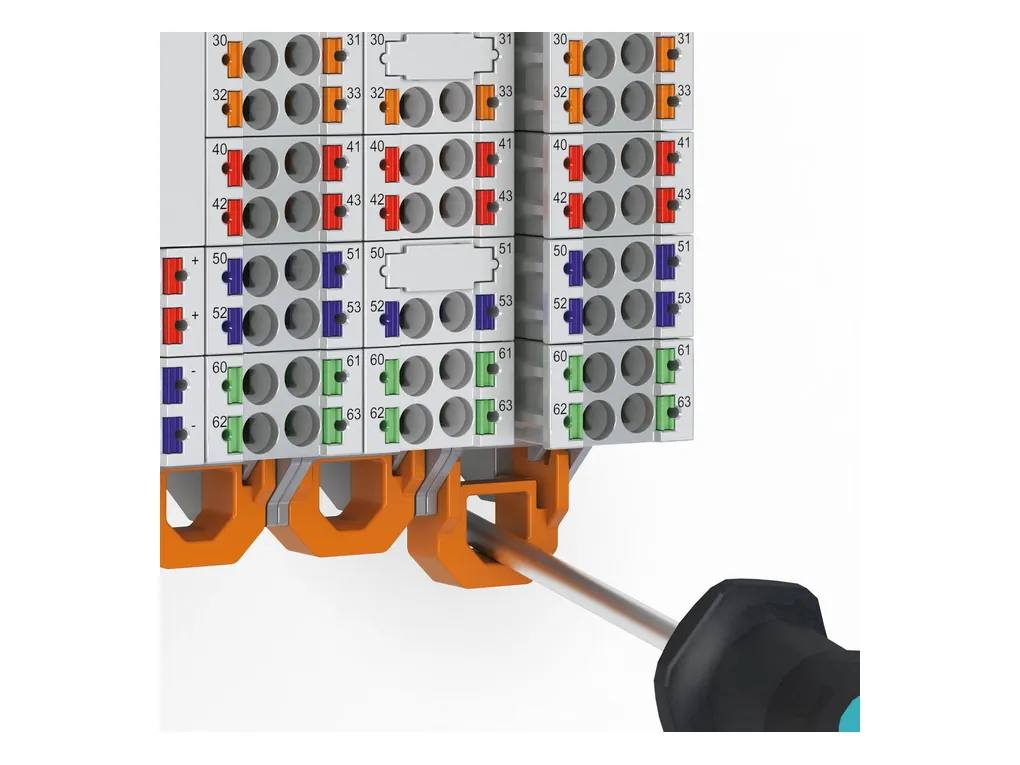

HSC-LR 3U KIT 2003 - Locking

DIN rail housing, 3U, Lock and Release system, width: 16.1 mm, height: 45.95 mm, depth: 8.8 mm, color: orange (2003)
Cod. Articolo: 2201797
Cod. Fornitore: 2201797
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Refer to the data sheet for the range in the download area.
Product propertiesProduct type: Mounting material
Type: 3U
Housing type: DIN rail housing
Housing series: ME-IO
DimensionsWidth: 16.1 mm
Height: 45.95 mm
Depth: 8.8 mm
Material specificationsColor: orange (2003)
Flammability rating according to UL 94: V0
Surface characteristics: untreated
Housing material: Polyamide
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 55°C
Ambient temperature (assembly): -5°C ... 100°C
Relative humidity (storage/transport): 80 %
MountingMounting type: Snap in
Packaging specificationsType of packaging: packed in cardboard
Outer packaging type: Carton
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Data_sheet_00251.pdf

Material_description_00001.pdf

Technical_drawing_36033.pdf
