| Product properties | Product line: COMBICON Connectors M Product type: PCB headers Product family: ST 2,5-PCBV/..-G Number of positions: 12 Pitch: 5.2 mm Number of rows: 1 Mounting flange: without Pin layout: Zigzag pinning W Solder pins per potential: 1 |
| Electrical properties | Nominal current IN: 20 A Nominal voltage UN: 630 V Degree of pollution: 3 Contact resistance: 1 mé Rated voltage (III/3): 500 V Rated surge voltage (III/3): 6 kV Rated voltage (III/2): 630 V Rated surge voltage (III/2): 6 kV Rated voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV |
| Mounting | Mounting type: Wave soldering Pin layout: Zigzag pinning W |
| Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface contact area (top layer): Tin (4 - 8 µm Sn) Metal surface soldering area (top layer): Tin (4 - 8 µm Sn) Material data - housing Color (Housing): gray (7042) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C |
| Notes | Note on application: In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70e0f23c282363459709fcfe7d5e7131/-S204x204-FJPG Pitch: 5.2 mm Width [w]: 64.5 mm Height [h]: 25.3 mm Length [l]: 18.05 mm Installed height: 21.7 mm Solder pin length [P]: 3.6 mm PCB design Hole diameter: 1.6 mm |
| Mechanical tests | Visual inspection Specification: IEC 60512-2:1985-00 Result: Test passed Dimension check Specification: IEC 60512-2:1985-00 Result: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-7:1993-08 (Polarization) Result: Test passed Contact holder in insert Specification: IEC 60512-8:1993-01 Contact holder in insert Requirements >20 N: Test passed Insertion and withdrawal forces Result: Test passed No. of cycles: 50 Insertion strength per pos. approx.: 6 N Withdraw strength per pos. approx.: 4 N |
| Electrical tests | Thermal test | Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 12 Insulation resistance Specification: IEC 60512-2:1985-00 Insulation resistance, neighboring positions: 1012é Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 500 V Rated surge voltage (III/3): 6 kV minimum clearance value - non-homogenous field (III/3): 5.5 mm minimum creepage distance (III/3): 6.3 mm Rated insulation voltage (III/2): 630 V Rated surge voltage (III/2): 6 kV minimum clearance value - non-homogenous field (III/2): 5.5 mm minimum creepage distance (III/2): 5.5 mm Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV minimum clearance value - non-homogenous field (II/2): 5.5 mm minimum creepage distance (II/2): 5.5 mm |

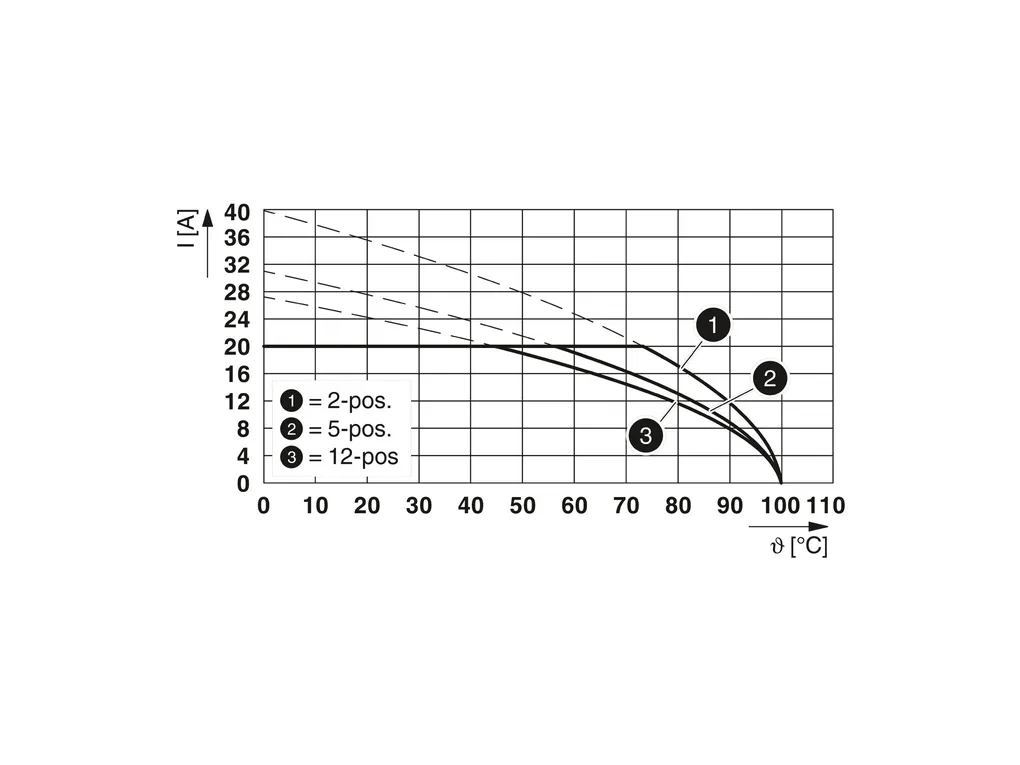

| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:1995-03 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-5:1992-08 Impulse withstand voltage at sea level: 7.3 kV Contact resistance R1: 1 mé Contact resistance R2: 1.5 mé Insertion/withdrawal cycles: 50 Climatic test Specification: ISO6988:1985-02 Corrosive stress: KFW 0.2 S/1 cycle Thermal stress: 100°C/168h Power-frequency withstand voltage: 3.31 kV Ambient conditions Ambient temperature (operation): -40°C ... 100°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
| Packaging specifications | Type of packaging: packed in cardboard |
