FFKDSA1/V-2,54-24 - PCB terminal block

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm2, number of potentials: 24, number of rows: 1, number of positions per row: 24, product range: FFKDS(A) 0,5/..-V, pitch: 2.54 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90°, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Cod. Articolo: 1789524
Cod. Fornitore: 1789524
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesType: PC terminal block can be aligned
Product line: COMBICON Terminals XS
Product type: Printed circuit board terminal
Product family: FFKDS(A) 0,5/..-V
Number of positions: 24
Pitch: 2.54 mm
Number of connections: 24
Number of rows: 1
Number of potentials: 24
Pin layout: Linear pinning
Solder pins per potential: 2
Electrical propertiesNominal current IN: 6 A
Nominal voltage UN: 160 V
Degree of pollution: 3
Rated voltage (III/3): 63 V
Rated surge voltage (III/3): 2.5 kV
Rated voltage (III/2): 160 V
Rated surge voltage (III/2): 2.5 kV
Rated voltage (II/2): 320 V
Rated surge voltage (II/2): 2.5 kV
Connection dataConnection technology
Type: PC terminal block can be aligned
Nominal cross section: 0.5 mm²
Conductor connection
Connection method: Push-in spring connection
Conductor cross section rigid: 0.14 mm² ... 0.5 mm²
Conductor cross section flexible: 0.14 mm² ... 0.5 mm²
Conductor cross section AWG: 26 ... 20
Stripping length: 11 mm
MountingMounting type: Wave soldering
Pin layout: Linear pinning
Connection method: Push-in spring connection
Material specificationsMaterial data - contact
Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material: Cu alloy
Surface characteristics: Tin-plated
Metal surface terminal point (top layer): Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer): Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer): Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer): Nickel (2 - 3 µm Ni)
Material data - housing
Color (Housing): green (6021)
Insulating material: PA
Insulating material group: I
CTI according to IEC 60112: 600
Flammability rating according to UL 94: V0
Glow wire flammability index GWFI according to EN60695-2-12: 850
Glow wire ignition temperature GWIT according to EN60695-2-13: 775
Temperature for the ball pressure test according to EN60695-10-2: 125°C
Material data – actuating element
Color (Actuating element): orange (2003)
Insulating material: PA
Insulating material group: I
CTI according to IEC 60112: 600
Flammability rating according to UL 94: V0
Glow wire flammability index GWFI according to EN60695-2-12: 850
Glow wire ignition temperature GWIT according to EN60695-2-13: 775
Temperature for the ball pressure test according to EN60695-10-2: 125°C

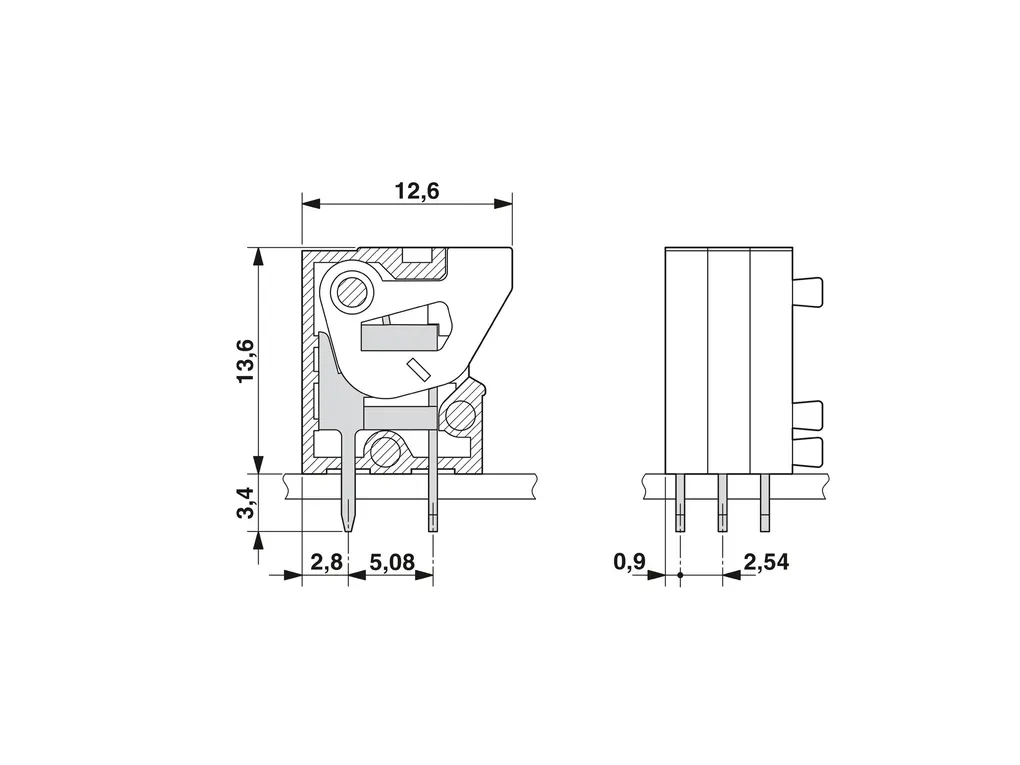

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG
Pitch: 2.54 mm
Width [w]: 63.46 mm
Height [h]: 17 mm
Length [l]: 12.6 mm
Installed height: 13.6 mm
Solder pin length [P]: 3.4 mm
Pin dimensions: 0.5 x 0.8 mm
PCB design
Pin spacing: 5.08 mm
Hole diameter: 1.1 mm
Mechanical testsTest for conductor damage and slackening
Specification: IEC 60999-1:1990-05
Result: Test passed
Pull-out test
Specification: IEC 60999-1:1990-05
Conductor cross section/conductor type/tractive force setpoint/actual value: 0.14 mm² / solid / > 7 N
0.14 mm² / flexible / > 7 N
0.5 mm² / solid / > 30 N
0.5 mm² / flexible / > 30 N
Electrical testsTemperature-rise test
Specification: IEC 60998-1:1990-04
Requirement temperature-rise test: Increase in temperature ≤45K
Insulation resistance
Specification: IEC 60512-2:1985-00
Insulation resistance, neighboring positions: 1012Ω
Air clearances and creepage distances |
Specification: IEC 60664-1:2007-04
Insulating material group: I
Comparative tracking index (IEC 60112): CTI 600
Rated insulation voltage (III/3): 63 V
Rated surge voltage (III/3): 2.5 kV
minimum clearance value - non-homogenous field (III/3): 1.5 mm
minimum creepage distance (III/3): 1.6 mm
Rated insulation voltage (III/2): 160 V
Rated surge voltage (III/2): 2.5 kV
minimum clearance value - non-homogenous field (III/2): 1.5 mm
minimum creepage distance (III/2): 1.5 mm
Rated insulation voltage (II/2): 320 V
Rated surge voltage (II/2): 2.5 kV
minimum clearance value - non-homogenous field (II/2): 1.5 mm
minimum creepage distance (II/2): 1.6 mm
Environmental and real-life conditionsVibration test
Specification: IEC 60068-2-6:1982 + AMD2:1985
Frequency: 10 - 150 - 10 Hz
Sweep speed: 1octave/min
5g (60.1Hz...150Hz)
Amplitude: 0.35mm (10Hz...60.1Hz)
Test duration per axis: 2.5 h
Ambient conditions
Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport): -40°C ... 70°C
Relative humidity (storage/transport): 30 % ... 70 %
Ambient temperature (assembly): -5°C ... 100°C
Packaging specificationsType of packaging: packed in cardboard
