ZFKDSA 4- 7,5- 7 - PCB terminal block

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: ZFKDS(A) 4, pitch: 7.5 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45°, color: gray, Pin layout: Linear pinning, Solder pin [P]: 4.6 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Cod. Articolo: 1701438 Copia - Copy

Cod. Fornitore: 1701438 Copia - Copy

PHOENIX CONTACT

Product properties	Type: PC terminal block can be aligned Product line: COMBICON Terminals L Product type: Printed circuit board terminal Product family: ZFKDS(A) 4 Number of positions: 7 Pitch: 7.5 mm Number of connections: 7 Number of rows: 1 Number of potentials: 7 Pin layout: Linear pinning Solder pins per potential: 2
Electrical properties	Nominal current I_N: 32 A Nominal voltage U_N: 630 V Degree of pollution: 3 Rated voltage (III/3): 500 V Rated surge voltage (III/3): 6 kV Rated voltage (III/2): 630 V Rated surge voltage (III/2): 6 kV Rated voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV
Connection data	Connection technology Type: PC terminal block can be aligned Nominal cross section: 4 mm² Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.2 mm² ... 6 mm² Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 10 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 4 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 4 mm² Stripping length: 10 mm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Spring-cage connection
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (10 - 16 µm Sn) Metal surface soldering area (top layer): Tin (10 - 16 µm Sn) Material data - housing Color (Housing): gray (7042) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C Material data Ã¢ actuating element Color (Actuating element): gray (7042)
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 7.5 mm Width [w]: 54 mm Height [h]: 27.6 mm Length [l]: 29 mm Installed height: 23 mm Solder pin length [P]: 4.6 mm Pin dimensions: 1 x 1.4 mm PCB design Hole diameter: 1.8 mm
Mechanical tests	Connection test Specification: IEC 60998-2-2:1991-10 Result: Test passed Test for conductor damage and slackening Specification: IEC 60998-2-2:1991-10 Result: Test passed Pull-out test Specification: IEC 60998-2-2:1991-10 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 6 mm² / solid / > 80 N 4 mm² / flexible / > 60 N
Electrical tests	Temperature-rise test Specification: IEC 60998-2-1:1990-04 Requirement temperature-rise test: Increase in temperature Ã¢¤45K Insulation resistance Specification: IEC 60998-2-2:1991-10 Insulation resistance, neighboring positions: 10⁹Ã© Air clearances and creepage distances \| Insulating material group: I Rated insulation voltage (III/3): 500 V Rated surge voltage (III/3): 6 kV Rated insulation voltage (III/2): 630 V Rated surge voltage (III/2): 6 kV Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV

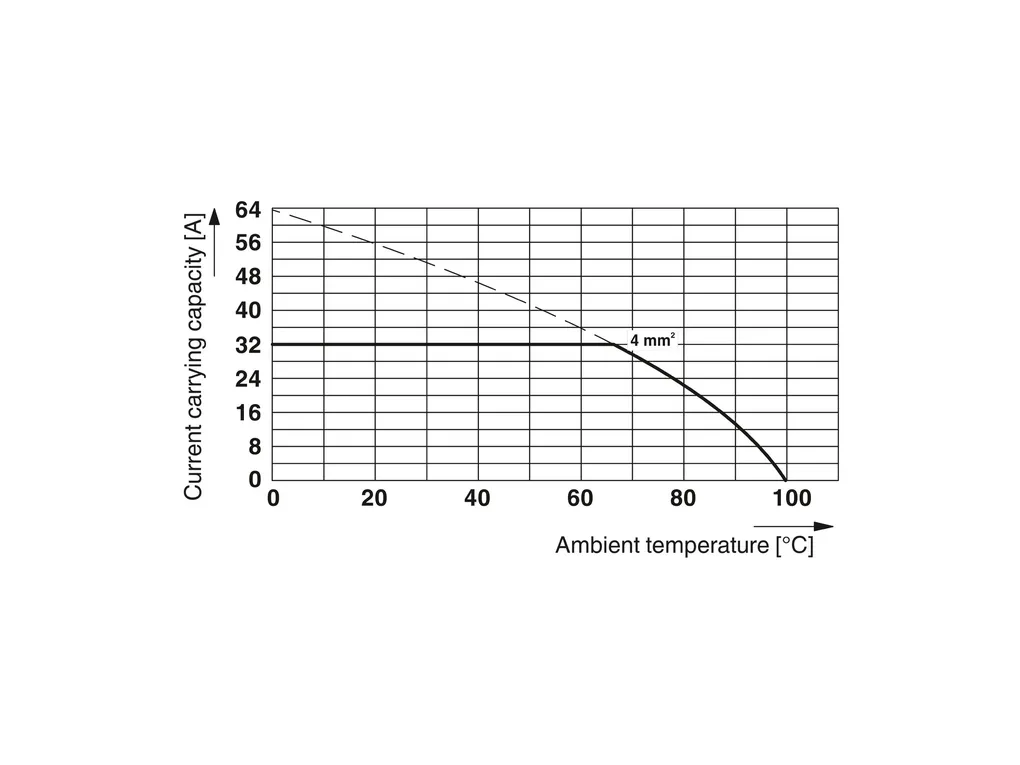

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:1995-03 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60998-2-2:1991-10 Temperature: 850°C Time of exposure: 5 s Ambient conditions Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard
