PHOENIX CONTACT 1693704
PHOENIX CONTACT 1693704
PHOENIX CONTACTNon disponibile

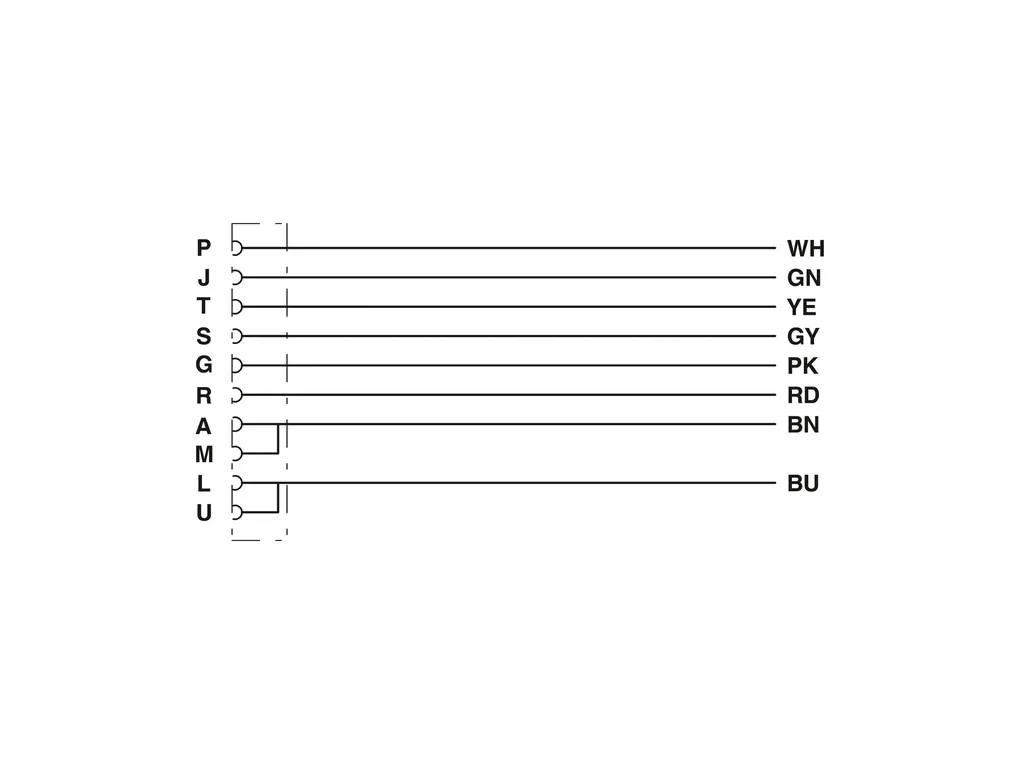

SAC-10P- 5,0-PUR/M16FR - Master cable

Master cable, application: Sensor/actuator box, connection method: M8 socket Metal, number of slots: 6, number of positions: 10, slot assignment: single, status display: No; master cable connection: M16 plug connection, PUR/PVC, cable length: 5 m, shielding: no, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1260750
Cod. Articolo: 1693704
Cod. Fornitore: 1693704
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Master cable, assembled
Number of positions: 10
Application: Sensor/actuator box
Number of slots: 6
Electrical propertiesNominal voltage UN: 48 VAC
60 VDC
SignalingStatus display present: No
Material specificationsMaterial: PUR
Cu alloy
Seal material: NBR
Material of contact, master cable side: CU alloy
Material of the contact carrier on the master cable side: TPU
Material of contact surface, master cable side: gold-plated
ConnectorConnection 1
Head design: Socket
Head cable outlet: angled
Head thread type: M16
Connection 2
Head design: free cable end
Cable/lineCable length: 5 m
PUR/PVC black[PUR]
Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fa0074163a15074a860c1337ad0b5594/-S204x204-FJPG
Cable weight: 81.2 kg/km
UL AWM Style: 20549
Number of positions: 8
Shielded: no
Cable type: PUR/PVC black[PUR]
Conductor structure signal line: 19x 0.15 mm
AWG signal line: 22
Conductor cross section: 6x 0.34 mm² (Signal line)
2x 0.75 mm² (power line)
Wire diameter incl. insulation: 1.3 mm ±0.1mm (Signal line)
1.8 mm ±0.1mm (power line)
External cable diameter: 7.6 mm ±0.2mm
Outer sheath, material: PUR
External sheath, color: black RAL9005
Conductor material: Bare Cu litz wires
Material wire insulation: PVC
Single wire, color: brown, blue, white, green, yellow, gray, pink, red
Inner sheath thickness: ≥ 0.15 mm
Thickness, outer sheath: ≥ 0.38 mm
Overall twist: Wires twisted in layers
Nominal voltage, cable: 300 V
Test voltage: 2000 V
Minimum bending radius, fixed installation: 7.5 x D
Minimum bending radius, flexible installation: 10 x D
Max. bending cycles: 1500000
Flame resistance: DINEN50265
Resistance to oil: according to VDE 0472 Part 803
Other resistance: Highly resistant to acids, alkaline solutions and solvents
Special properties: Silicone-free
Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation)
-5°C ... 80°C (Cable, flexible installation)
80°C (in acc. with UL)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 90°C (Plug / socket)
-40°C ... 90°C (cable, fixed installation)
MountingConnection method: Fixed connection
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_00252.pdf

Manufacturer_declaration_01547.pdf

Manufacturer_declaration_13144.pdf

Technical_drawing_18480.pdf
