PHOENIX CONTACT 1667963
PHOENIX CONTACT 1667963
PHOENIX CONTACTNon disponibile

TWGM/CDIO/17-BU - Cable connector

M23, Cable connector, series: UC, angled, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1245645
Cod. Articolo: 1667963
Cod. Fornitore: 1667963
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
MountingConnection method: Crimp contacts, turned
Product propertiesProduct type: Circular connector (cable-side)
Number of positions: 17
Material specificationsSeal material: NBR
Housing material: CuZn, zinc die-cast
Connection dataConductor connection
Connection method: Crimp contacts, turned
Electrical propertiesContact
Contact diameter: 1 mm
Min. cross section: 0.14 mm²
Max. cross section: 0.56 mm²
Contact​
Contact diameter: 1 mm
Min. cross section: 0.5 mm²
Max. cross section: 0.75 mm²
ConnectorInsulating body
Note: Order information: Order crimp contacts Ø 1 mm separately

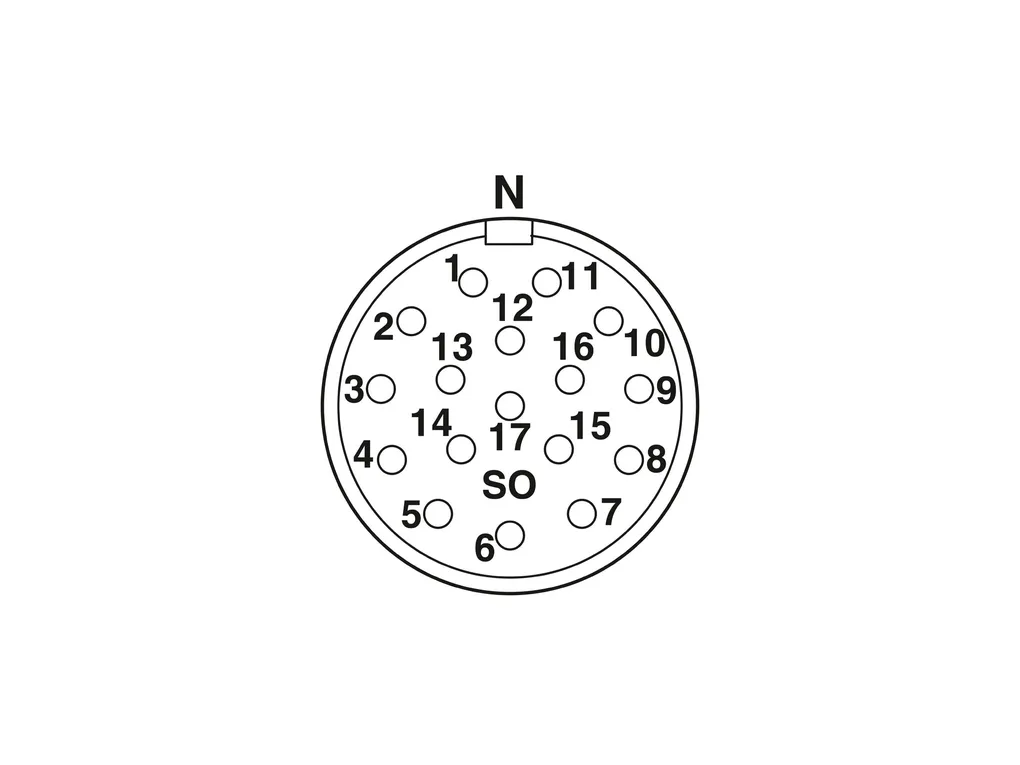

Coding: N
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 17
Direction of rotation: Standard
Connection profile: 17
Contact diameter Power contacts: 1 mm
Rated current Power contacts: 8 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Order information:: Order contact inserts separately
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: Pg16
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -40°C ... 125°C (short-term up to 145°C)
