| Product properties | Type: D-SUB Male Product type: Male insert Number of positions: 15 Connection profile: D-SUB 9 Application: high-position Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 60 V Rated surge voltage: 1 kV Rated current: 3 A (at 20°C) Test voltage: 1000 V Transmission medium: Copper |

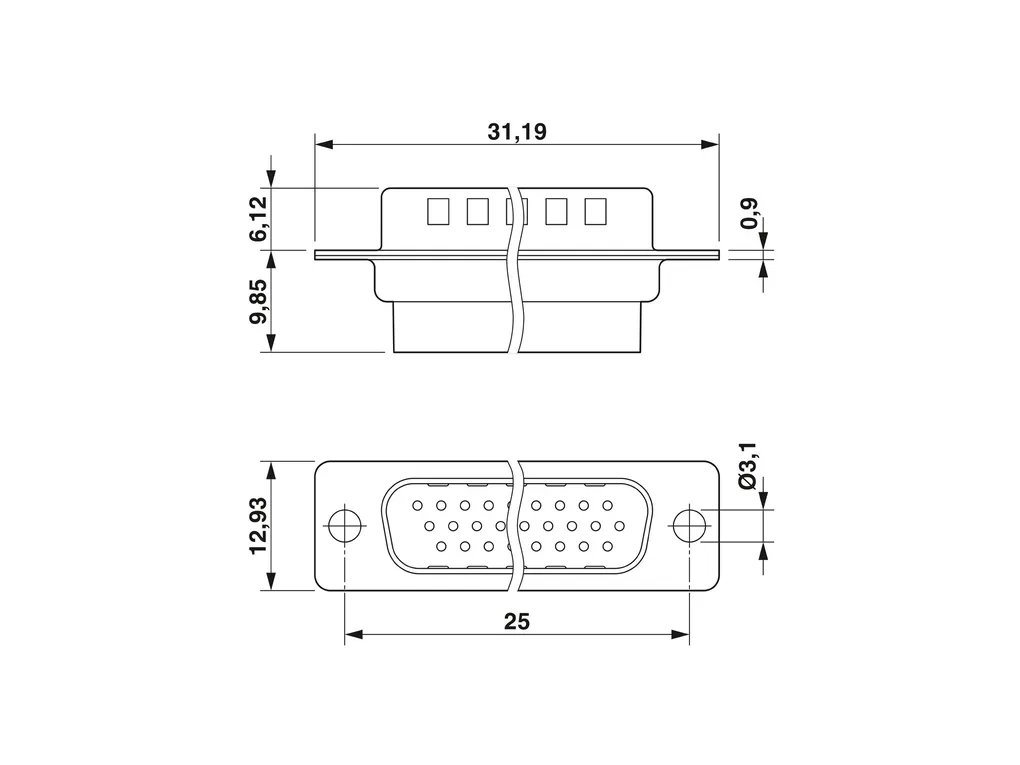

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8613826db36a014090a9bc5e4d2c79a3/-S204x204-FJPG Width: 16 mm Height: 12.93 mm Length: 31.19 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact carrier material: Glass-fiber reinforced thermoplastics, UL 94 V0 Housing material: Steel, tin-plated |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -55°C ... 115°C |
| Mounting | Mounting type: Hole Connection method: Crimp connection |
