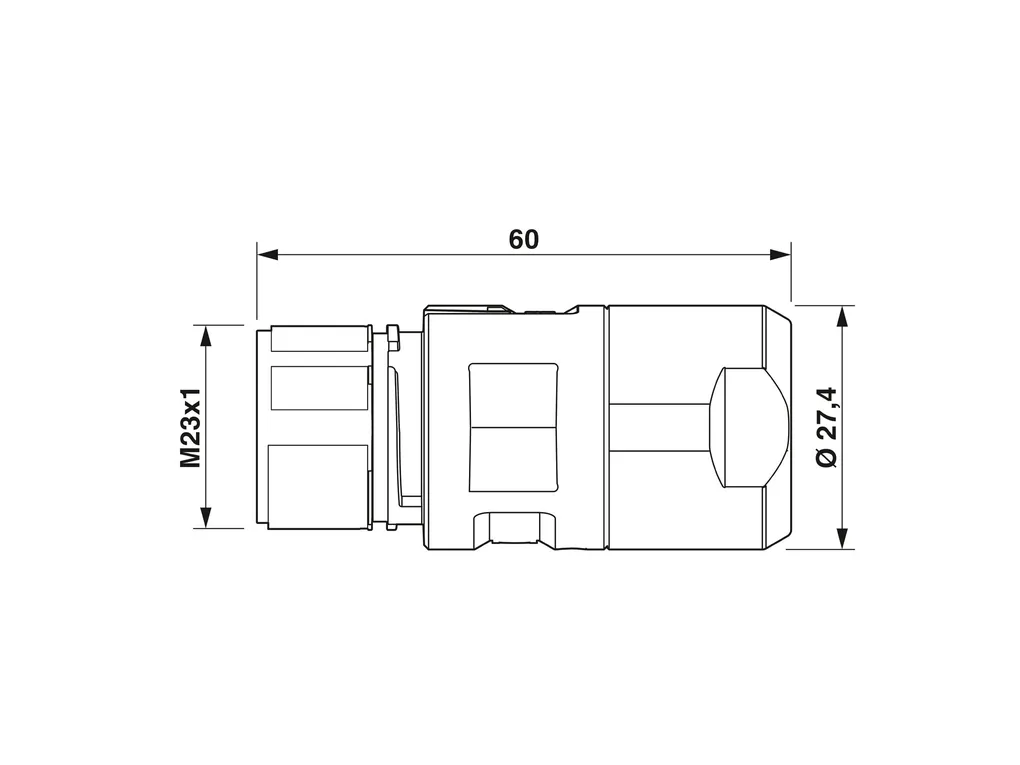

PHOENIX CONTACT 1629098
PHOENIX CONTACT 1629098
PHOENIX CONTACTNon disponibile

M23-1RP1N8A9003S - Coupler connector

M23, Coupler connector, series: M23 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 16+2+PE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 6 mm ... 10 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption6c (Pb<0.1%)
Cod. Articolo: 1629098
Cod. Fornitore: 1629098
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts 16 x Ø 1 mm, 2 x Ø 1.5 mm, 1 x Ø 1.5 (PE) separately
Please observe the derating curve.
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Only use tools recommended by PhoenixContact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Note: Order information: Order crimp contacts 16 x Ø 1 mm, 2 x Ø 1.5 mm, 1 x Ø 1.5 (PE) separately
for max. connection cross section
for max. connection cross section
Coding: N
Insulation body material: PA 6.6
Insertion/withdrawal cycles: 100
Connection method: Crimp connection
Contact switching type: Pin
Application: Signal
Number of positions: 19
Direction of rotation: Standard
Connection profile: 16+2+PE
Contact diameter Power contacts: 1.5 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 10 A
Rated voltage: 150 V
Rated surge voltage: 1.5 kV
Overvoltage category: II
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage Signal contact: 150 V
Installation height: 2000 m
Housing
Housing material: GD-Zn
Type of locking: for standard and ONECLICK fast locking system
Pg screw connection: none
Degree of protection (plugged in): IP66 / IP68 (2 m / 24 h)
Thread type: M23
Seal
External cable diameter: 6 mm ... 10 mm
Seal material: FKM
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 105°C (see to derating)
Altitude: 2000 m
Permanent temperature: 125°C (DINEN60512-9-2 / 1000h)
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_01482.pdf

Manufacturer_declaration_02725.pdf

Package_slip_01501.pdf

Technical_drawing_17947.pdf
