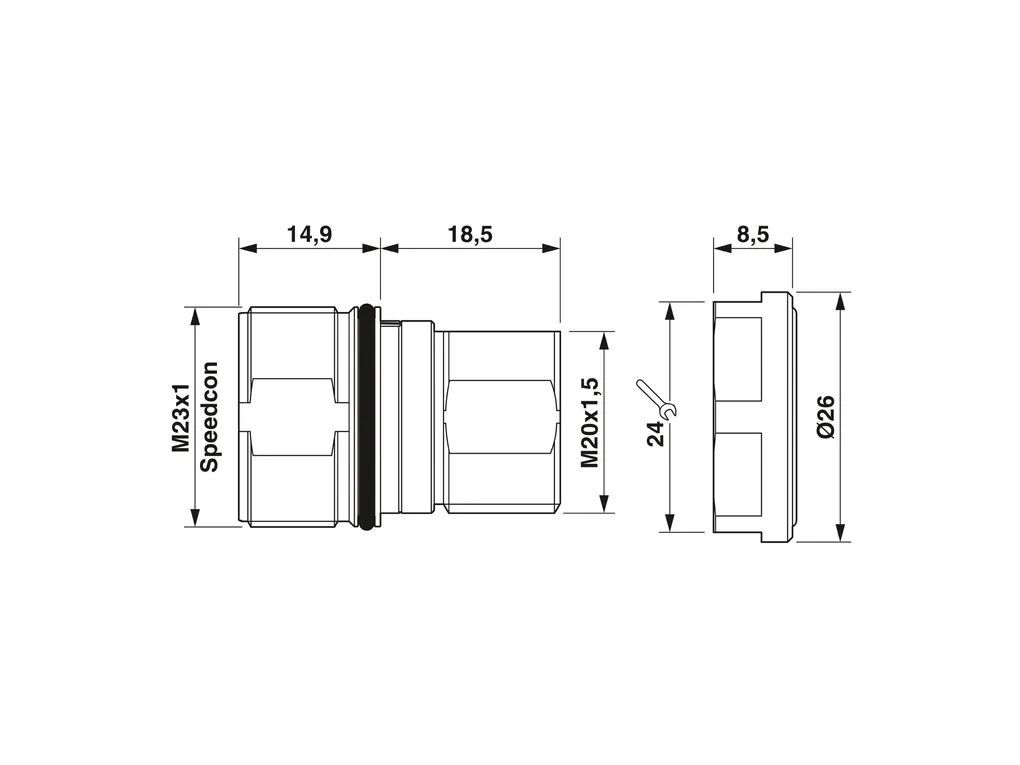

PHOENIX CONTACT 1624035
PHOENIX CONTACT 1624035
PHOENIX CONTACTNon disponibile

CA-17S1N8A6L00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Axial seal, Central fastening M20 x 1.5, can be positioned via a locking nut, coding: N
Cod. Articolo: 1624035
Cod. Fornitore: 1624035
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order 17 x 1 mm crimp contacts separately
Product propertiesProduct type: Circular connectors (device side)
Material specificationsFlammability rating according to UL 94: V0
ConnectorConnection 1
Head design: Socket
Insulating body
Note: Order information: Order crimp contacts Ø 1 mm separately
for max. connection cross section
Coding: N
Insulation body material: PA 6.6
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 17
Direction of rotation: Standard
Connection profile: 17
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage Signal contact: 48 VAC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00035.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12720.pdf

Technical_drawing_17733.pdf
