PHOENIX CONTACT 1624018
PHOENIX CONTACT 1624018
PHOENIX CONTACTNon disponibile

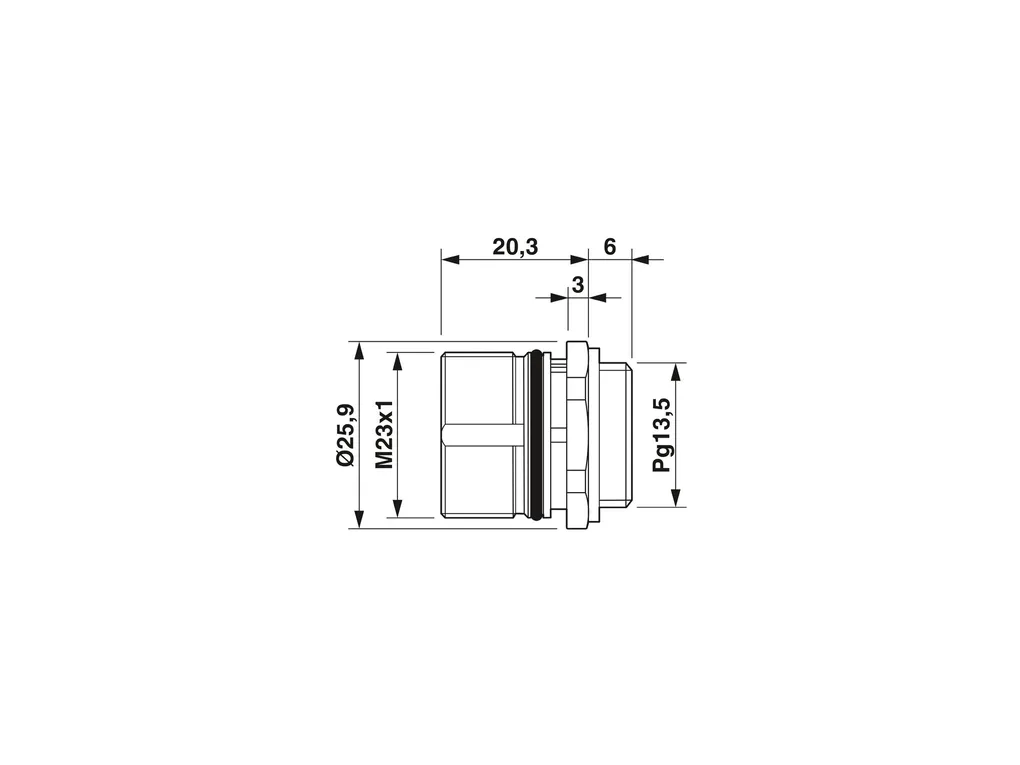

CA-1RP1N8A6Z00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 16+2+FE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial seal, Central fastening Pg13,5, coding: N
Cod. Articolo: 1624018
Cod. Fornitore: 1624018
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts 16 x Ø 1 mm, 2 x Ø 1.5 mm, 1 x Ø 1.5 (PE) separately
Product propertiesProduct type: Circular connectors (device side)
Material specificationsFlammability rating according to UL 94: V0
ConnectorInsulating body
Note: Order information: Order crimp contacts 16x Ø 1mm, 2x Ø 1.5mm, 1x Ø 1.5mm (FE, first) separately
for max. connection cross section
Coding: N
Insulation body material: PA 6.6
Insertion/withdrawal cycles: 100
Connection method: Crimp connection
Contact switching type: Pin
Application: Signal
Number of positions: 19
Direction of rotation: Standard
Connection profile: 16+2+FE
Contact diameter Power contacts: 1.5 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 10 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: II
III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage Signal contact: 48 VAC
Installation height: 2000 m
Housing
Order information:: If necessary, order locking nut separately
Housing material: CuZn
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00057.pdf

Manufacturer_declaration_05486.pdf

Technical_drawing_17718.pdf
